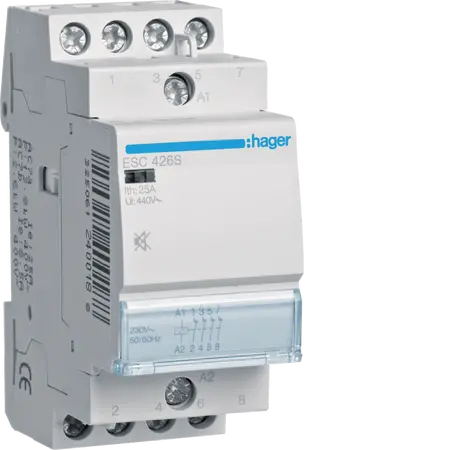

Humfree Contactor 25A | 4NC | 230V 50/60Hz | Compact Design by Hager

BRAND: :hager

SKU: ESC426S

$109.60 List price: $140.20

+ −

30 Days Return Delivery Options

Humfree contactor with 25A rating and 4NC contacts—ideal for residential and light commercial systems. Built for reliability, with compact design and efficient performance.

Description
Attachments

Product Name/Title: Humfree Contactor 25A, 4NC, 230V~50/60Hz

Brand: Hager

SKU: ESC426S

Alternatively Known As: Hager Humfree Contactor

Technical Specifications

Type of contacts: 4NC
Number of contacts: 4
Cross-section flexible conductor: 1 - 6 mm²
Cross-section rigid conductor: 1 - 10 mm²
Rated current: 25 A
Number of modules: 2
Frequency: 50 - 60 Hz
Rated impulse withstand voltage Uimp: 4000 V
Rated insulation voltage Ui: 440 V
Command voltage AC: 230 - 230 V
Command voltage DC: 0 - 0 V
Operating temperature: -10 - 50 °C
Storage/transport temperature: -40 - 80 °C
Number of mechanical operations: 100000
Electric endurance in number of cycles: 30000
Total power loss under IN: 6 W
Inrush power absorbed: 3.20 VA
Height: 83 mm
Width: 35.75 mm
Depth: 60 mm
Nominal tightening torque: 1.20 - 1.20 Nm
With switch for manual switch: No
Dimensions (H x L x W): 83mm x 60mm x 35.75mm
Weight: 0.2 kg

Key Features

Reliable 4NC contact design.
Designed for non-intensive operational use.
Compact and sturdy construction.

Professional Installation Requirements

Installation by a qualified electrician is recommended for safe and optimal operation.

Applications

Ideal for use in residential and light commercial electrical systems where non-intensive applications are required.

Standards & Compliance

Complies with relevant Australian standards for safety and performance.

Environmental Benefits

Consistent efficient performance leading to minimal energy wastage.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Humfree Contactor is available now for immediate purchase, perfect for light residential and commercial applications.

ESC426S (ESC426S, 152 Kb) [Download]

reach_declaration_ESC426S6.pdf (reach_declaration_ESC426S6.pdf, 103 Kb) [Download]

rohs_declaration_ESC426S6.pdf (rohs_declaration_ESC426S6.pdf, 104 Kb) [Download]

(CONTACTORS.pdf, 197 Kb) [Download]

(DECLARATION_21_3001_09_21.pdf, 386 Kb) [Download]
