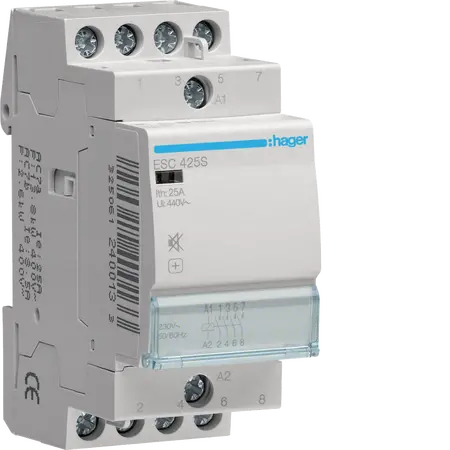

Humfree Contactor 25A 4NO | 230V 50/60Hz | Low Power Loss | Hager

BRAND: :hager

SKU: ESC425S

$105.90 List price: $135.50

+ −

30 Days Return Delivery Options

Humfree contactor with 25A rating and 4NO contacts—ideal for residential and commercial electrical installations. Built for reliability, supporting both flexible and rigid conductors with low power loss.

Description
Attachments

Product Name/Title: Humfree Contactor 25A, 4NO, 230V~50/60Hz

Brand: Hager

SKU: ESC425S

Alternatively Known As: ESC425S Humfree Contactor

Technical Specifications

Connection Type of contacts: 4NO
Number of contacts: 4
Cross-section flexible conductor: 1 - 6 mm²
Cross-section rigid conductor: 1 - 10 mm²
Rated current: 25 A
Number of modules: 2
Frequency: 50 - 50 Hz
Rated impulse withstand voltage Uimp: 4000 V
Rated insulation voltage Ui: 440 V
Command voltage AC: 230 - 230 V
Command voltage DC: 0 - 0 V
Operating temperature: -10 - 50 °C
Storage/transport temperature: -40 - 80 °C
Number of mechanical operations: 100000
Electric endurance in number of cycles: 30000
Total power loss under IN: 9 W
Inrush power absorbed: 3,20 VA
Height: 83 mm
Width: 35,75 mm
Depth: 60 mm
Number of NO contacts: 4
Number of NC contacts: 0
With switch for manual switch: No
Nominal tightening torque: 1,20 - 1,20 Nm
Safety hint: Humfree contactors are not suitable for intensive use cases (powered 24/7) and in these cases industrial contactors must be used.
Dimensions (H x L x W): 83mm x 60mm x 35.75mm
Weight: 0.3 kg

Key Features

Reliable contactor solution for various applications
Supports both flexible and rigid conductors
Operates with low power loss and excellent endurance
Designed for optimal performance within specified temperature range

Professional Installation Requirements

Professional installation by a qualified electrician is recommended.

Applications

Residences with specific electrical requirements
Commercial settings requiring robust contactor solutions

Standards & Compliance

Designed to meet applicable Australian safety standards.

Environmental Benefits

Minimized power loss during operation

Warranty Information

1 year warranty against manufacturing defects.

Available Now

Available for immediate purchase. Ideal for residential and commercial electrical installations.

ESC425S (ESC425S, 173 Kb) [Download]

reach_declaration_ESC425S6.pdf (reach_declaration_ESC425S6.pdf, 103 Kb) [Download]

rohs_declaration_ESC425S6.pdf (rohs_declaration_ESC425S6.pdf, 104 Kb) [Download]

(CONTACTORS.pdf, 197 Kb) [Download]

(DECLARATION_21_3001_09_21.pdf, 386 Kb) [Download]
