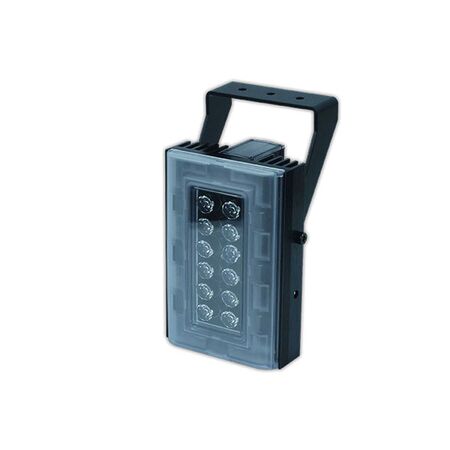

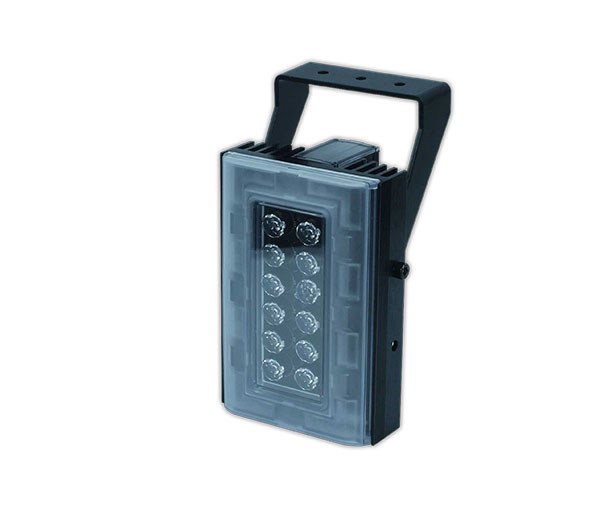

Hybrid IR and White Light Illuminator 850nm Motion-Activated IP66 Ness
Ness hybrid IR and white light illuminator features 850nm, motion activation and IP66 rating. Ideal for CCTV night vision installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Digital Watchdog DW-ILHYBIP850, IP IR Illuminator, CCTV Hybrid Illuminator, Outdoor IR and White Light CCTV Illuminator
Technical Specifications
- Model: DW-ILHYBIP850
- Illumination Type: Hybrid infrared and white light LED
- IR Wavelength: 850nm, semi-covert with faint red glow
- White Light Output: 1800 lm+
- White Light Colour Temperature: Approximately 6000K
- White Light Colour Rendering Index: CRI >70
- IR Coverage: Up to 187m, depending on lens angle
- White Light Coverage: Up to 114m, depending on lens angle
- Beam Angles: 10° circular, 30°, 60° and 95° elliptical
- Input: PoE+ compliant with IEEE 802.3at
- Power Consumption: 26W
- Photocell Adjustment: Software adjustable from 20–70 lux
- Illumination Adjustment: Software adjustable from 10%–100% with pulse modes
- Operating Temperature: -50°C to 60°C
- Ingress Protection: IP66 in accordance with IEC/EN 60529
- Impact Protection: IK09 in accordance with IEC/EN 62262
- Remote Access: Built-in web browser interface; compatible with DW Spectrum IPVMS
- Construction: Black anodised aluminium extrusion with polycarbonate front window
- Mount: Powder-coated stainless steel wall mount included
- Manufacturer Certifications: CE and FCC Class B
- Dimensions (H x L x W): 110mm x 161mm x 78mm
- Weight: 1.35 kg
Key Features
- Combines 850nm infrared illumination with deterrent white light
- Motion-activated operation for responsive CCTV night-time lighting
- Interchangeable lens pack supports multiple beam profiles
- CleanView hydrophobic coating helps repel dust, water and grease
- Remote adjustment of photocell and illumination levels
- High-efficiency Dual-Core LED technology with integral current limiting
- Built-in shock sensor and pressure-equalisation vent
- Suitable for outdoor surveillance and monitoring applications
- IP66-rated enclosure for dust-tight and water-resistant outdoor use
- PoE+ connectivity simplifies power and network installation
Professional Installation Requirements
- Installation should be performed by a suitably qualified security, network or electrical technician. Use an IEEE 802.3at PoE+ injector or switch, confirm network and power compatibility, and mount the unit securely for the intended outdoor environment.
Applications
- CCTV night vision enhancement
- Outdoor security camera installations
- Perimeter surveillance and monitoring
- Commercial and industrial security systems
- Car parks, driveways and building approaches
- Motion-triggered intruder deterrent lighting
Standards & Compliance
- AS/NZS 60598.1:2025 is the relevant Australian/New Zealand general standard for luminaires; the available product documentation identifies CE and FCC Class B certification but does not state AS/NZS 60598.1 compliance.
- IP66 rating is specified in accordance with IEC/EN 60529.
Environmental Benefits
- High-efficiency LED illumination provides substantial light output from a specified 26W power draw.
- Motion activation can reduce unnecessary operating time compared with continuously illuminated security lighting.
- Durable aluminium construction and IP66 environmental protection can support a longer service life and reduce replacement waste.
- Aluminium and polycarbonate components can be directed to appropriate recycling streams at end of service life.
Warranty Information
Ness Corporation lists a 3-year warranty from date of purchase for Digital Watchdog cameras and recorders and lists this product with a 3-year warranty on its Australian product page. The Digital Watchdog manufacturer datasheet and model warranty listing state a 2-year warranty; confirm the applicable warranty terms with the Australian supplier before purchase.
Available Now
Available through Ness Corporation and authorised Australian security distributors, subject to current distributor stock.
