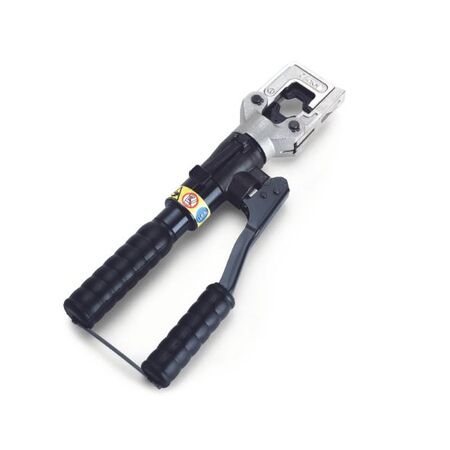

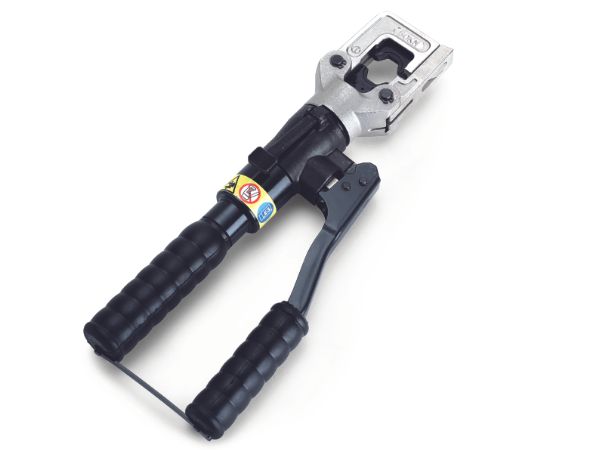

Hydraulic Crimper 5 Tonne Hand Operated HT51 Cembre
Cembre HT51 hand operated hydraulic crimper features 5 tonne crimping force for copper and aluminium lugs and links. Ideal for LV cable termination on site.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: HT51 Hydraulic Crimping Tool, 50 kN Cable Lug Crimper, Manual Hydraulic Cable Crimper
Technical Specifications
- Nominal Crimping Force: 50 kN, approximately 5 tonnes
- Crimping Range: 4–240 mm²
- Rated Operating Pressure: 600 bar
- Crimping Geometry: Hexagonal, indent, oval and radial
- Hydraulic System: Two-speed operation with automatic changeover
- Head: Openable closed head, rotatable through 180°
- Pressure Control: Maximum-pressure relief valve
- Pressure Release: Manual quick-release mechanism
- Operation: Hand operated
- Die Compatibility: Standard die sets compatible with other CEMBRE 50 kN tools and heads
- Recommended Oil: ENI Arnica ISO 32, Shell Tellus TX 32 or equivalent
- Included Configuration: HT51 tool; die sets and plastic case depend on kit version
- Dimensions (H x L x W): 380mm x 130mm x 60mm
- Weight: 2.75 kg
Key Features
- 50 kN hydraulic crimping force for electrical compression connectors
- Suitable for conductors and cable lugs from 4 to 240 mm²
- Designed for copper and aluminium electrical connectors
- Openable, 180° rotating head for access in confined spaces
- Two-speed hydraulic operation for faster positioning and crimping
- Ergonomic handle with self-returning movable handle
- Manual pressure release and pressure relief valve for controlled operation
- Suitable for low-voltage cable termination and electrical panel work
- Compact design for field and on-site use
Professional Installation Requirements
- No installation is required for the tool itself. Cable termination should be performed by a suitably qualified electrician using the correct CEMBRE dies and connector manufacturer instructions, with the completed low-voltage installation carried out in accordance with applicable Australian requirements including AS/NZS 3000.
Applications
- Low-voltage cable termination
- Crimping copper and aluminium cable lugs and compression connectors
- Electrical panel and switchboard connections
- Commercial and industrial electrical maintenance
- On-site electrical installation and cable repair work
Standards & Compliance
- AS/NZS 3000: Wiring Rules, relevant to the completed low-voltage electrical installation and cable termination work; specific HT51 product certification to this standard was not identified
Environmental Benefits
- Manual operation requires no mains electricity, battery or fuel during use
- Durable metal construction can support extended service life and reduce tool replacement waste
- Metal components are generally recoverable through appropriate metal recycling at end of life
- Compatible replacement die sets may extend the usable life of the tool
Warranty Information
CEMBRE directs customers to its general terms and conditions of sale for warranty details. A specific warranty duration for the HT51 hydraulic crimper was not identified in the published product information; coverage is subject to CEMBRE terms and the authorised distributor’s conditions.
Available Now
Available through CEMBRE and authorised electrical, tooling and industrial distributors in Australia.
