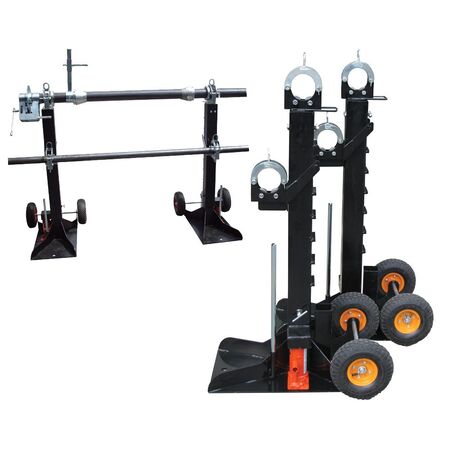

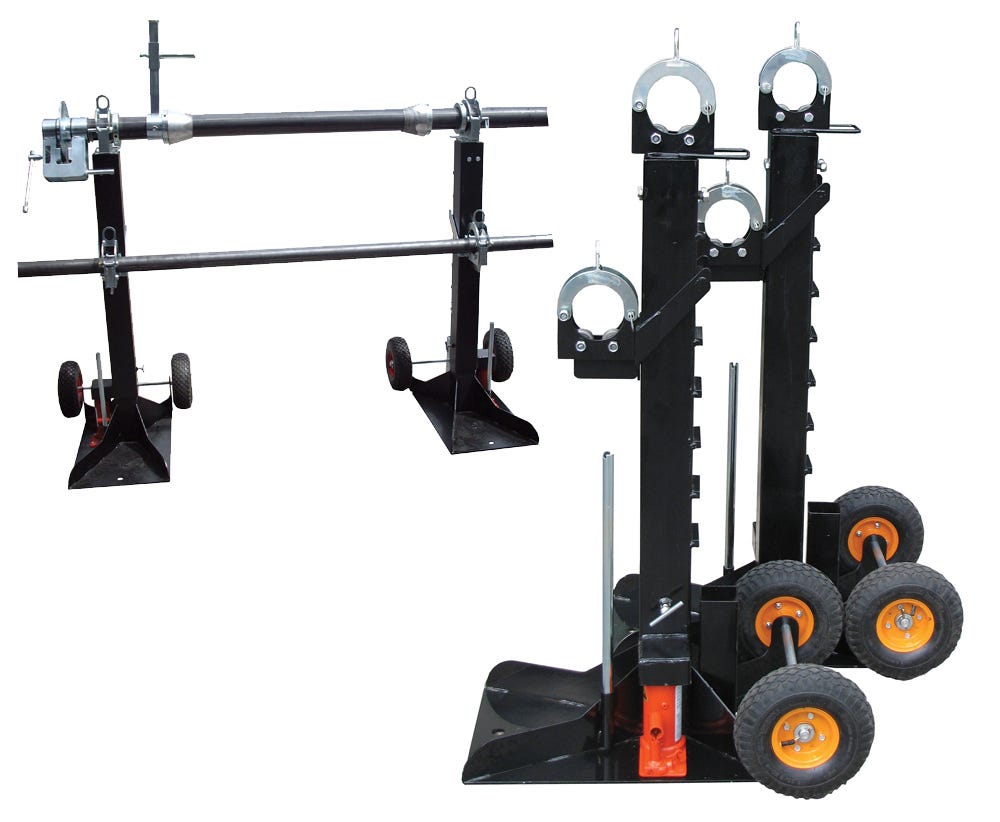

Hydraulic Drum Jack Set 8T WWL Max | Lifts Up to 8 Tonnes | Optional Disc Brake | by Cabac
The Hydraulic Drum Jack Set 8T WWL Max is designed for lifting and supporting cable drums up to 8 tonnes, making it ideal for cable installation projects. With a robust construction and an optional disc brake feature, this jack ensures safe handling on industrial and construction sites. Professional installation is recommended for optimal safety and performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Maximum Working Load Limit (WWL): 8 tonnes
- Drum Radius: 650 mm
- Drum Diameter: 3300 mm
- Drum Width: 2000 mm
- Drum Weight Capacity: 8 tonnes
- Drum Shaft Diameter: 90 mm OD axle standard
- Jack Width: 460 mm
- Jack Length: 1350 mm
- Jack Height: 250 mm
- Set Weight: 156 kg
- Dimensions (H x L x W): 330mm x 2000mm x 650mm
- Weight: 156 kg
Key Features
- Works with bottle jacks fitted to the base to lift the drum off the ground
- Suitable for cable drums up to 8 tonnes
- Optional disc brake feature for added safety
- Comes with a 90mm outer diameter axle as standard
Professional Installation Requirements
- Professional use recommended with trained personnel for safe operation and setup.
Applications
- Lifting and supporting cable drums up to 8 tonnes during installation
- Used in cable installation projects for safe handling of heavy drums
- Suitable for industrial and construction sites requiring cable drum management
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Reduces manual handling injuries and improves safety during cable drum installation
- Durable construction extends product life, reducing waste and replacement frequency
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Cabac Hydraulic Drum Jack Set 8T WWL Max is available for immediate purchase, ideal for cable installation and industrial lifting applications.
