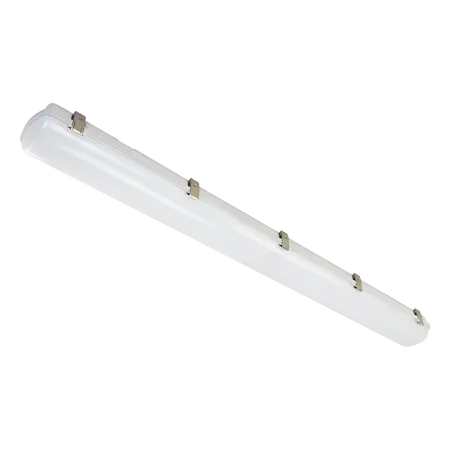

Hydro-120 DALI Emergency LED Batten 15/30W IP65 Tri-Colour Domus

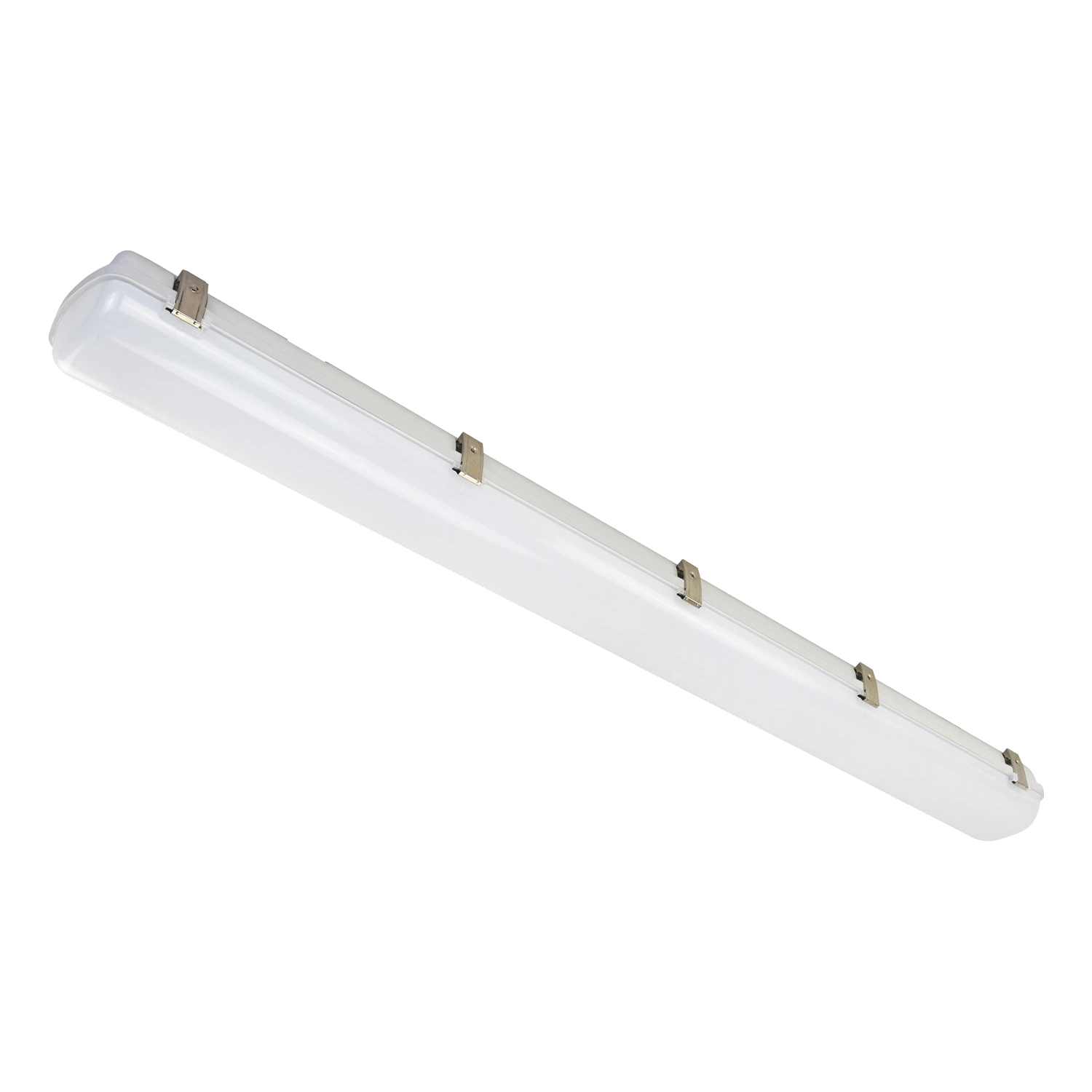

Domus Hydro-120 DALI emergency weatherproof LED batten, 1200mm, 15/30W selectable, IP65, tri-colour.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: HYDRO-120-EM-DALI, Domus Hydro Emergency Batten, DALI Emergency Weatherproof LED Batten
Technical Specifications
- Model: HYDRO-120-EM-DALI
- DALI Control: DALI dimming and control interface
- Power: 15W/30W switchable
- Colour Temperature: 3000K/4000K/5000K switchable
- Lumen Output at 15W: 2350lm at 3000K, 2400lm at 4000K, 2400lm at 5000K
- Lumen Output at 30W: 4050lm at 3000K, 4250lm at 4000K, 4150lm at 5000K
- Emergency Operation: Maintained or non-maintained
- Emergency Duration: 120 minutes rated duration
- Battery: 6.4V LiFePO4, 1500mAh
- Battery Charging Time: 7 hours
- Input Voltage: 240V AC
- Ingress Protection: IP65
- Impact Rating: IK08
- CRI: ≥80
- Beam Angle: 120°
- LED Type: SMD LED
- Rated Life: 50,000 hours
- Mounting: Surface mounted or suspended
- Construction: High-impact polycarbonate body with frosted polycarbonate diffuser
- Dimensions (H x L x W): 90mm x 1263mm x 129mm
- Weight: 2.0 kg
Key Features
- Selectable 15W or 30W operating power
- Tri-colour selectable between warm white, neutral white and white
- Integrated DALI control for commercial lighting systems
- Maintained and non-maintained emergency operation
- 120-minute emergency duration
- LiFePO4 emergency battery technology
- IP65 weatherproof construction for indoor and outdoor applications
- IK08 impact-resistant housing
- Quick-fix mounting system
- Suitable for surface or suspended installation
- Direct replacement for traditional T8 and T5 fluorescent battens
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Isolate the 240V AC supply before installation and connect the DALI control wiring in accordance with the manufacturer's installation instructions and applicable Australian wiring requirements.
Applications
- Commercial emergency lighting systems
- Underground car parks
- Basements and garages
- Outdoor covered areas
- Industrial and warehouse facilities
- Retail, office and residential common areas
- Buildings requiring maintained or non-maintained emergency luminaires
Standards & Compliance
- AS/NZS 2293.3:2018 for emergency luminaires and exit signs
- AS 60598.2.22 for luminaires for emergency lighting
- AS/NZS 3000 for electrical installation and wiring requirements
Environmental Benefits
- LED technology provides lower energy consumption than traditional fluorescent battens
- 50,000-hour rated LED life can reduce replacement frequency and associated waste
- LiFePO4 battery technology supports extended emergency-system service life
- Polycarbonate housing and diffuser provide durable construction that can extend product service life
- Selectable power and colour temperature allow output to be matched to application requirements, helping avoid unnecessary energy use
Warranty Information
Domus Lighting warranty: 5-year replacement warranty for residential emergency lighting and 4-year replacement warranty for commercial emergency lighting, with 4-year battery replacement coverage. Warranty eligibility requires installation by a licensed electrician and compliance with the installation instructions.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
