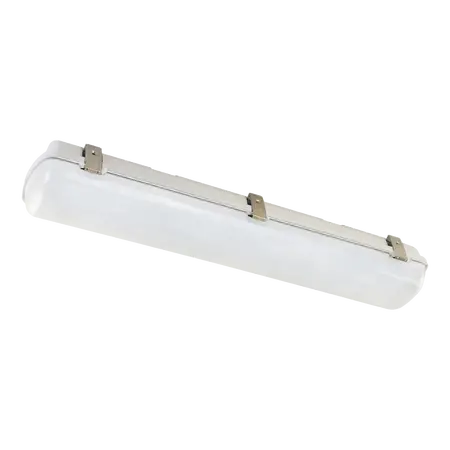

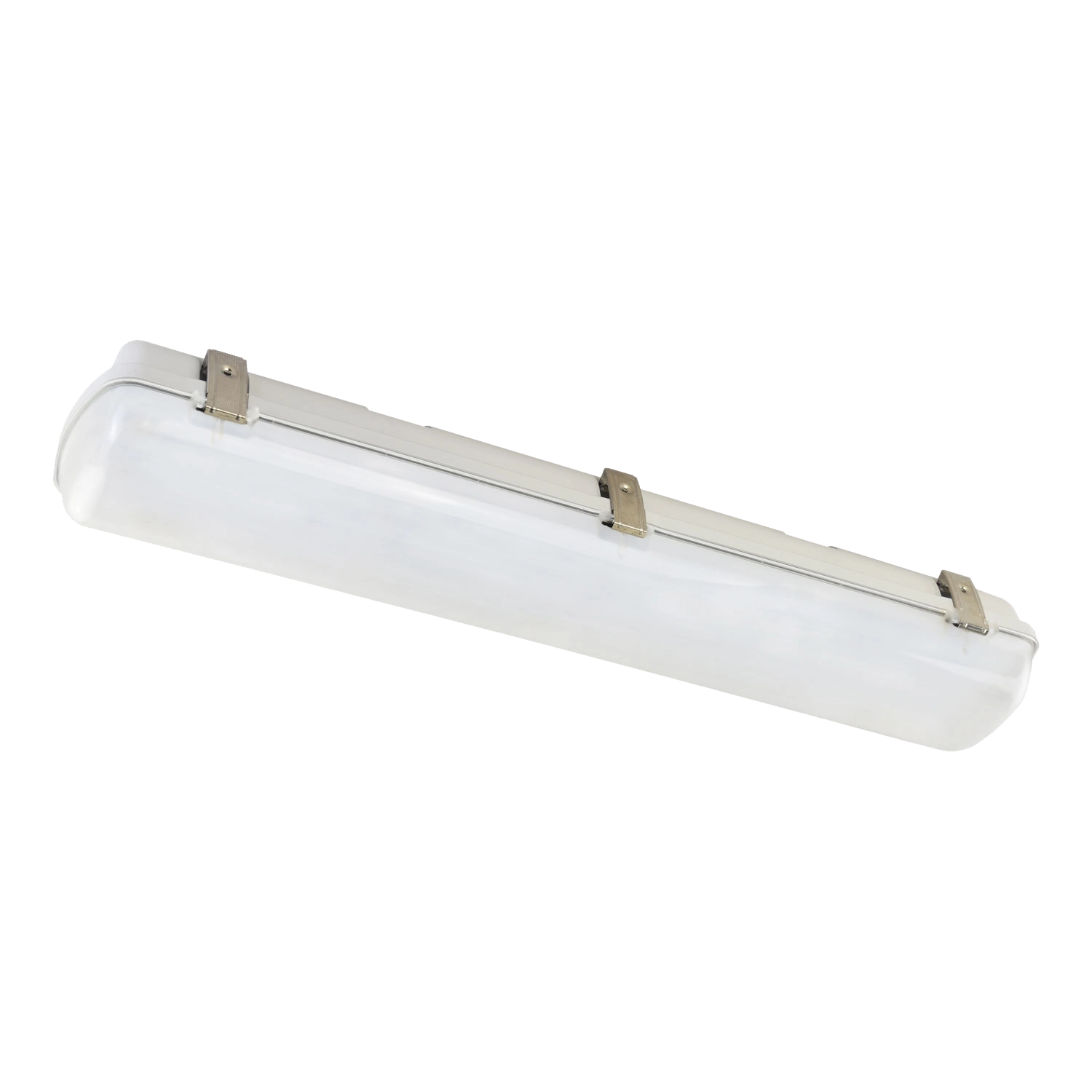

Hydro-60 DALI Emergency LED Batten 7.5/15W IP65 Tri-Colour Domus
Domus Hydro-60 DALI emergency weatherproof LED batten, 600mm, 7.5/15W selectable, IP65, tri-colour.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus Hydro-60-EM-DALI, Hydro 60 Emergency Weatherproof LED Batten, DALI Emergency Batten Light
Technical Specifications
- Model: HYDRO-60-EM-DALI
- Item Number: 67462
- Input Voltage: 240V AC
- Power: 7.5W/15W selectable
- Colour Temperature: 3000K/4000K/5000K selectable
- Lumen Output at 7.5W: 950lm/980lm/950lm
- Lumen Output at 15W: 1850lm/1900lm/1850lm
- Emergency Operation: Maintained or non-maintained
- Emergency Battery: LiFePO4, 6.4V, 1500mAh
- Charging Time: Approximately 7 hours
- Emergency Duration: 120 minutes
- CRI: ≥80
- Beam Angle: 120°
- LED Type: SMD
- DALI Control: Yes
- Dimming: DALI
- Ingress Protection: IP65
- Impact Protection: IK08
- Lifespan: 50,000 hours
- Installation: Surface mounted or suspended
- Dimensions (H x L x W): 90mm x 653mm x 129mm
- Weight: 1.2 kg
Key Features
- Selectable 7.5W or 15W output
- Tri-colour selectable 3000K, 4000K or 5000K colour temperature
- DALI dimming and control compatibility
- 120-minute emergency operation
- Maintained and non-maintained emergency modes
- High-impact polycarbonate body with frosted polycarbonate diffuser
- IP65 weatherproof construction
- Supplied with stainless steel clips and additional grey polycarbonate clips
- Quick-fix installation system
- Suitable for indoor and covered outdoor environments
Professional Installation Requirements
- Installation and electrical connection must be completed by a licensed electrician in accordance with the supplied installation instructions, AS/NZS 3000 and applicable emergency lighting requirements. Emergency lighting systems should be commissioned and maintained in accordance with AS/NZS 2293.
Applications
- Underground car parks
- Basements and plant rooms
- Garages and covered outdoor areas
- Commercial and industrial facilities
- Residential common areas
- Emergency illumination in buildings requiring maintained or non-maintained operation
Standards & Compliance
- AS/NZS 2293.3:2018 for emergency luminaires and exit signs
- AS/NZS 2293 series for emergency lighting design, installation, operation and maintenance
Environmental Benefits
- LED technology provides lower energy consumption than traditional fluorescent battens
- Selectable wattage supports efficient lighting levels for different applications
- 50,000-hour rated life can reduce replacement frequency and associated waste
- Polycarbonate construction is durable and can extend product service life
- Emergency operation provides illumination only when required during power failure conditions
Warranty Information
Domus Lighting warranty: 5-year replacement warranty for residential emergency lighting and 4-year replacement warranty for commercial emergency lighting, including 4-year battery replacement coverage, subject to the current Domus warranty statement, licensed electrician installation and other applicable conditions.
Available Now
Available through Domus Lighting and authorised Australian lighting wholesalers and distributors.
