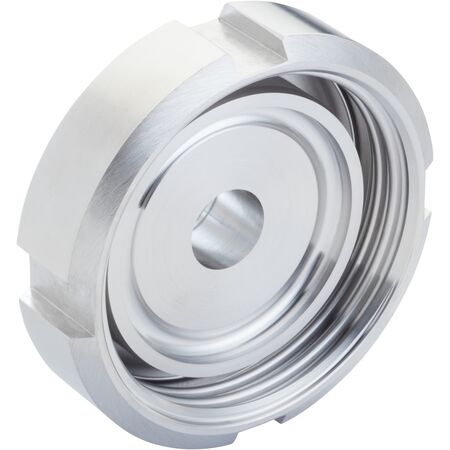

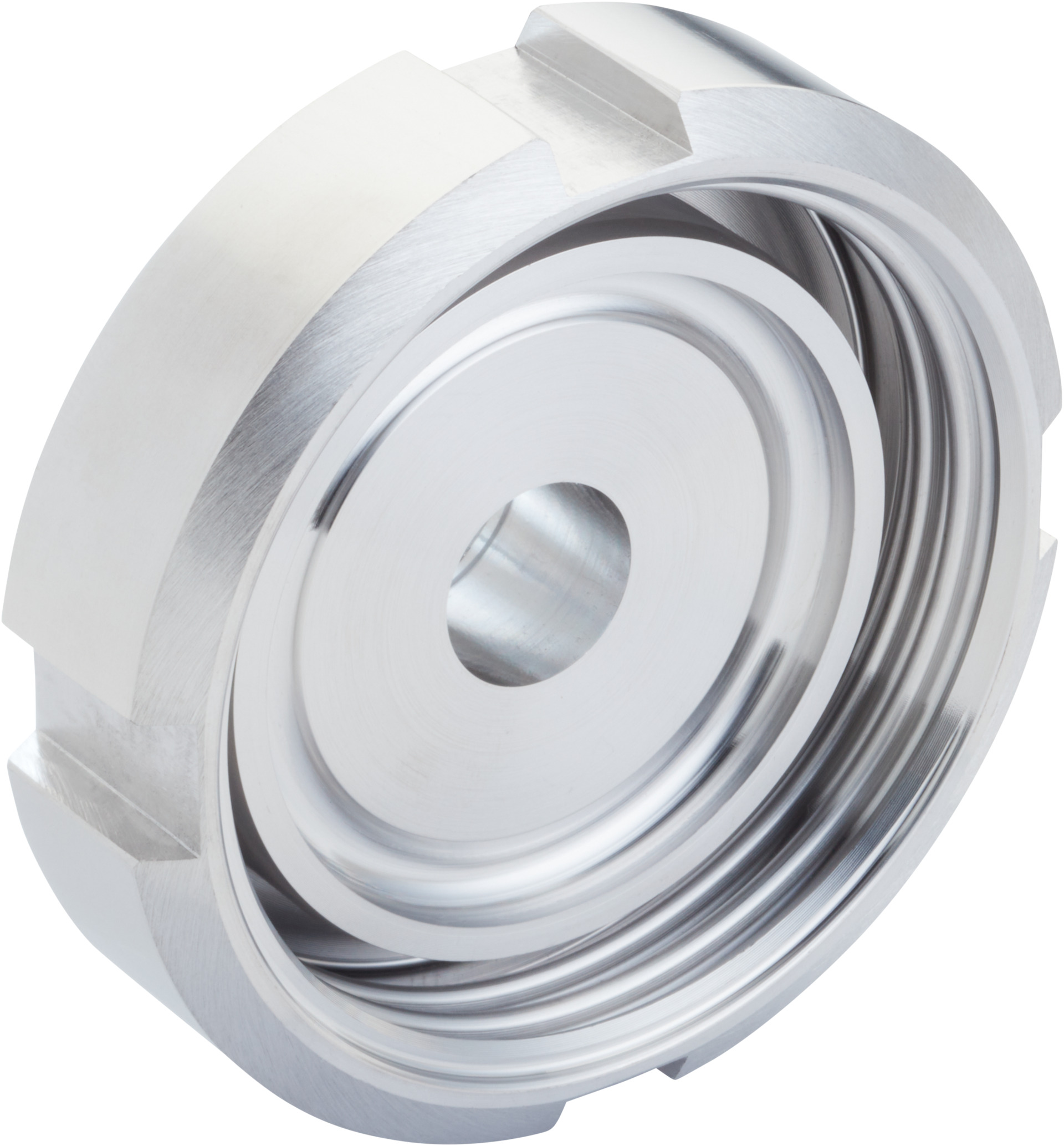

HYGADAPT-P.XE2 Mounting System | DN40 Coupling | EHEDG Approved | Ra < 0.76 µm Finish | by SICK
The HYGADAPT-P.XE2 mounting system is designed for hygienic industrial piping applications, featuring a DN40 coupling that complies with DIN11864-1 standards. With a surface finish of Ra < 0.76 µm and EHEDG approval, it ensures optimal hygiene in food, beverage, and pharmaceutical processing. Ideal for professionals seeking reliable and durable flange connections in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HYGADAPT-P.XE2 Mounting System | DN40 Coupling | EHEDG Approved | Ra < 0.76 µm Finish | by SICK
Brand: SICK
SKU: 2144179
Alternatively Known As: Hygienic flange coupling DN40, DIN flange coupling, Stainless steel pipe flange adapter
Technical Specifications
- Coupling size: DN40
- Standard: DIN11864-1, form A
- Pipe compatibility: 41 x 1.5 mm, material 1.4435 stainless steel
- Surface roughness: Ra < 0.76 µm
- EHEDG approved
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 1.2 kg
Key Features
- Coupling DN40 to DIN, form A, DIN11864-1 standard
- Compatible with 41 x 1.5 pipe / 1.4435 stainless steel
- Surface finish Ra < 0.76 µm for hygienic applications
- EHEDG approved for hygienic design
Professional Installation Requirements
- Installation by qualified personnel familiar with hygienic piping systems and DIN flange standards is recommended.
Applications
- Industrial piping systems requiring hygienic flange connections
- Food and beverage processing plants
- Pharmaceutical manufacturing facilities
- Chemical processing industries
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- EHEDG approval ensures hygienic design reducing contamination and waste
- Durable stainless steel construction promotes long product life and recyclability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty details.
Available Now
The HYGADAPT-P.XE2 mounting system coupling is available for immediate purchase, ideal for hygienic industrial piping applications.
