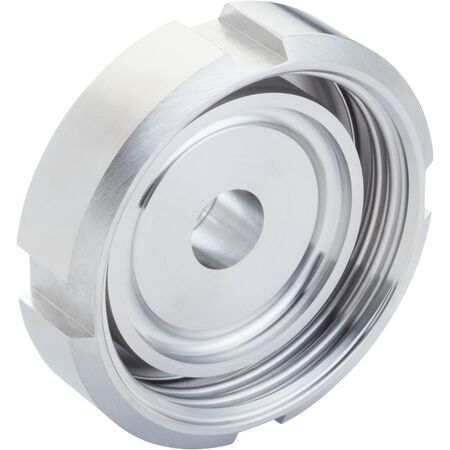

HYGADAPT-P.XE2 Mounting System DN40 Coupling EHEDG Approved SICK
The HYGADAPT-P.XE2 mounting system is designed for hygienic industrial piping applications, featuring a DN40 coupling that complies with DIN11864-1 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HYGADAPT-P.XE2 Mounting System | DN40 Coupling | EHEDG Approved | Ra < 0.76 µm Finish | by SICK
Brand: SICK
SKU: 2144179
Alternatively Known As: Hygienic flange coupling DN40, DIN flange coupling, Stainless steel pipe flange adapter
Technical Specifications
- Coupling size: DN40
- Standard: DIN11864-1, form A
- Pipe compatibility: 41 x 1.5 mm, material 1.4435 stainless steel
- Surface roughness: Ra < 0.76 µm
- EHEDG approved
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 1.2 kg
Key Features
- Coupling DN40 to DIN, form A, DIN11864-1 standard
- Compatible with 41 x 1.5 pipe / 1.4435 stainless steel
- Surface finish Ra < 0.76 µm for hygienic applications
- EHEDG approved for hygienic design
Professional Installation Requirements
- Installation by qualified personnel familiar with hygienic piping systems and DIN flange standards is recommended.
Applications
- Industrial piping systems requiring hygienic flange connections
- Food and beverage processing plants
- Pharmaceutical manufacturing facilities
- Chemical processing industries
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- EHEDG approval ensures hygienic design reducing contamination and waste
- Durable stainless steel construction promotes long product life and recyclability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty details.
Available Now
The HYGADAPT-P.XE2 mounting system coupling is available for immediate purchase, ideal for hygienic industrial piping applications.
