Hygienic Flange Adapter DIN 11851 Conical Coupling DN40 Size SICK
The Hygienic Flange Adapter is designed for seamless integration in food and beverage processing, pharmaceutical manufacturing, and chemical processing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

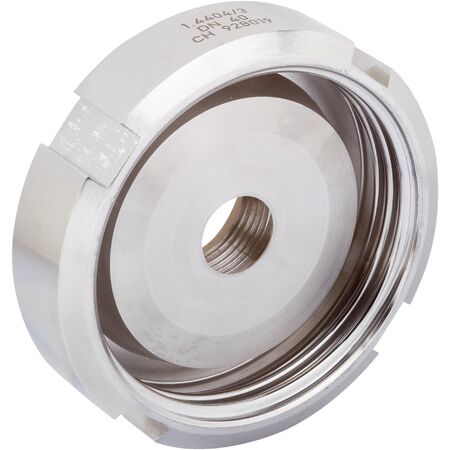

Product Name/Title: Hygienic Flange Adapter | DIN 11851 Conical Coupling | DN40 Size | Stainless Steel 1.4404 | by SICK
Brand: SICK
SKU: 2058139
Alternatively Known As: Hygienic flange adapter, DIN 11851 process connection, conical coupling adapter DN40
Technical Specifications
- Material: Stainless steel 1.4404
- Surface finish: Ra ≤ 0.8 µm
- Connection type: Conical coupling DIN 11851
- Size: DN 40
- Cap nut: Grooved
- Gasket compatibility: ASEPTO-STAR k-flex upgrade gaskets or SKS gasket set DIN 11851 EHEDG with EPDM or FKM inner gasket
- Dimensions (H x L x W): 80mm x 120mm x 100mm
- Weight: 1.5 kg
Key Features
- Hygienic process connection adapter with conical coupling (DIN 11851)
- DN 40 size with grooved cap nut
- Material 1.4404 stainless steel with surface roughness Ra ≤ 0.8 µm
- EHEDG compliant when used with ASEPTO-STAR k-flex upgrade gaskets or SKS gasket set DIN 11851 EHEDG
- Compatible with EPDM or FKM inner gaskets
Professional Installation Requirements
- Installation by qualified personnel familiar with hygienic process connections and compliance with EHEDG standards is recommended.
Applications
- Food and beverage processing
- Pharmaceutical manufacturing
- Chemical processing requiring hygienic connections
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads) for mounting system stability
Environmental Benefits
- Made from durable stainless steel for long service life reducing waste
- EHEDG compliance ensures hygienic design minimizing contamination and product loss
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK warranty policy for details.
Available Now
The SICK BEF-HA-851D40-LFP1 hygienic process connection adapter is available for immediate purchase, ideal for hygienic process system installations in food, pharmaceutical, and chemical industries.
