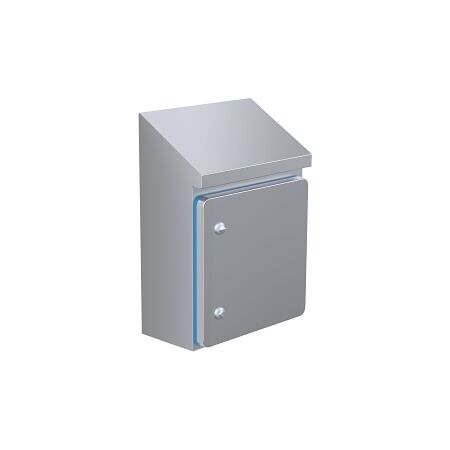

Hygienic Wall Mount Enclosure | 304 Stainless Steel | IP69 Rated | Adjustable Mounting by NHP

BRAND: NHP
SKU: HDW1428130
$3,941.50 List price: $5,233.80
Free pick up (over 25 kg)
For delivery quote message
Hygienic wall mount enclosure with 304 stainless steel construction and IP69 rating—ideal for food processing and pharmaceutical industries. Built for durability and corrosion resistance, with an adjustable mounting plate for versatile installation.

Product Name/Title: nVent HOFFMAN HDW Enclosure Wall Mount Hygienic 304 Stainless Steel H1425 1250 x W810 x D300mm

Brand: NHP

SKU: HDW1428130

Alternatively Known As: Hygienic Enclosure, Stainless Steel Cabinet, Wall Mount Enclosure

Technical Specifications
  • Material: Stainless steel V2A
  • Surface Finishing: Untreated
  • Enclosure Load Capacity: 50 kg
  • Material Thickness: 1.5 mm
  • Degree of Protection IP: IP69
  • Degree of Protection NEMA: 4X
  • Type of Lock: DIN 1/4 turn
  • Number of Doors: 1
  • Number of Locks: 3
  • Impact Strength: IK08
  • Suitable for Outdoor Set Up: Yes
  • Dimensions (H x L x W): 1425mm x 300mm x 810mm
  • Weight: 74.7 kg
Key Features
  • Constructed from hygienic 304 stainless steel for durability and corrosion resistance.
  • IP69 rated for high-pressure and high-temperature wash-downs.
  • Adjustable mounting plate for versatile installation options.
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and compliance.
Applications
  • Industrial: Suitable for hygienic environments in food processing and pharmaceutical industries.
  • Commercial: Ideal for outdoor installations requiring robust protection.
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The nVent HOFFMAN HDW Enclosure Wall Mount Hygienic 304 Stainless Steel is available now for immediate purchase, ideal for industrial and commercial applications.

HDW1428130-AU-Enclosure-Hygienic-Datasheet.pdf (HDW1428130-AU-Enclosure-Hygienic-Datasheet.pdf, 320 Kb) [Download]
