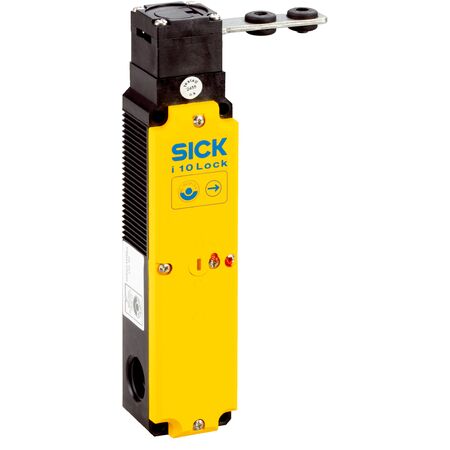

i10-E0233 Lock | Electro-Mechanical Safety Interlock | IP67 Rated | 1,300 N Locking Force | by SICK
The i10-E0233 Lock is an electro-mechanical safety interlock designed for industrial applications, featuring a robust locking force of up to 1,300 N and an IP67 rated enclosure for dust and water protection. Ideal for machine guarding and access control, this lock ensures safety compliance and reliability in manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Electro-mechanical
- Locking force Fmax: 1,300 N (EN ISO 14119)
- Locking force FZh: 1,000 N (EN ISO 14119)
- Actuation force: ≥ 10 N
- Retaining force: ≤ 20 N
- Actuation frequency: ≤ 1,200 per hour
- Actuation directions: 4
- Approach speed: ≤ 20 m/min
- B10d parameter: 3 x 10^6 switching cycles (small load)
- Type: Type 2 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Connection type: Cable gland, 3 x M20
- Conductor cross section: 0.34 mm² to 1.5 mm²
- Contamination rating: 3
- Switching principle: Slow action switching element
- Usage category: AC-15/DC-13 (IEC 60947-5-1)
- Rated operating current: 4 A (230 V AC), 4 A (24 V DC)
- Rated insulation voltage Ui: 250 V
- Rated impulse withstand voltage Uimp: 2,500 V
- Type of output: Electro-mechanical contacts
- Power consumption: ≤ 8 W
- Short-circuit protection: 4 A gG
- Switching voltage: ≥ 12 V DC
- Switching current: 1 mA (24 V DC)
- Solenoid operating voltage: 20.4 V DC to 26.4 V DC
- Switch-on time of magnet: 100%
- Housing material: Glass-fiber reinforced thermoplastic
- Mechanical life: 1 x 10^6 switching cycles
- Enclosure rating: IP67 (IEC 60529)
- Ambient operating temperature: -20°C to +55°C
- Storage temperature: -20°C to +55°C
- Dimensions (H x L x W): 120mm x 80mm x 60mm
- Weight: 0.46 kg
Key Features
- Electro-mechanical sensor principle with power to lock locking principle
- Locking force up to 1,300 N compliant with EN ISO 14119
- Multiple monitoring contacts including 2 positive action N/C solenoid and 1 N/O solenoid contacts
- Durable mechanical life of 1 million switching cycles
- IP67 rated enclosure for protection against dust and water
- Operating temperature range from -20°C to +55°C
- Low coding level actuator compliant with EN ISO 14119
- Safe state fault detection performed by connected safety logic unit
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure compliance with safety standards and proper integration with safety logic units.
Applications
- Industrial safety locking applications
- Machine guarding and access control
- Safety interlocking in manufacturing environments
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of ≤ 8 W enhances energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK i10-E0233 Lock is available for immediate purchase, ideal for industrial safety locking and access control applications.
