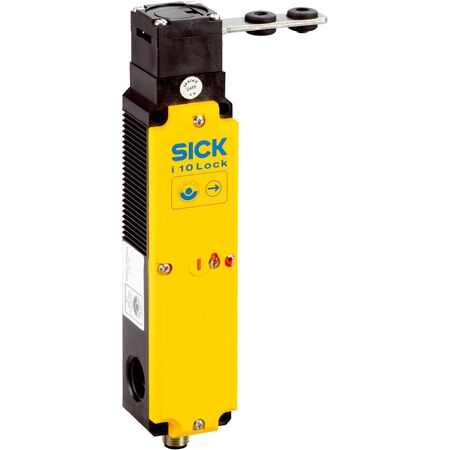

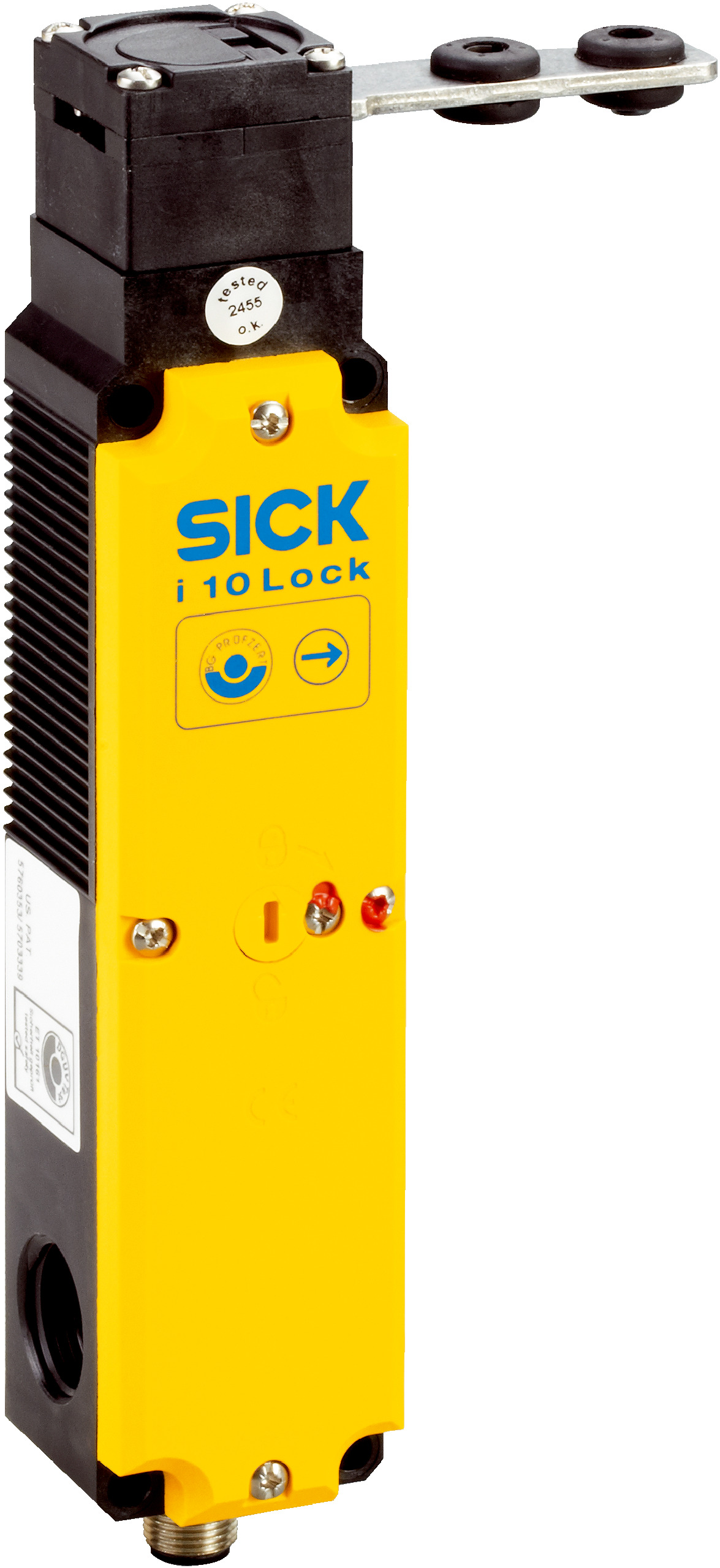

i10-E0354 Lock | Electro-Mechanical Safety Switch | IP67 Rated | 1300 N Locking Force | by SICK
The i10-E0354 Lock is an electro-mechanical safety switch designed for industrial applications, featuring a robust locking force of up to 1,300 N and an IP67 rated enclosure for harsh environments. Ideal for machinery interlocking and access control, this lock ensures safety and reliability in manufacturing and automation settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Electro-mechanical
- Locking force Fmax: 1,300 N (EN ISO 14119)
- Locking force FZh: 1,000 N (EN ISO 14119)
- Actuation force: ≥ 10 N
- Retaining force: ≤ 20 N
- Actuation frequency: ≤ 1,200 per hour
- Actuation directions: 4
- Approach speed: ≤ 20 m/min
- B10d parameter: 3 x 10^6 switching cycles (small load)
- Type: Type 2 (EN ISO 14119)
- Actuator coding level: Low coding level
- Safe state in fault: No internal fault detection; fault detection by connected safety logic
- Connection type: Plug connector, M12, 8-pin with brass coupling nut
- Contamination rating: 3
- Switching principle: Slow action switching element
- Usage category: AC-15/DC-13 (IEC 60947-5-1)
- Rated operating current: 1 A at 24 V AC/DC
- Rated insulation voltage Ui: 30 V
- Rated impulse withstand voltage Uimp: 1,500 V AC
- Type of output: Electro-mechanical contacts
- Power consumption: ≤ 8 W
- Short-circuit protection: 1 A gG
- Switching voltage: ≥ 12 V DC
- Switching current: 1 mA at 24 V DC
- Solenoid operating voltage: 20.4 V DC to 26.4 V DC
- Switch-on time of magnet: 100%
- Housing material: Glass-fiber reinforced thermoplastic
- Mechanical life: 1 x 10^6 switching cycles
- Enclosure rating: IP67 (IEC 60529)
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -20 °C to +55 °C
- Dimensions (H x L x W): 100mm x 80mm x 50mm
- Weight: 0.5 kg
Key Features
- Electro-mechanical sensor principle with power to lock mechanism
- Positive action N/C solenoid monitoring contacts and door monitoring contacts
- Locking force up to 1,300 N compliant with EN ISO 14119
- Four actuation directions with approach speed up to 20 m/min
- Safe series connection with Flexi Loop diagnostics
- IP67 rated enclosure for harsh environments
- Low coding level actuator compliant with Type 2 safety requirements
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety interlock systems and electrical safety standards.
Applications
- Industrial safety interlocking for machinery and process protection
- Access control in hazardous areas
- Safety door locking in manufacturing and automation environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption (≤ 8 W) supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK i10-E0354 Electro-Mechanical Safety Lock is available for immediate purchase, ideal for industrial safety and process protection applications.
