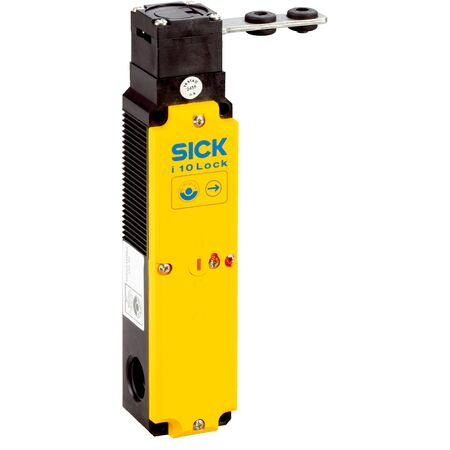

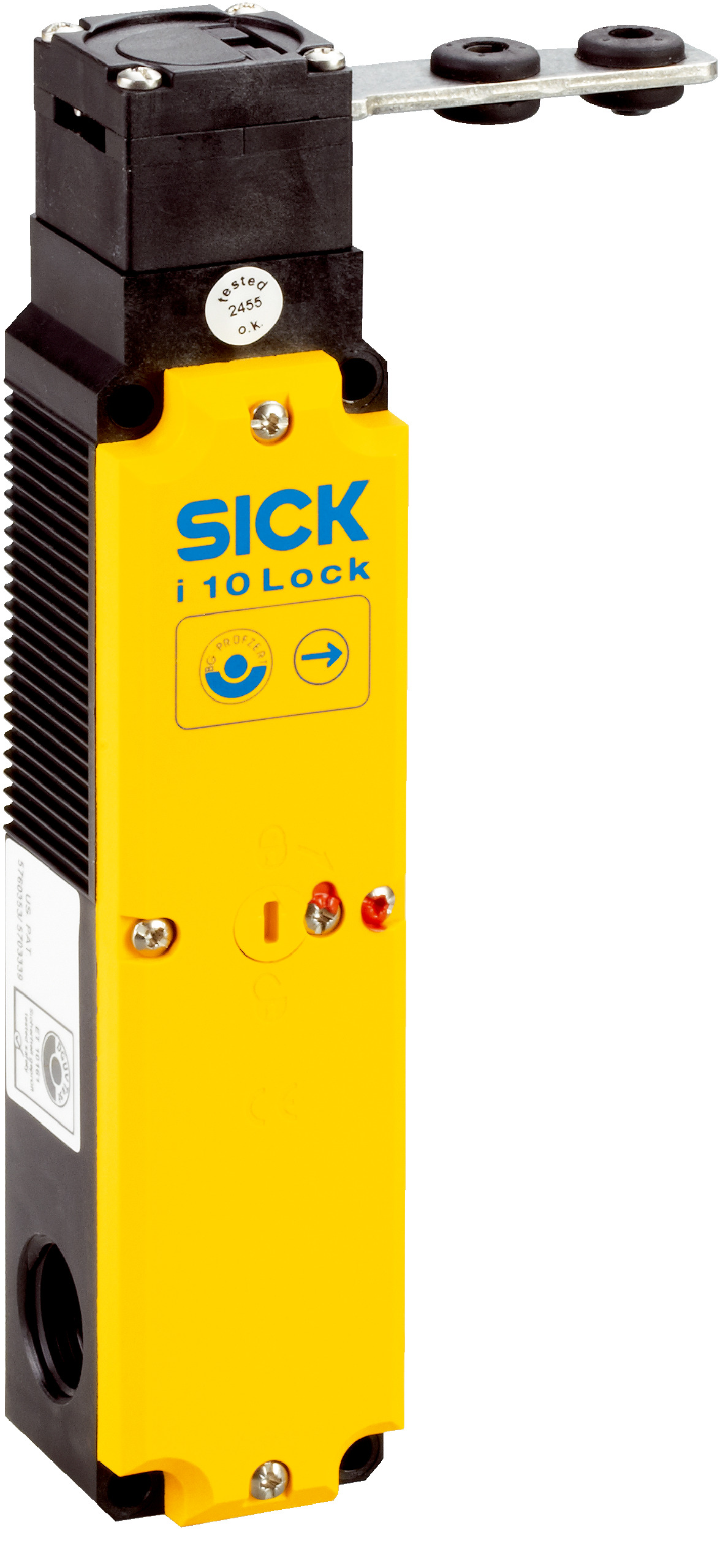

i10-M0233 Lock | Electro-Mechanical Safety Lock | IP67 Rated | 1,300 N Locking Force | by SICK
The i10-M0233 Lock is an electro-mechanical safety lock designed for industrial applications, featuring a robust locking force of up to 1,300 N and an IP67 rated enclosure for superior protection against dust and water. Ideal for safety interlocking in machinery and access control, this lock ensures compliance with safety standards while providing reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Locking force Fmax: 1,300 N (EN ISO 14119)
- Locking force FZh: 1,000 N (EN ISO 14119)
- Actuation force: ≥ 10 N
- Retaining force: ≤ 20 N
- Actuation directions: 4
- Approach speed: ≤ 20 m/min
- B10d parameter: 3 x 10^6 switching cycles (small load)
- Type: Type 2 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Connection type: Cable gland, 3 x M20
- Conductor cross section: 0.34 mm² to 1.5 mm²
- Contamination rating: 3
- Usage category: AC-15/DC-13 (IEC 60947-5-1)
- Rated operating current: 4 A (230 V AC), 4 A (24 V DC)
- Rated insulation voltage Ui: 250 V
- Rated impulse withstand voltage Uimp: 2,500 V
- Power consumption: ≤ 8 W
- Short-circuit protection: 4 A gG
- Switching voltage: ≥ 12 V DC
- Switching current: 1 mA (24 V DC)
- Solenoid operating voltage: 20.4 V DC to 26.4 V DC
- Switch-on time of magnet: 100%
- Mechanical life: 1 x 10^6 switching cycles
- Enclosure rating: IP67 (IEC 60529)
- Ambient operating temperature: –20 °C to +55 °C
- Storage temperature: –20 °C to +55 °C
- Dimensions (H x L x W): 50mm x 150mm x 100mm
- Weight: 0.46 kg
Key Features
- Electro-mechanical sensor principle with power to release locking
- Locking force up to 1,300 N compliant with EN ISO 14119
- Multiple monitoring contacts including 2 positive action N/C solenoid contacts
- Slow action switching element with rated operating current of 4 A at 230 V AC and 24 V DC
- IP67 rated enclosure for protection against dust and water
- Mechanical life of 1 million switching cycles
- Actuation frequency up to 1,200 per hour and approach speed up to 20 m/min
- Glass-fiber reinforced thermoplastic housing for durability
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure compliance with safety standards and proper wiring.
Applications
- Industrial safety interlocking for machinery and equipment
- Access control for hazardous areas
- Safety door locking in manufacturing and automation environments
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Durable construction reduces waste and replacement frequency
- Low power consumption of ≤ 8 W supports energy efficiency
- Robust IP67 rating protects against environmental damage, extending product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK i10-M0233 Lock is available for immediate purchase, ideal for industrial safety and access control applications.
