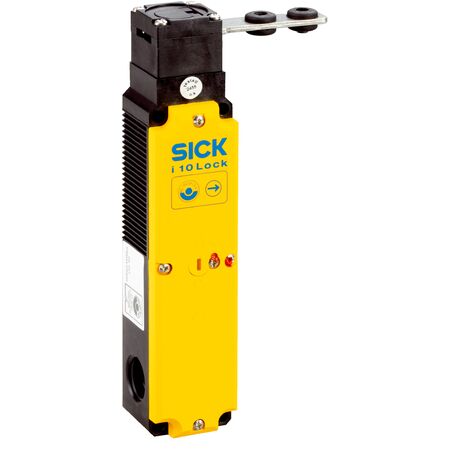

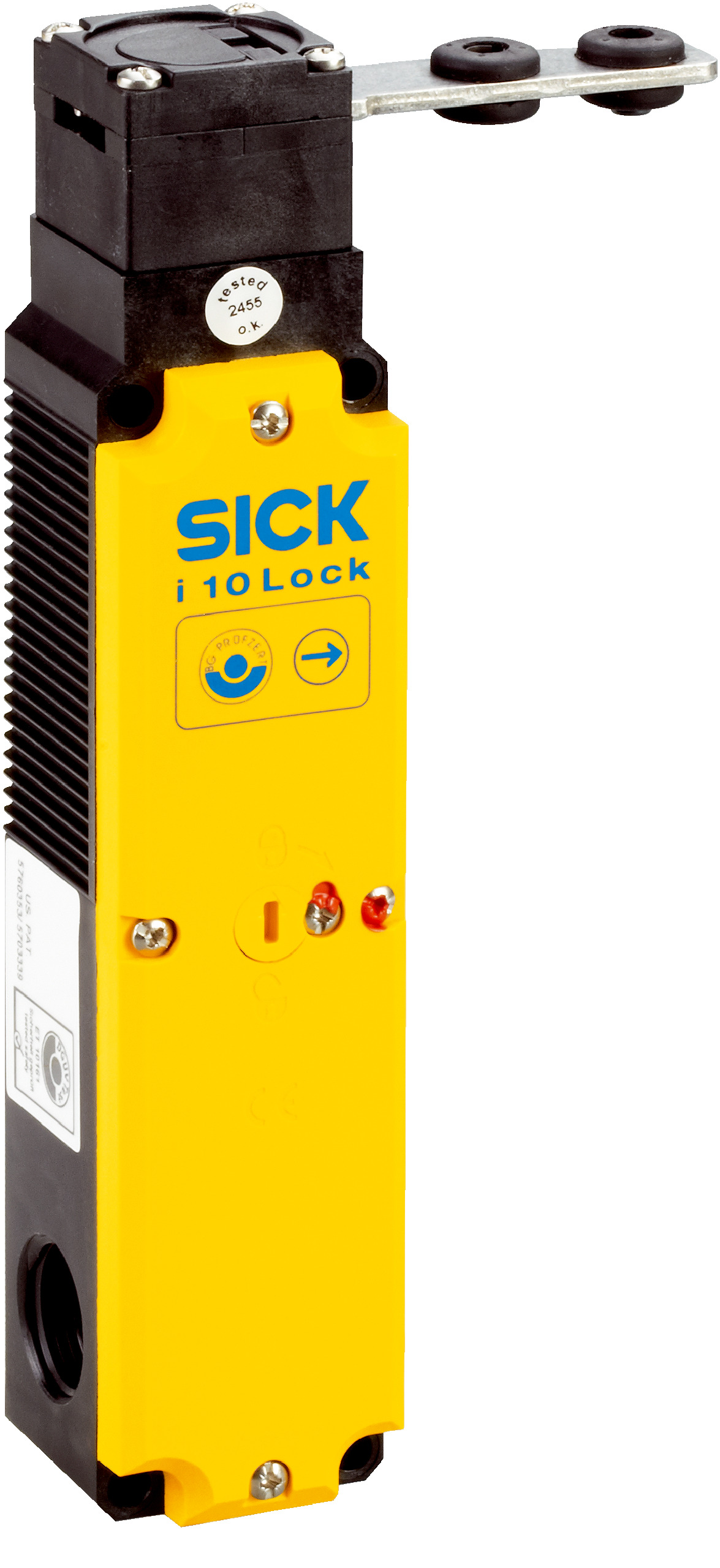

i10-M0253 Lock | Electro-Mechanical Safety Lock | IP67 Rated | 1300 N Locking Force | by SICK
The i10-M0253 Lock is an electro-mechanical safety lock designed for industrial applications, featuring a locking force of up to 1,300 N and an IP67 rated enclosure for dust and water protection. Ideal for machinery interlocking and access control, this durable lock ensures reliable safety switch monitoring in automated production lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 120mm x 80mm x 60mm
- Weight: 0.46 kg
Key Features
- Electro-mechanical sensor principle with power to release locking
- Locking force up to 1,300 N compliant with EN ISO 14119
- Two positive action N/C solenoid monitoring contacts
- Slow action switching element with rated operating current of 4 A at 230 V AC and 24 V DC
- IP67 rated enclosure for protection against dust and water
- Glass-fiber reinforced thermoplastic housing for durability
- Actuation frequency up to 1,200 per hour and approach speed up to 20 m/min
- Safe state depends on connected safety-related logic unit; no internal fault detection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure compliance with safety standards and proper wiring.
Applications
- Industrial safety interlocking for machinery and access control
- Safety door locking in automated production lines
- Use in environments requiring reliable safety switch monitoring
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials and robust design reduce replacement frequency and waste
- Low power consumption of ≤ 8 W contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK official documentation for details.
Available Now
The SICK i10-M0253 Lock is available for immediate purchase, ideal for industrial safety and machinery access control applications.
