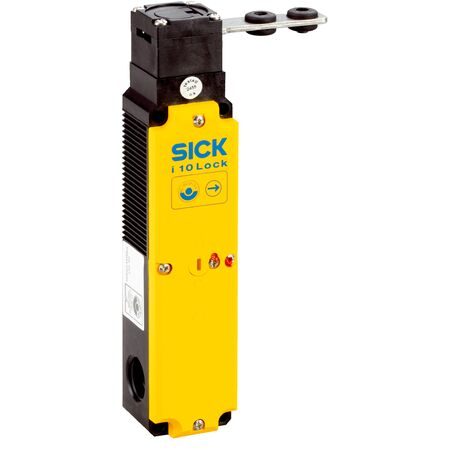

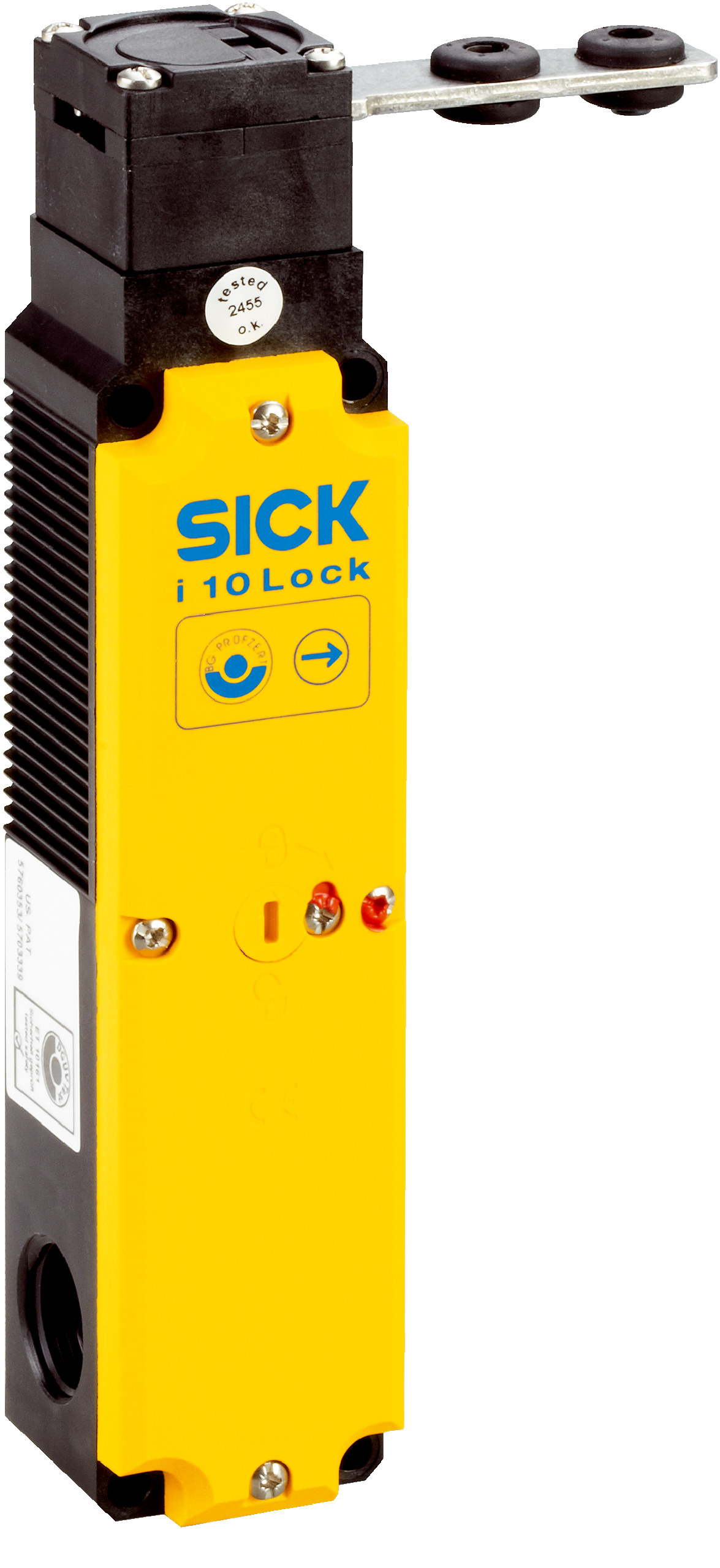

i10-M0453 Lock | Electro-Mechanical Sensor | IP67 Rated | 1300 N Locking Force | by SICK
The i10-M0453 Lock features an electro-mechanical sensor principle with a power to release locking mechanism, making it ideal for industrial safety applications. With a robust locking force of up to 1,300 N and an IP67 rated enclosure, this lock ensures reliable performance in hazardous environments. Designed for secure access control and machinery safety interlocks, it is built to withstand demanding conditions while providing peace of mind.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Electro-mechanical
- Locking principle: Power to release
- Positive action N/C solenoid monitoring contacts: 2
- Positive action N/C door monitoring contacts: 2
- Locking force Fmax: 1,300 N (EN ISO 14119)
- Locking force FZh: 1,000 N (EN ISO 14119)
- Actuation force: ≥ 10 N
- Retaining force: ≤ 20 N
- Actuation frequency: ≤ 1,200 per hour
- Actuation directions: 4
- Approach speed: ≤ 20 m/min
- B10d parameter: 3 x 10^6 switching cycles (small load)
- Type: Type 2 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Connection type: Cable gland, 3 x M20
- Conductor cross section: 0.34 mm² to 1.5 mm²
- Contamination rating: 3
- Switching principle: Slow action switching element
- Usage category: AC-15/DC-13 (IEC 60947-5-1)
- Rated operating current: 4 A (230 V AC), 4 A (24 V DC)
- Rated insulation voltage Ui: 250 V
- Rated impulse withstand voltage Uimp: 2,500 V
- Type of output: Electro-mechanical contacts
- Power consumption: ≤ 8 W
- Short-circuit protection: 4 A gG
- Switching voltage: ≥ 12 V DC
- Switching current: 1 mA (24 V DC)
- Solenoid operating voltage: 20.4 V DC to 26.4 V DC
- Switch-on time of magnet: 100%
- Mechanical life: 1 x 10^6 switching cycles
- Enclosure rating: IP67 (IEC 60529)
- Ambient operating temperature: –20 °C to +55 °C
- Storage temperature: –20 °C to +55 °C
- Housing material: Glass-fiber reinforced thermoplastic
- Dimensions (H x L x W): 120mm x 80mm x 60mm
- Weight: 0.46 kg
Key Features
- Electro-mechanical sensor principle with power to release locking
- Locking force up to 1,300 N compliant with EN ISO 14119
- Two positive action N/C solenoid monitoring contacts and two positive action N/C door monitoring contacts
- Slow action switching element with rated operating current of 4 A at 230 V AC and 24 V DC
- IP67 rated enclosure for protection against dust and water
- Glass-fiber reinforced thermoplastic housing for durability
- Actuation frequency up to 1,200 per hour and approach speed up to 20 m/min
- Safe state depends on connected safety-related logic unit; no internal fault detection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety interlock systems and electrical wiring standards to ensure compliance and safety.
Applications
- Industrial safety applications requiring secure locking and monitoring
- Machinery safety interlocks
- Access control in hazardous areas
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Low power consumption of ≤ 8 W supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK i10-M0453 Lock is available for immediate purchase, ideal for industrial safety and machinery access control applications.
