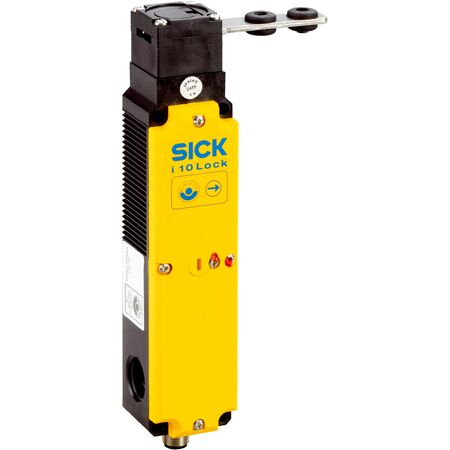

i10-M0454 Lock | Electro-mechanical Safety Lock | IP67 Rated | Power to Release | by SICK

BRAND: SICK
SKU: 6045055
$886.60 List price: $1,114.40
+ −
30 Days Return Electricians Unlock Trade Access
The i10-M0454 Lock is an electro-mechanical safety lock designed for industrial applications, featuring a power to release locking mechanism and IP67 rated enclosure for dust and water protection. With a locking force of up to 1,300 N and support for multiple actuation directions, it's perfect for ensuring safety in automated systems and hazardous areas.
Technical Specifications
  • Sensor principle: Electro-mechanical
  • Locking principle: Power to release
  • Positive action N/C solenoid monitoring contacts: 2
  • Positive action N/C door monitoring contacts: 1
  • Locking force Fmax: 1,300 N (EN ISO 14119)
  • Locking force FZh: 1,000 N (EN ISO 14119)
  • Actuation force: ≥ 10 N
  • Retaining force: ≤ 20 N
  • Actuation frequency: ≤ 1,200 per hour
  • Actuation directions: 4
  • Approach speed: ≤ 20 m/min
  • B10d parameter: 3 x 10^6 switching cycles (small load)
  • Type: Type 2 (EN ISO 14119)
  • Actuator coding level: Low coding level (EN ISO 14119)
  • Safe state in event of fault: No internal fault detection; fault detection by connected safety logic unit
  • Safe series connection: With Flexi Loop (with diagnostics)
  • Connection type: Plug connector, M12, 8-pin
  • Coupling nut material: Brass
  • Contamination rating: 3
  • Switching principle: Slow action switching element
  • Usage category: AC-15/DC-13 (IEC 60947-5-1)
  • Rated operating current: 1 A (24 V AC/DC)
  • Rated insulation voltage Ui: 30 V
  • Rated impulse withstand voltage Uimp: 1,500 V AC
  • Type of output: Electro-mechanical contacts
  • Power consumption: ≤ 8 W
  • Short-circuit protection: 1 A gG
  • Switching voltage: ≥ 12 V DC
  • Switching current: 1 mA (24 V DC)
  • Solenoid operating voltage: 20.4 V DC to 26.4 V DC
  • Switch-on time of magnet: 100%
  • Weight: 0.5 kg
  • Housing material: Glass-fiber reinforced thermoplastic
  • Mechanical life: 1 x 10^6 switching cycles
  • Enclosure rating: IP67 (IEC 60529)
  • Ambient operating temperature: -20 °C to +55 °C
  • Storage temperature: -20 °C to +55 °C
  • Dimensions (H x L x W): 120mm x 40mm x 60mm
  • Weight: 0.5 kg
Key Features
  • Electro-mechanical sensor principle with power to release locking
  • Positive action N/C solenoid monitoring contacts: 2
  • Positive action N/C door monitoring contacts: 1
  • Locking force Fmax: 1,300 N (EN ISO 14119)
  • Locking force FZh: 1,000 N (EN ISO 14119)
  • Actuation force ≥ 10 N and retaining force ≤ 20 N
  • Actuation frequency up to 1,200 per hour
  • 4 actuation directions supported
  • Approach speed up to 20 m/min
  • Safe series connection with Flexi Loop diagnostics
  • IP67 rated enclosure for protection against dust and water
  • Operating temperature range from -20 °C to +55 °C
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with safety interlock systems and electrical connections to ensure compliance with safety standards.
Applications
  • Industrial safety interlocking for machinery and equipment
  • Access control in hazardous areas
  • Safety door locking in automated systems
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable glass-fiber reinforced thermoplastic housing reduces material waste
  • Long mechanical life reduces replacement frequency and waste
  • Low power consumption (≤ 8 W) supports energy efficiency
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy.

Available Now

The SICK i10-M0454 Lock is available for immediate purchase, ideal for industrial safety and access control applications.
