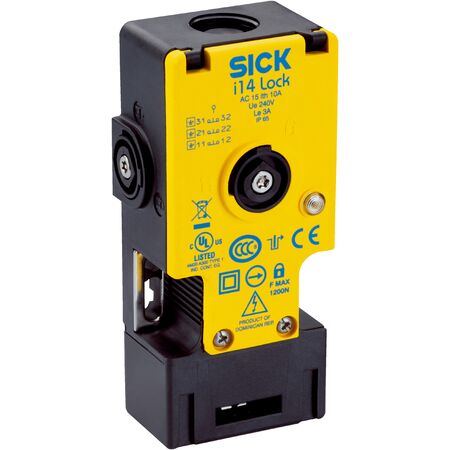

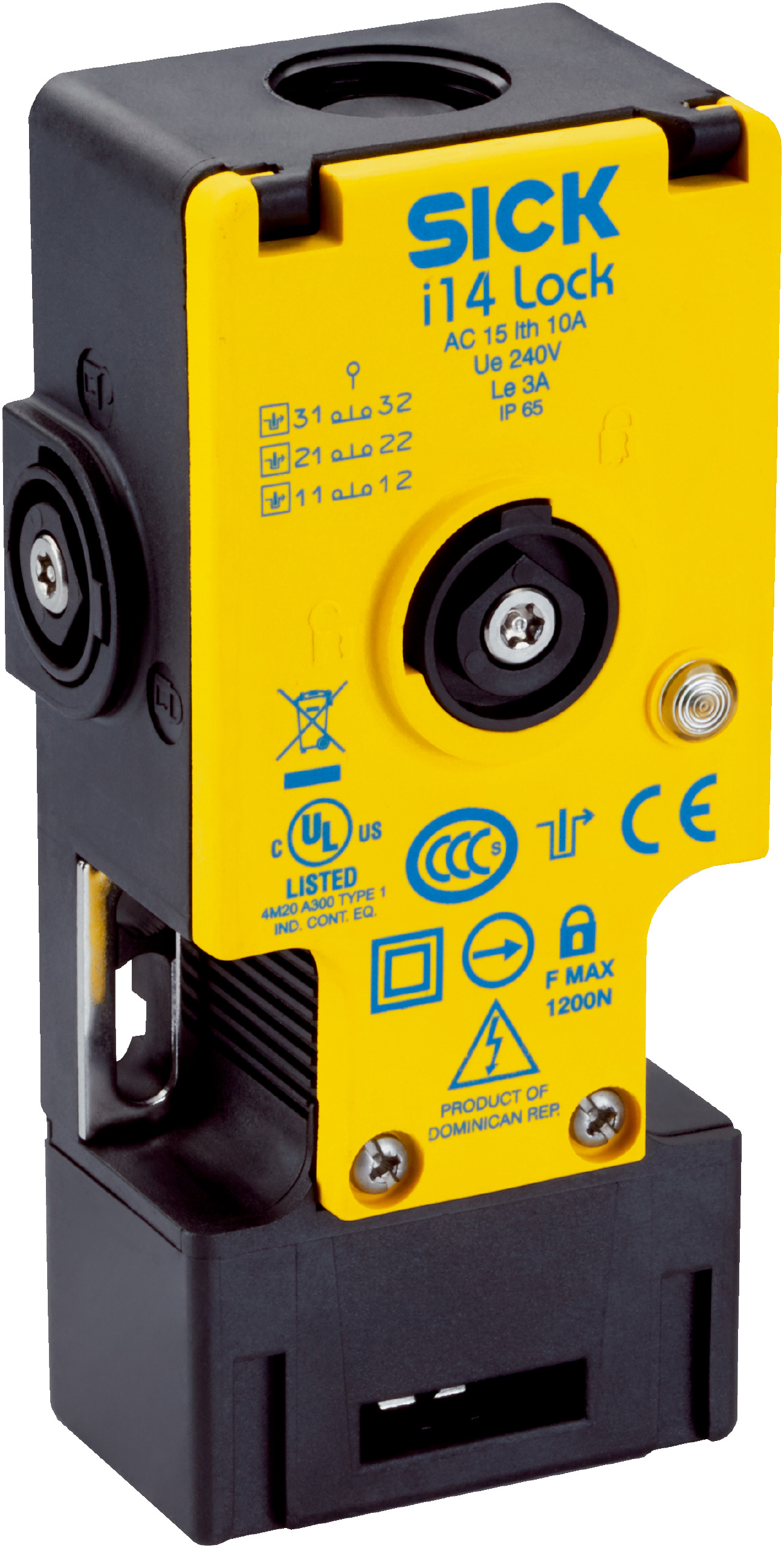

i14-M0213 Lock | Electro-mechanical Safety Interlock | IP65 Rated | 1,000 N Locking Force | by SICK
The i14-M0213 Lock is an electro-mechanical safety interlock designed for industrial applications, featuring a robust locking force of up to 1,000 N and an IP65 rated enclosure for dust and water protection. Ideal for access control in hazardous areas, this lock ensures operational safety with its LED status display and a mechanical life of 1 million switching cycles.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Electro-mechanical
- Locking force Fmax: 1,000 N (EN ISO 14119)
- Locking force FZh: 770 N (EN ISO 14119)
- Actuation force: ≥ 12 N
- Retaining force: ≤ 50 N
- Actuation frequency: ≤ 3,600 per hour
- Actuation directions: 3
- Approach speed: ≤ 10 m/min
- B10d parameter: 2 x 10^6 switching cycles (small load)
- Type: Type 2 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Safe state in fault: No internal fault detection; fault detection by connected safety logic unit
- Connection type: Cable gland, 1 x M20
- Conductor cross section: ≤ 1.5 mm²
- Display elements: LEDs with status display
- Switching principle: Slow action switching element
- Usage category: AC-15/DC-13 (EN 60947-5-1)
- Rated operating current: 3 A (240 V AC), 2 A (24 V DC)
- Rated insulation voltage Ui: 250 V
- Rated impulse withstand voltage Uimp: 2,500 V
- Type of output: Electro-mechanical contacts
- Power consumption: ≤ 7 W
- Short-circuit protection: 3 A gG
- Switching voltage: ≥ 5 V DC
- Switching current: 5 mA (5 V DC)
- Solenoid operating voltage: 20.4 V DC to 26.4 V DC
- Switch-on time of magnet: 100%
- Housing material: Glass-fiber reinforced thermoplastic
- Mechanical life: 1 x 10^6 switching cycles
- Enclosure rating: IP65 (IEC 60529)
- Ambient operating temperature: –20 °C to +60 °C
- Storage temperature: –10 °C to +60 °C
- Dimensions (H x L x W): 120mm x 80mm x 60mm
- Weight: 0.37 kg
Key Features
- Electro-mechanical sensor principle with power to release locking
- Locking force up to 1,000 N compliant with EN ISO 14119
- Positive action N/C solenoid monitoring contacts (2) and N/O solenoid monitoring contact (1)
- Slow action switching element with rated operating current of 3 A (240 V AC) and 2 A (24 V DC)
- LED status display for operational feedback
- IP65 rated enclosure for protection against dust and water
- Mechanical life of 1 million switching cycles
- Actuation frequency up to 3,600 per hour and approach speed up to 10 m/min
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety interlock systems and electrical wiring standards to ensure compliance and operational safety.
Applications
- Industrial safety interlocking for machinery and equipment
- Access control in hazardous areas
- Safety door locking in automated systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of ≤7 W contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK i14-M0213 Lock is available for immediate purchase, ideal for industrial safety and access control applications.
