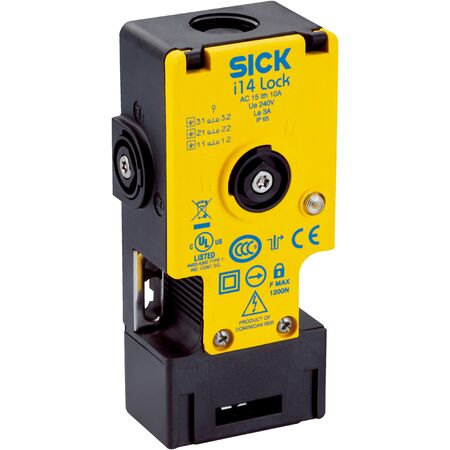

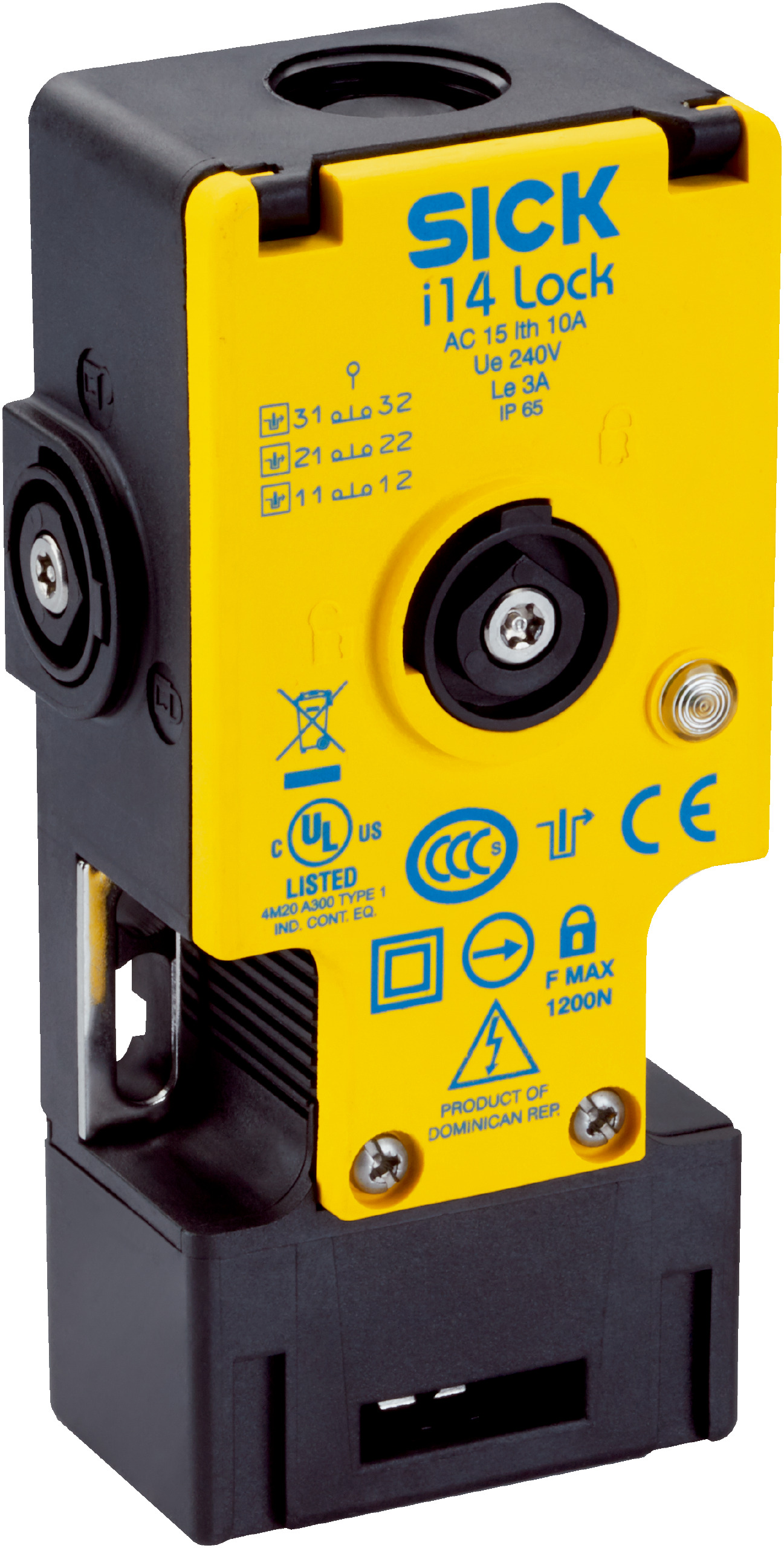

i14-M0303 Lock | Electro-Mechanical Safety Lock | IP65 Rated | 1,000 N Locking Force | by SICK
The i14-M0303 Lock is an electro-mechanical safety lock designed for industrial applications, featuring a robust locking force of up to 1,000 N and an IP65 rated enclosure for dust and water protection. Ideal for machine guarding and access control in hazardous areas, this lock ensures safety and compliance with EN ISO 14119 standards, making it a reliable choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Locking force Fmax: 1,000 N (EN ISO 14119)
- Locking force FZh: 770 N (EN ISO 14119)
- Actuation force: ≥ 12 N
- Retaining force: ≤ 50 N
- Actuation frequency: ≤ 3,600 per hour
- Approach speed: ≤ 10 m/min
- B10d parameter: 2 x 10^6 switching cycles (small load)
- Type: Type 2 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Safe state in fault: No internal fault detection; fault detection by connected safety logic unit
- Connection type: Cable gland, 1 x M20
- Conductor cross section: ≤ 1.5 mm²
- Switching principle: Slow action switching element
- Usage category: AC-15/DC-13 (EN 60947-5-1)
- Rated operating current: 3 A (240 V AC), 2 A (24 V DC)
- Rated insulation voltage Ui: 250 V
- Rated impulse withstand voltage Uimp: 2,500 V
- Type of output: Electro-mechanical contacts
- Power consumption: ≤ 7 W
- Short-circuit protection: 3 A gG
- Switching voltage: ≥ 5 V DC
- Switching current: 5 mA (5 V DC)
- Solenoid operating voltage: 20.4 V DC to 26.4 V DC
- Switch-on time of magnet: 100%
- Housing material: Glass-fiber reinforced thermoplastic
- Mechanical life: 1 x 10^6 switching cycles
- Enclosure rating: IP65 (IEC 60529)
- Ambient operating temperature: –20 °C to +60 °C
- Storage temperature: –10 °C to +60 °C
- Dimensions (H x L x W): 120mm x 40mm x 60mm
- Weight: 0.37 kg
Key Features
- Electro-mechanical sensor principle with power to release locking
- Locking force up to 1,000 N compliant with EN ISO 14119
- 3 positive action N/C solenoid monitoring contacts
- Slow action switching element with rated operating current of 3 A (240 V AC) and 2 A (24 V DC)
- LED status display for operational feedback
- IP65 rated enclosure for protection against dust and water
- Mechanical life of 1 million switching cycles
- Actuation frequency up to 3,600 per hour
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety interlock systems and electrical wiring standards to ensure compliance and safety.
Applications
- Industrial safety door locking
- Machine guarding
- Access control in hazardous areas
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of ≤7 W minimizes energy use
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK i14-M0303 Lock is available for immediate purchase, ideal for industrial safety and machine guarding applications.
