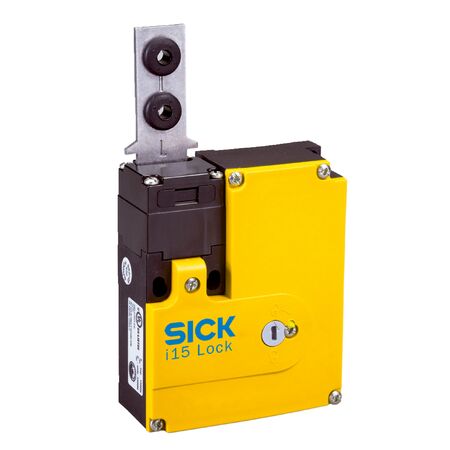

i15-EM0123 Lock | Electro-Mechanical Safety Interlock | IP67 Rated | 2000 N Locking Force | by SICK
The i15-EM0123 Lock is an electro-mechanical safety interlock designed for industrial applications, featuring a robust locking force of up to 2,000 N and an IP67 rated enclosure for dust and water protection. Ideal for access control in hazardous areas, this lock supports four actuation directions and high actuation frequencies, ensuring reliable operation in automated systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Electro-mechanical
- Locking force Fmax: 2,000 N (EN ISO 14119)
- Locking force FZh: 1,500 N (EN ISO 14119)
- Actuation force: ≥ 35 N
- Retaining force: ≤ 30 N
- Actuation frequency: ≤ 7,000 per hour
- Actuation directions: 4
- Approach speed: ≤ 20 m/min
- B10d parameter: 2 x 10^6 switching cycles (small load)
- Type: Type 2 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Connection type: Cable gland, 1 x M20
- Conductor cross section: 0.34 mm² to 1.5 mm²
- Contamination rating: 3
- Switching principle: Slow action switching element
- Usage category: AC-15/DC-13 (IEC 60947-5-1)
- Rated operating current: 4 A (230 V AC), 4 A (24 V DC)
- Rated insulation voltage Ui: 250 V
- Rated impulse withstand voltage Uimp: 2,500 V
- Type of output: Electro-mechanical contacts
- Power consumption: ≤ 6 W
- Short-circuit protection: 4 A gG
- Switching voltage: ≥ 12 V DC
- Switching current: 1 mA (24 V DC)
- Solenoid operating voltage: 20.4 V DC to 26.4 V DC
- Switch-on time of magnet: 100%
- Mechanical life: 2 x 10^6 switching cycles
- Enclosure rating: IP67
- Ambient operating temperature: –20 °C to +55 °C
- Storage temperature: –20 °C to +55 °C
- Dimensions (H x L x W): 120mm x 40mm x 60mm
- Weight: 0.48 kg
Key Features
- Electro-mechanical locking with power to lock principle
- Positive action N/C solenoid monitoring contacts for enhanced safety
- Locking force up to 2,000 N compliant with EN ISO 14119
- Four actuation directions supported
- High actuation frequency up to 7,000 operations per hour
- IP67 rated enclosure for protection against dust and water
- Glass-fiber reinforced thermoplastic housing with metal actuator head
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety interlock systems and electrical wiring standards to ensure compliance and safety.
Applications
- Industrial safety interlocking for machinery and equipment
- Access control for hazardous areas
- Safety door locking in automated systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption of ≤ 6 W supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK i15-EM0123 Electro-Mechanical Safety Lock is available for immediate purchase, ideal for industrial safety and access control applications.
