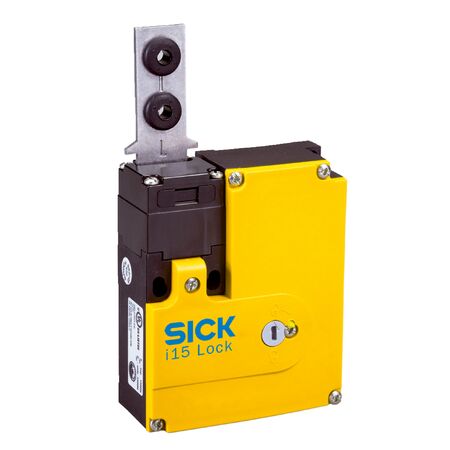

i15-EP0123 Lock | Electro-Mechanical Safety Switch | IP67 Rated | 1000N Locking Force | by SICK
The i15-EP0123 Lock is an electro-mechanical safety switch designed for industrial applications, featuring a robust locking force of up to 1,000 N and an IP67 rated enclosure for dust and water protection. Ideal for safety interlocking in machinery and access control, this lock ensures reliable operation with a long mechanical life and low power consumption, making it perfect for environments requiring secure locking and safety monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Electro-mechanical
- Locking force Fmax: 1,000 N (EN ISO 14119)
- Locking force FZh: 700 N (EN ISO 14119)
- Actuation force: ≥ 35 N
- Retaining force: ≤ 30 N
- Actuation frequency: ≤ 7,000 per hour
- Actuation directions: 4
- Approach speed: ≤ 20 m/min
- B10d parameter: 2 x 10^6 switching cycles (small load)
- Type: Type 2 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Connection type: Cable gland, 1 x M20
- Conductor cross section: 0.34 mm² to 1.5 mm²
- Contamination rating: 3
- Switching principle: Slow action switching element
- Usage category: AC-15/DC-13 (IEC 60947-5-1)
- Rated operating current: 4 A (230 V AC), 4 A (24 V DC)
- Rated insulation voltage Ui: 250 V
- Rated impulse withstand voltage Uimp: 2,500 V
- Type of output: Electro-mechanical contacts
- Power consumption: ≤ 6 W
- Short-circuit protection: 4 A gG
- Switching voltage: ≥ 12 V DC
- Switching current: 1 mA (24 V DC)
- Solenoid operating voltage: 20.4 V DC to 26.4 V DC
- Switch-on time of magnet: 100%
- Housing material: Glass-fiber reinforced thermoplastic
- Actuator head material: Plastic
- Mechanical life: 2 x 10^6 switching cycles
- Enclosure rating: IP67
- Ambient operating temperature: -20 °C to +55 °C
- Storage temperature: -20 °C to +55 °C
- Dimensions (H x L x W): 120mm x 40mm x 60mm
- Weight: 0.45 kg
Key Features
- Electro-mechanical sensor principle with power to lock locking principle
- Locking force up to 1,000 N compliant with EN ISO 14119
- Positive action N/C solenoid monitoring contact and door monitoring contacts
- Actuation frequency up to 7,000 per hour with 4 actuation directions
- IP67 rated enclosure for protection against dust and water
- Low coding level actuator compliant with EN ISO 14119 Type 2
- Safe state fault detection performed by connected safety logic unit
- Slow action switching element with rated operating current of 4 A at 230 V AC and 24 V DC
- Glass-fiber reinforced thermoplastic housing with plastic actuator head
- Operating temperature range from -20 °C to +55 °C
Professional Installation Requirements
- Installation must be performed by a qualified professional familiar with safety interlock systems and electrical wiring standards to ensure compliance and safety.
Applications
- Industrial safety interlocking for machinery and access control
- Safety door locking in automated production lines
- Use in environments requiring secure locking with safety monitoring
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials and long mechanical life reduce replacement frequency and waste
- Low power consumption of ≤ 6 W supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK i15-EP0123 Electro-Mechanical Power to Lock Safety Lock is available for immediate purchase, ideal for industrial safety and access control applications.
