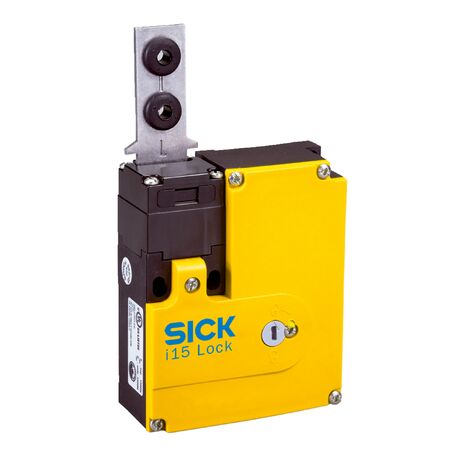

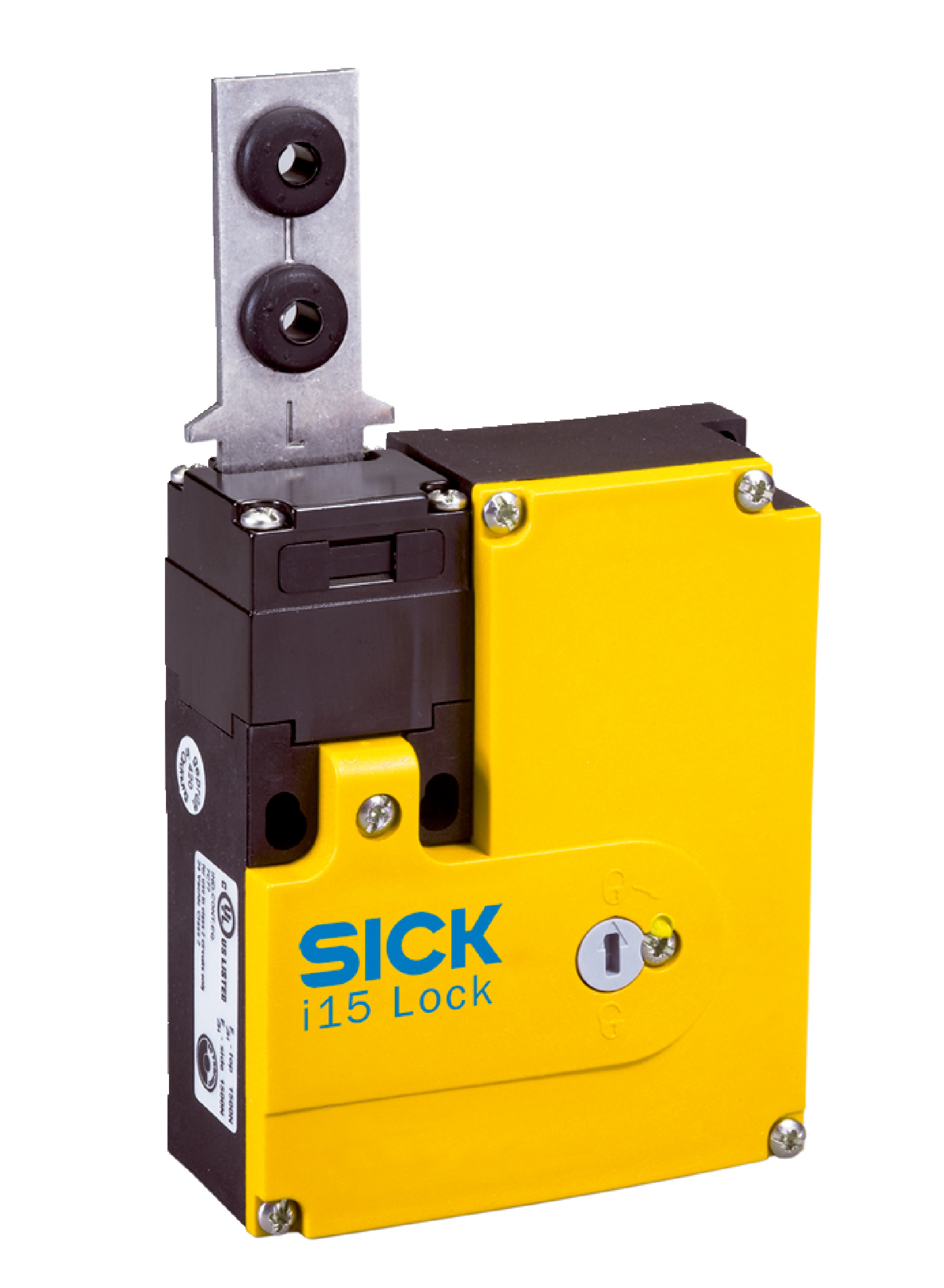

i15-EP0133 Lock | Electro-Mechanical Safety Interlock | IP67 Rated | 1000N Locking Force | by SICK
The i15-EP0133 Lock is an electro-mechanical safety interlock designed for industrial applications, featuring a robust locking force of up to 1,000 N and an IP67 rated enclosure for harsh environments. Ideal for access control and safety door locking in automated systems, this lock ensures a safe state with its positive action N/C solenoid and door monitoring contacts, making it perfect for machinery and equipment safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Electro-mechanical
- Locking force Fmax: 1,000 N (EN ISO 14119)
- Locking force FZh: 700 N (EN ISO 14119)
- Actuation force: ≥ 35 N
- Retaining force: ≤ 30 N
- Actuation frequency: ≤ 7,000 per hour
- Actuation directions: 4
- Approach speed: ≤ 20 m/min
- B10d parameter: 2 x 10^6 switching cycles (small load)
- Type: Type 2 (EN ISO 14119)
- Actuator coding level: Low coding level
- Connection type: Cable gland, 1 x M20
- Conductor cross section: 0.34 mm² to 1.5 mm²
- Contamination rating: 3
- Switching principle: Slow action switching element
- Usage category: AC-15/DC-13 (IEC 60947-5-1)
- Rated operating current: 4 A (230 V AC), 4 A (24 V DC)
- Rated insulation voltage Ui: 250 V
- Rated impulse withstand voltage Uimp: 2,500 V
- Type of output: Electro-mechanical contacts
- Power consumption: ≤ 6 W
- Short-circuit protection: 4 A gG
- Switching voltage: ≥ 12 V DC
- Switching current: 1 mA (24 V DC)
- Solenoid operating voltage: 20.4 V DC to 26.4 V DC
- Switch-on time of magnet: 100%
- Housing material: Glass-fiber reinforced thermoplastic
- Actuator head material: Plastic
- Mechanical life: 2 x 10^6 switching cycles
- Enclosure rating: IP67
- Ambient operating temperature: –20 °C to +55 °C
- Storage temperature: –20 °C to +55 °C
- Dimensions (H x L x W): 120mm x 80mm x 60mm
- Weight: 0.45 kg
Key Features
- Electro-mechanical sensor principle with power to lock mechanism
- Positive action N/C solenoid and door monitoring contacts
- Locking force up to 1,000 N compliant with EN ISO 14119
- Four actuation directions with approach speed up to 20 m/min
- IP67 rated enclosure for harsh environments
- Low coding level actuator compliant with Type 2 safety standards
- Safe state ensured by connected safety-related logic unit
- Slow action switching element with rated operating current of 4 A at 230 V AC and 24 V DC
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety interlock systems and compliant with relevant safety standards.
Applications
- Industrial safety interlocking for machinery and equipment
- Access control in hazardous areas
- Safety door locking in automated systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption of ≤ 6 W supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK i15-EP0133 Electro-Mechanical Safety Lock is available for immediate purchase, ideal for industrial safety and access control applications.
