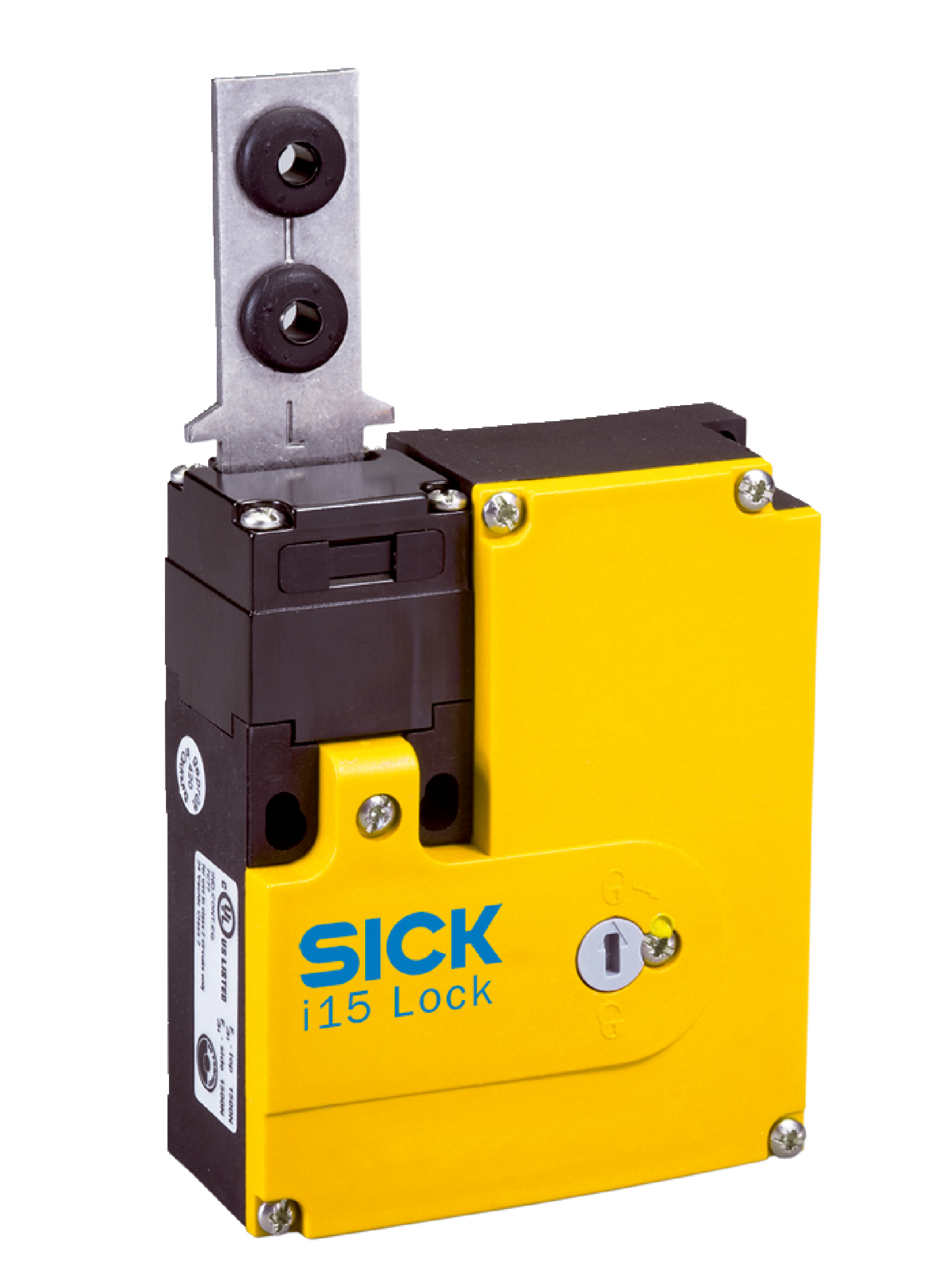

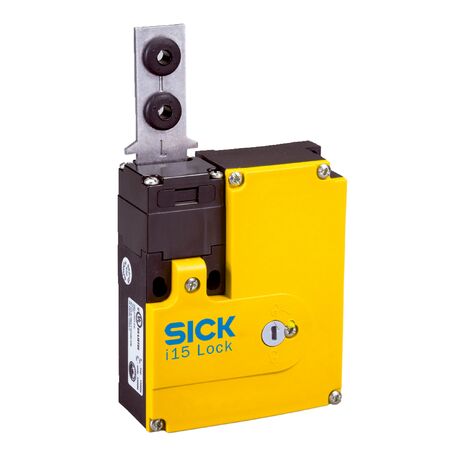

i15-MM0123 Lock | Electro-Mechanical Safety Lock | IP67 Rated | 2000 N Locking Force | by SICK
The i15-MM0123 Lock is an electro-mechanical safety lock designed for industrial applications, featuring a robust locking force of up to 2,000 N and an IP67 rated enclosure for dust and water protection. Ideal for access control in hazardous areas, this lock ensures safety and compliance with EN ISO 14119 standards, making it perfect for machinery and automated systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Electro-mechanical
- Locking principle: Power to release
- Locking force Fmax: 2,000 N (EN ISO 14119)
- Locking force FZh: 1,500 N (EN ISO 14119)
- Actuation force: ≥ 35 N
- Retaining force: ≤ 30 N
- Actuation frequency: ≤ 7,000 per hour
- Actuation directions: 4
- Approach speed: ≤ 20 m/min
- Positive action N/C solenoid monitoring contacts: 1
- Positive action N/C door monitoring contacts: 2
- Rated operating current: 4 A (230 V AC), 4 A (24 V DC)
- Rated insulation voltage Ui: 250 V
- Rated impulse withstand voltage Uimp: 2,500 V
- Power consumption: ≤ 6 W
- Short-circuit protection: 4 A gG
- Switching principle: Slow action switching element
- Contamination rating: 3
- Enclosure rating: IP67
- Operating temperature: -20°C to +55°C
- Housing material: Glass-fiber reinforced thermoplastic
- Actuator head material: Metal
- Dimensions (H x L x W): 120mm x 40mm x 60mm
- Weight: 0.48 kg
Key Features
- Electro-mechanical sensor principle with power to release locking
- Locking force up to 2,000 N compliant with EN ISO 14119
- Positive action N/C solenoid and door monitoring contacts
- Four actuation directions with approach speed up to 20 m/min
- High mechanical life of 2 million switching cycles
- IP67 rated enclosure for protection against dust and water
- Operating temperature range from -20°C to +55°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety interlock systems and electrical wiring standards to ensure compliance and safety.
Applications
- Industrial safety interlocking for machinery and equipment
- Access control for hazardous areas
- Safety door locking in automated systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of ≤ 6 W minimizes energy use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK i15-MM0123 Electro-Mechanical Safety Lock is available for immediate purchase, ideal for industrial safety and access control applications.
