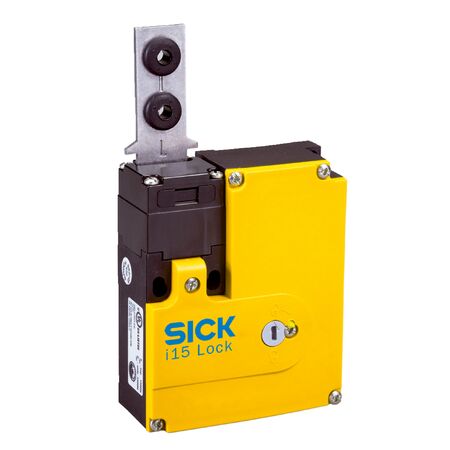

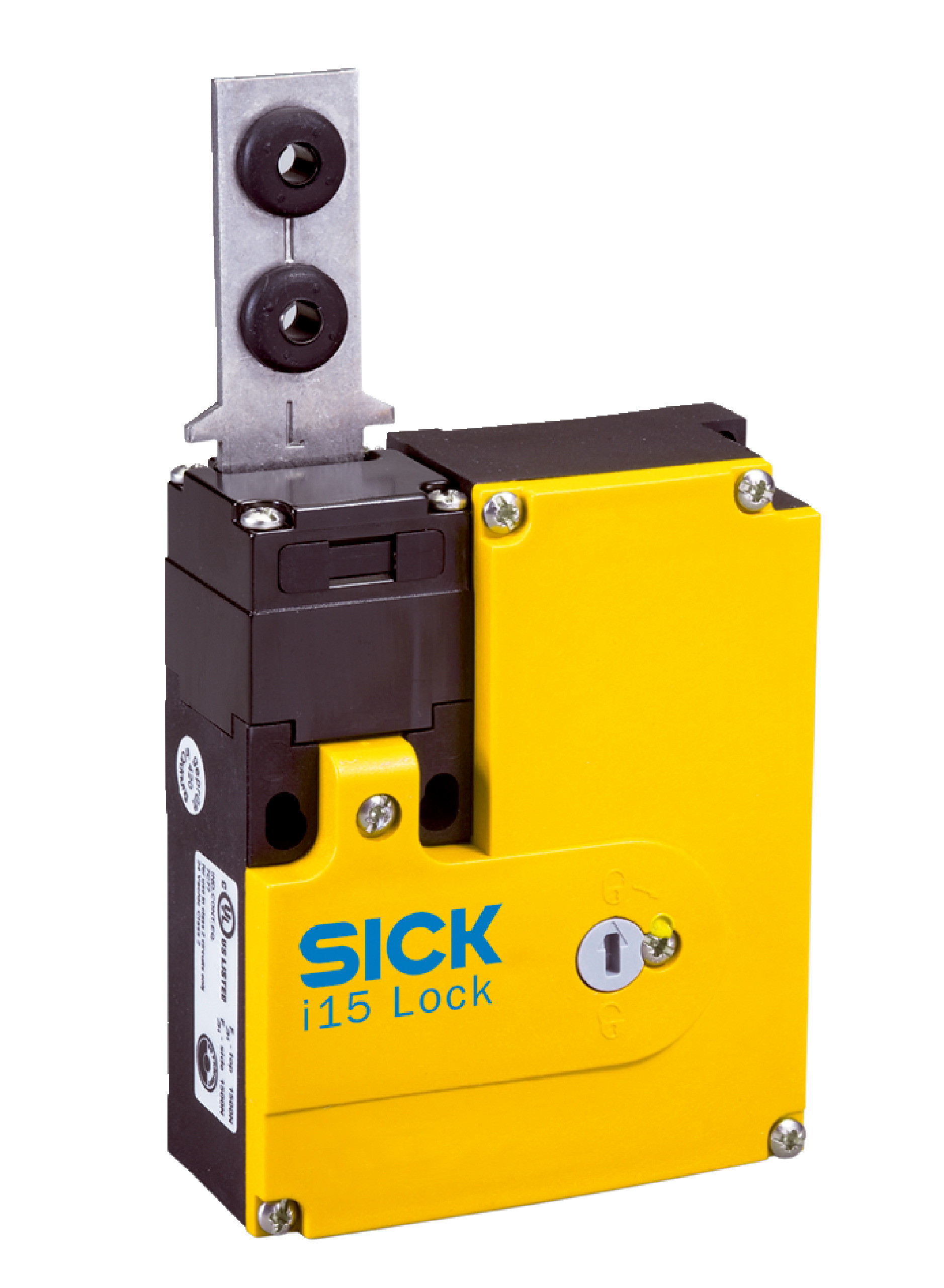

i15-MM0133 Lock | Electro-Mechanical Sensor | IP67 Rated | 2000 N Locking Force | by SICK
The i15-MM0133 Lock features an electro-mechanical sensor principle with a power to release locking mechanism, making it ideal for industrial safety interlocking applications. With a robust locking force of up to 2,000 N and an IP67 rated enclosure, this lock ensures reliable performance in hazardous environments. Designed for access control and safety door monitoring, it boasts a mechanical life of 2 million switching cycles, providing long-lasting security for machinery and equipment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Electro-mechanical
- Locking principle: Power to release
- Locking force Fmax: 2,000 N (EN ISO 14119)
- Locking force FZh: 1,500 N (EN ISO 14119)
- Actuation force: ≥ 35 N
- Retaining force: ≤ 30 N
- Actuation frequency: ≤ 7,000 per hour
- Actuation directions: 4
- Approach speed: ≤ 20 m/min
- Positive action N/C solenoid monitoring contacts: 1
- Positive action N/C door monitoring contacts: 1
- N/O door monitoring contacts: 1
- Rated operating current: 4 A (230 V AC), 4 A (24 V DC)
- Rated insulation voltage Ui: 250 V
- Rated impulse withstand voltage Uimp: 2,500 V
- Power consumption: ≤ 6 W
- Short-circuit protection: 4 A gG
- Switching voltage: ≥ 12 V DC
- Switching current: 1 mA (24 V DC)
- Solenoid operating voltage: 20.4 V DC to 26.4 V DC
- Switch-on time of magnet: 100%
- Contamination rating: 3
- Enclosure rating: IP67
- Ambient operating temperature: –20 °C to +55 °C
- Storage temperature: –20 °C to +55 °C
- Housing material: Glass-fiber reinforced thermoplastic
- Actuator head material: Metal
- Mechanical life: 2 million switching cycles
- Dimensions (H x L x W): 120mm x 80mm x 60mm
- Weight: 0.48 kg
Key Features
- Electro-mechanical sensor principle with power to release locking
- Locking force up to 2,000 N compliant with EN ISO 14119
- Positive action N/C solenoid and door monitoring contacts
- Slow action switching element with rated operating current of 4 A at 230 V AC
- IP67 rated enclosure for protection against dust and water
- Mechanical life of 2 million switching cycles
- Actuation frequency up to 7,000 per hour and approach speed up to 20 m/min
- Glass-fiber reinforced thermoplastic housing with metal actuator head
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure compliance with safety standards and proper integration with safety-related logic units.
Applications
- Industrial safety interlocking for machinery and equipment
- Access control for hazardous areas
- Safety door monitoring in manufacturing plants
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of ≤ 6 W minimizes energy use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK i15-MM0133 Electro-Mechanical Safety Lock is available for immediate purchase, ideal for industrial safety and access control applications.
