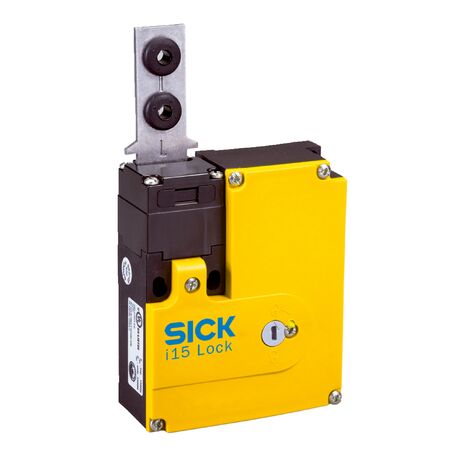

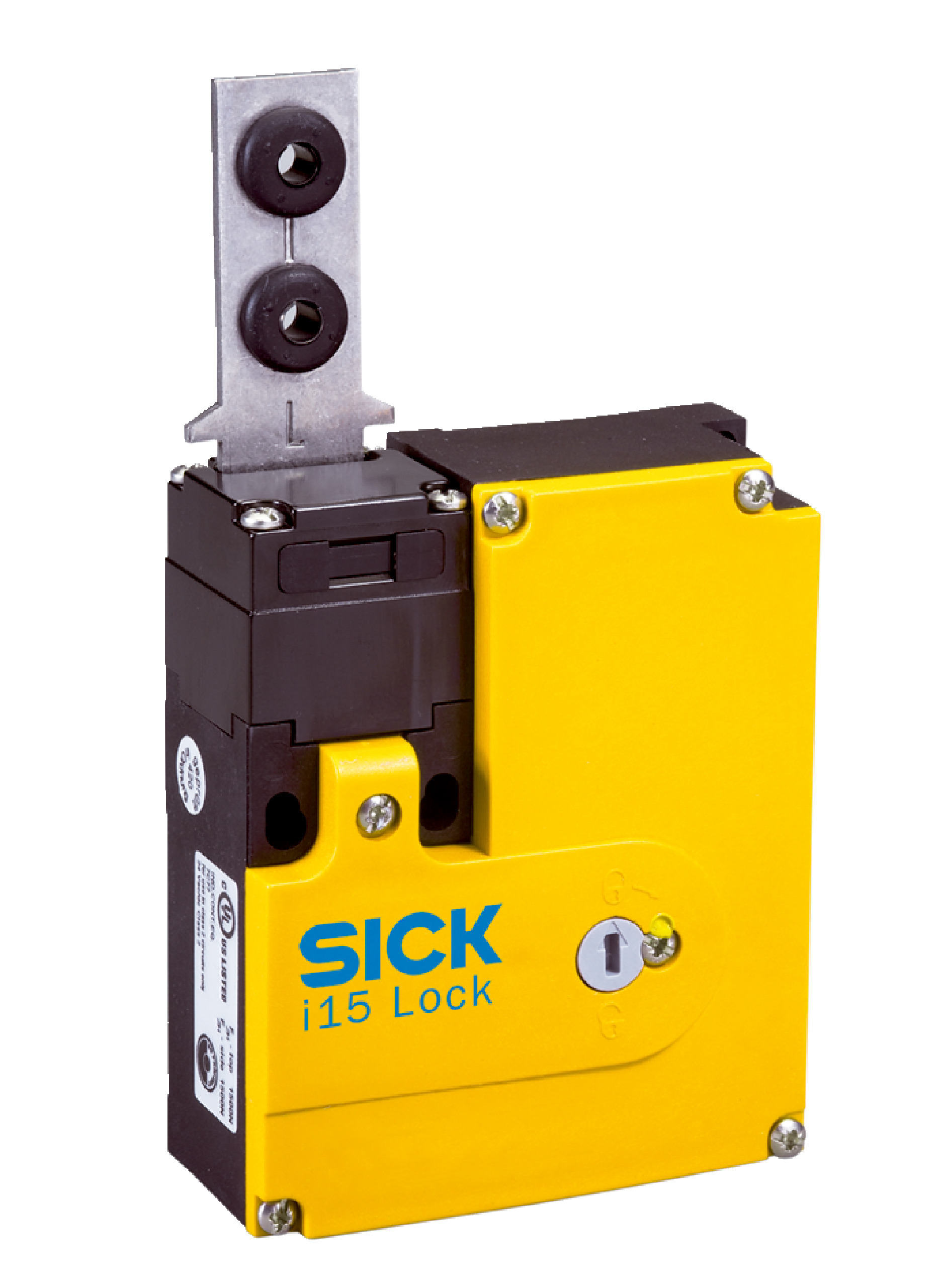

i15-MP0123 Lock | Electro-Mechanical Sensor | IP67 Rated | 1000N Locking Force | by SICK
The i15-MP0123 Lock features an electro-mechanical sensor principle with a power to release locking mechanism, making it ideal for industrial safety interlocking applications. With a robust locking force of up to 1,000 N and an IP67 rated enclosure, this lock ensures reliable performance in harsh environments. Perfect for access control in hazardous areas, it supports up to 7,000 operations per hour, providing safety and efficiency for automated systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Electro-mechanical
- Locking principle: Power to release
- Locking force Fmax: 1,000 N (EN ISO 14119)
- Locking force FZh: 700 N (EN ISO 14119)
- Actuation force: ≥ 35 N
- Retaining force: ≤ 30 N
- Actuation frequency: ≤ 7,000 per hour
- Actuation directions: 4
- Approach speed: ≤ 20 m/min
- Positive action N/C solenoid monitoring contacts: 1
- Positive action N/C door monitoring contacts: 2
- Rated operating current: 4 A (230 V AC), 4 A (24 V DC)
- Rated insulation voltage Ui: 250 V
- Rated impulse withstand voltage Uimp: 2,500 V
- Power consumption: ≤ 6 W
- Short-circuit protection: 4 A gG
- Switching voltage: ≥ 12 V DC
- Switching current: 1 mA (24 V DC)
- Solenoid operating voltage: 20.4 V DC to 26.4 V DC
- Switch-on time of magnet: 100%
- Contamination rating: 3
- Enclosure rating: IP67
- Ambient operating temperature: –20 °C to +55 °C
- Storage temperature: –20 °C to +55 °C
- Housing material: Glass-fiber reinforced thermoplastic
- Actuator head material: Plastic
- Mechanical life: 2 million switching cycles
- Dimensions (H x L x W): 120mm x 40mm x 60mm
- Weight: 0.45 kg
Key Features
- Electro-mechanical sensor principle with power to release locking
- Locking force up to 1,000 N compliant with EN ISO 14119
- Positive action normally closed solenoid monitoring contacts
- IP67 rated enclosure for harsh environments
- Actuation frequency up to 7,000 operations per hour
- Low coding level actuator for safety applications
- Safe state relies on external safety-related logic unit
- Cable gland connection with conductor cross section 0.34 mm² to 1.5 mm²
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety interlock systems and electrical wiring standards to ensure compliance and safety.
Applications
- Industrial safety interlocking for machinery and equipment
- Access control in hazardous areas
- Safety door locking in automated systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable glass-fiber reinforced thermoplastic housing reduces material waste
- Low power consumption of ≤ 6 W supports energy efficiency
- Long mechanical life of 2 million switching cycles reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK i15-MP0123 Electro-Mechanical Safety Lock is available for immediate purchase, ideal for industrial safety and access control applications.
