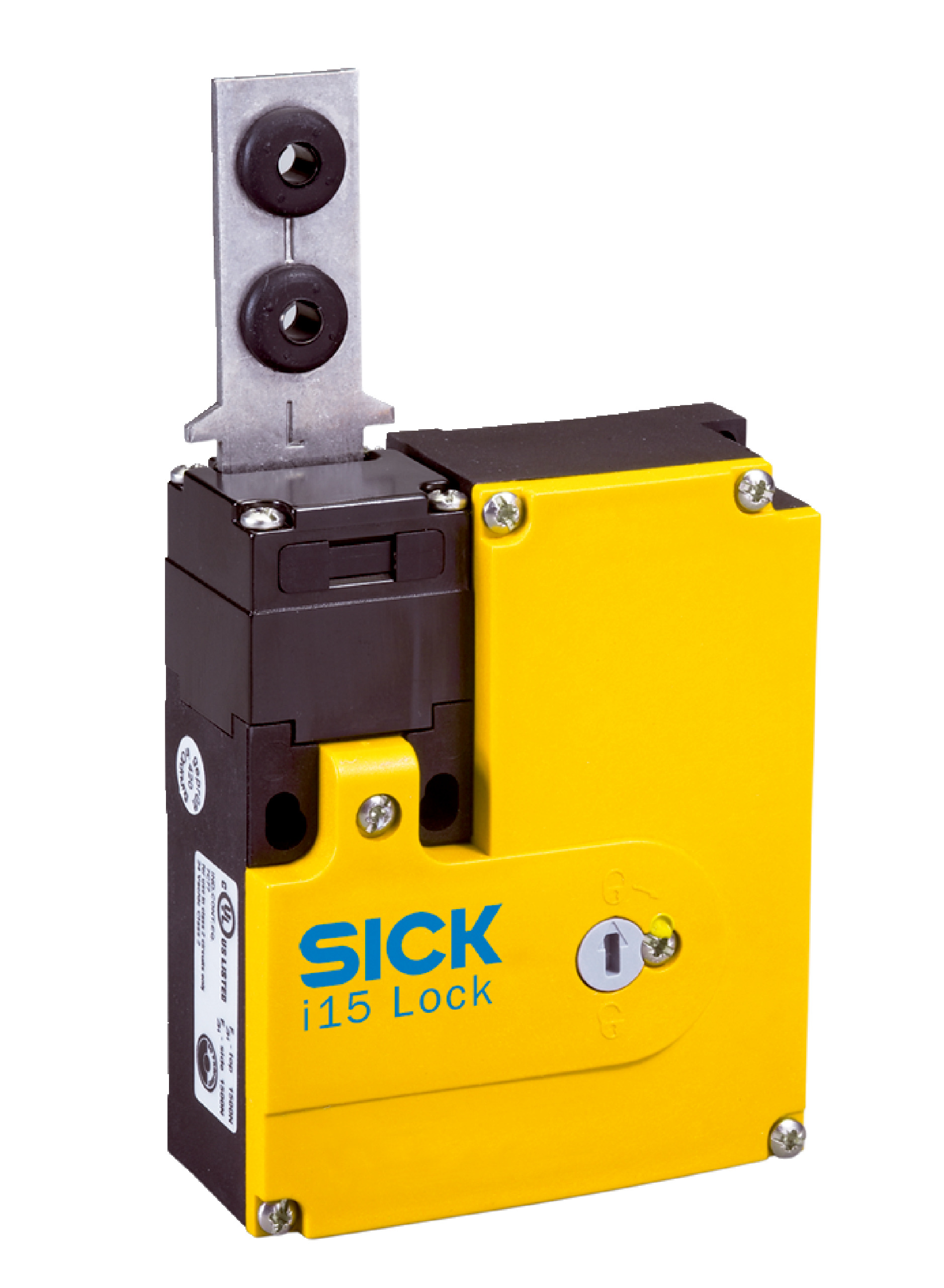

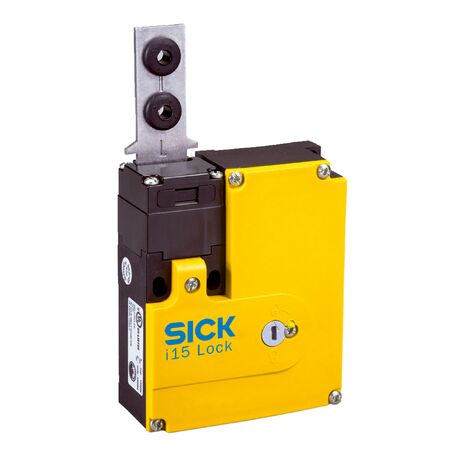

i15-MP0133 Lock | Electro-Mechanical Safety | IP67 Rated | 1000N Locking Force | by SICK
The i15-MP0133 Lock features an electro-mechanical sensor principle with power to release locking, making it ideal for industrial safety interlocking and access control in hazardous areas. With a robust locking force of up to 1,000 N and an IP67 rated enclosure, this lock ensures reliable performance in demanding environments, providing peace of mind for safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Electro-mechanical
- Locking principle: Power to release
- Positive action N/C solenoid monitoring contacts: 1
- Positive action N/C door monitoring contacts: 1
- N/O door monitoring contacts: 1
- Locking force Fmax: 1,000 N (EN ISO 14119)
- Locking force FZh: 700 N (EN ISO 14119)
- Actuation force: ≥ 35 N
- Retaining force: ≤ 30 N
- Actuation frequency: ≤ 7,000 per hour
- Actuation directions: 4
- Approach speed: ≤ 20 m/min
- B10d parameter: 2 x 10^6 switching cycles (small load)
- Type: Type 2 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Connection type: Cable gland, 1 x M20
- Conductor cross section: 0.34 mm² to 1.5 mm²
- Contamination rating: 3
- Switching principle: Slow action switching element
- Usage category: AC-15/DC-13 (IEC 60947-5-1)
- Rated operating current: 4 A (230 V AC), 4 A (24 V DC)
- Rated insulation voltage Ui: 250 V
- Rated impulse withstand voltage Uimp: 2,500 V
- Type of output: Electro-mechanical contacts
- Power consumption: ≤ 6 W
- Short-circuit protection: 4 A gG
- Switching voltage: ≥ 12 V DC
- Switching current: 1 mA (24 V DC)
- Solenoid operating voltage: 20.4 V DC to 26.4 V DC
- Switch-on time of magnet: 100%
- Mechanical life: 2 x 10^6 switching cycles
- Housing material: Glass-fiber reinforced thermoplastic
- Actuator head material: Plastic
- Enclosure rating: IP67
- Ambient operating temperature: –20 °C to +55 °C
- Storage temperature: –20 °C to +55 °C
- Dimensions (H x L x W): 120mm x 50mm x 60mm
- Weight: 0.45 kg
Key Features
- Electro-mechanical sensor principle with power to release locking
- Positive action N/C solenoid and door monitoring contacts
- Locking force up to 1,000 N compliant with EN ISO 14119
- Actuation frequency up to 7,000 per hour with 4 actuation directions
- IP67 rated enclosure for protection against dust and water
- Low coding level actuator for safety applications
- Safe state relies on external safety-related logic unit
- Cable gland connection with conductor cross section 0.34 mm² to 1.5 mm²
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety interlock systems and electrical wiring standards to ensure compliance and safety.
Applications
- Industrial safety interlocking for machinery and equipment
- Access control in hazardous areas
- Safety door locking in automated systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable glass-fiber reinforced thermoplastic housing reduces material waste
- Long mechanical life reduces replacement frequency and waste
- Low power consumption (≤ 6 W) supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK i15-MP0133 Electro-Mechanical Safety Lock is available for immediate purchase, ideal for industrial safety and access control applications.
