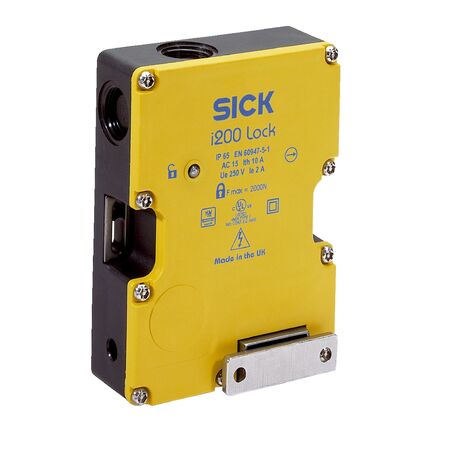

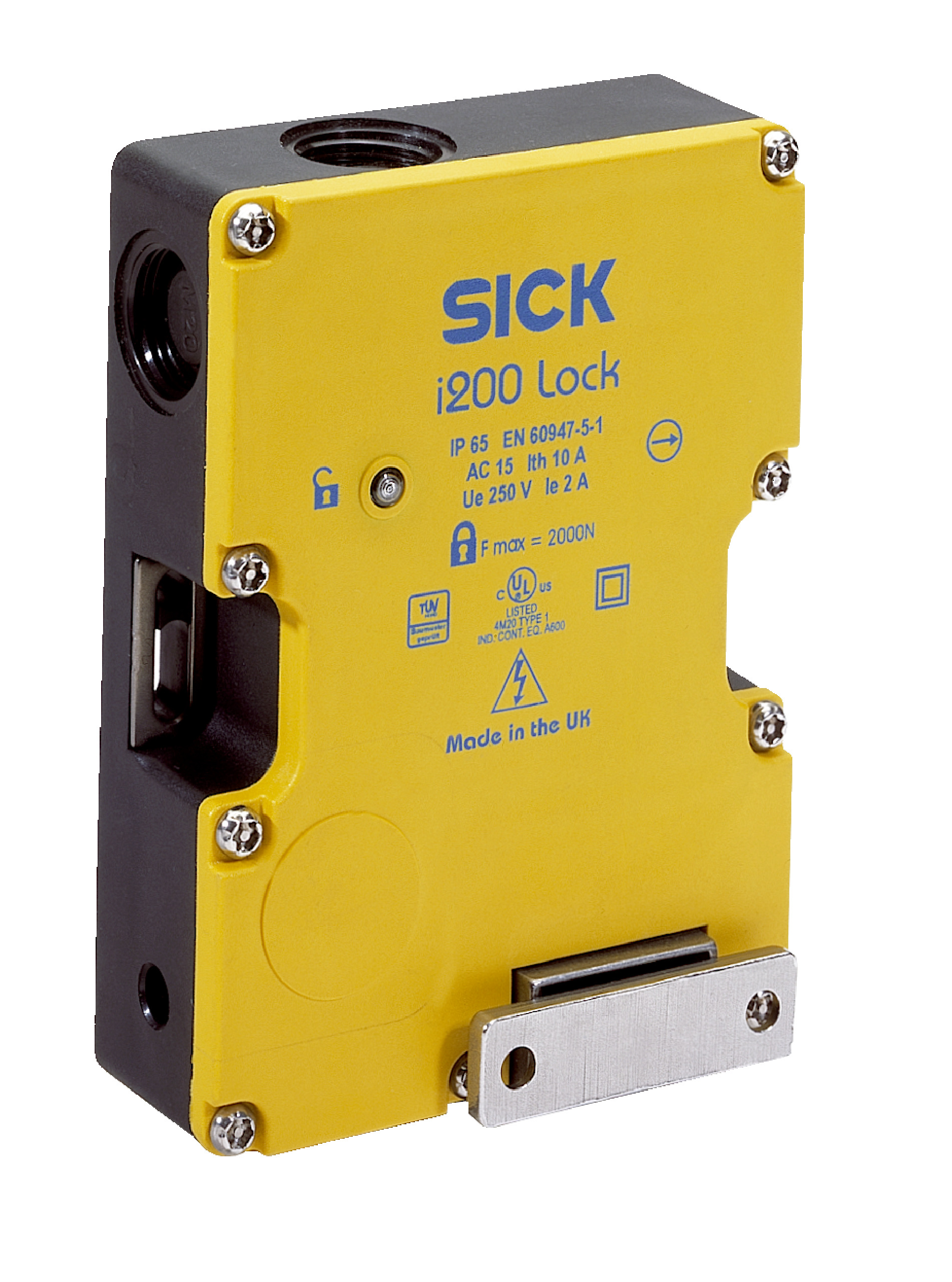

i200-E0323 Lock | Electro-Mechanical Safety Lock | 2600 N Locking Force | IP65 Rated | by SICK
The i200-E0323 Lock is an electro-mechanical safety lock designed for industrial applications, featuring a powerful locking force of up to 2,600 N and an IP65 rated enclosure for dust and water protection. Ideal for machinery interlocking and access control, this lock ensures operational safety with multiple monitoring contacts and an LED status display for real-time feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Electro-mechanical
- Locking force Fmax: 2,600 N (EN ISO 14119)
- Locking force FZh: 2,000 N (EN ISO 14119)
- Retaining force: ≤ 30 N
- Actuation frequency: ≤ 3,600 per hour
- Actuation directions: 3
- Approach speed: ≤ 10 m/min
- B10d parameter: 2 x 10^6 switching cycles (small load)
- Type: Type 2 (EN ISO 14119)
- Actuator coding level: Low coding level
- Safe state in fault: No internal fault detection; relies on external safety logic
- Connection type: Cable gland, 3 x M20
- Display elements: LEDs with status display
- Switching principle: Slow action switching element
- Usage category: AC-15/DC-13 (IEC 60947-5-1)
- Rated operating current: 3 A (240 V AC), 3 A (24 V DC)
- Rated insulation voltage Ui: 500 V
- Rated impulse withstand voltage Uimp: 2,500 V
- Type of output: Electro-mechanical contacts
- Power consumption: ≤ 7 W
- Short-circuit protection: 3 A gG
- Switching voltage: ≥ 5 V DC
- Switching current: 5 mA (5 V DC)
- Solenoid operating voltage: 20.4 V DC to 26.4 V DC
- Switch-on time of magnet: 100%
- Housing material: Glass-fiber reinforced polyester
- Mechanical life: 1 x 10^6 switching cycles
- Enclosure rating: IP65
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -20 °C to +60 °C
- Dimensions (H x L x W): 120mm x 80mm x 60mm
- Weight: 0.55 kg
Key Features
- Electro-mechanical locking with power to lock principle
- Locking force up to 2,600 N compliant with EN ISO 14119
- Multiple monitoring contacts for solenoid and door status
- LED status display for operational feedback
- IP65 rated enclosure for protection against dust and water
- Suitable for actuation speeds up to 10 m/min and frequency up to 3,600/h
- Low coding level actuator for safety applications
- Mechanical life of 1 million switching cycles
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety interlock systems and electrical wiring standards to ensure compliance and operational safety.
Applications
- Industrial safety interlocking for machinery and access control
- Safety locking in automated production lines
- Access control in hazardous areas requiring secure locking
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of ≤7 W supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK i200-E0323 Electro-Mechanical Power to Lock Safety Lock is available for immediate purchase, ideal for industrial safety and access control applications.
