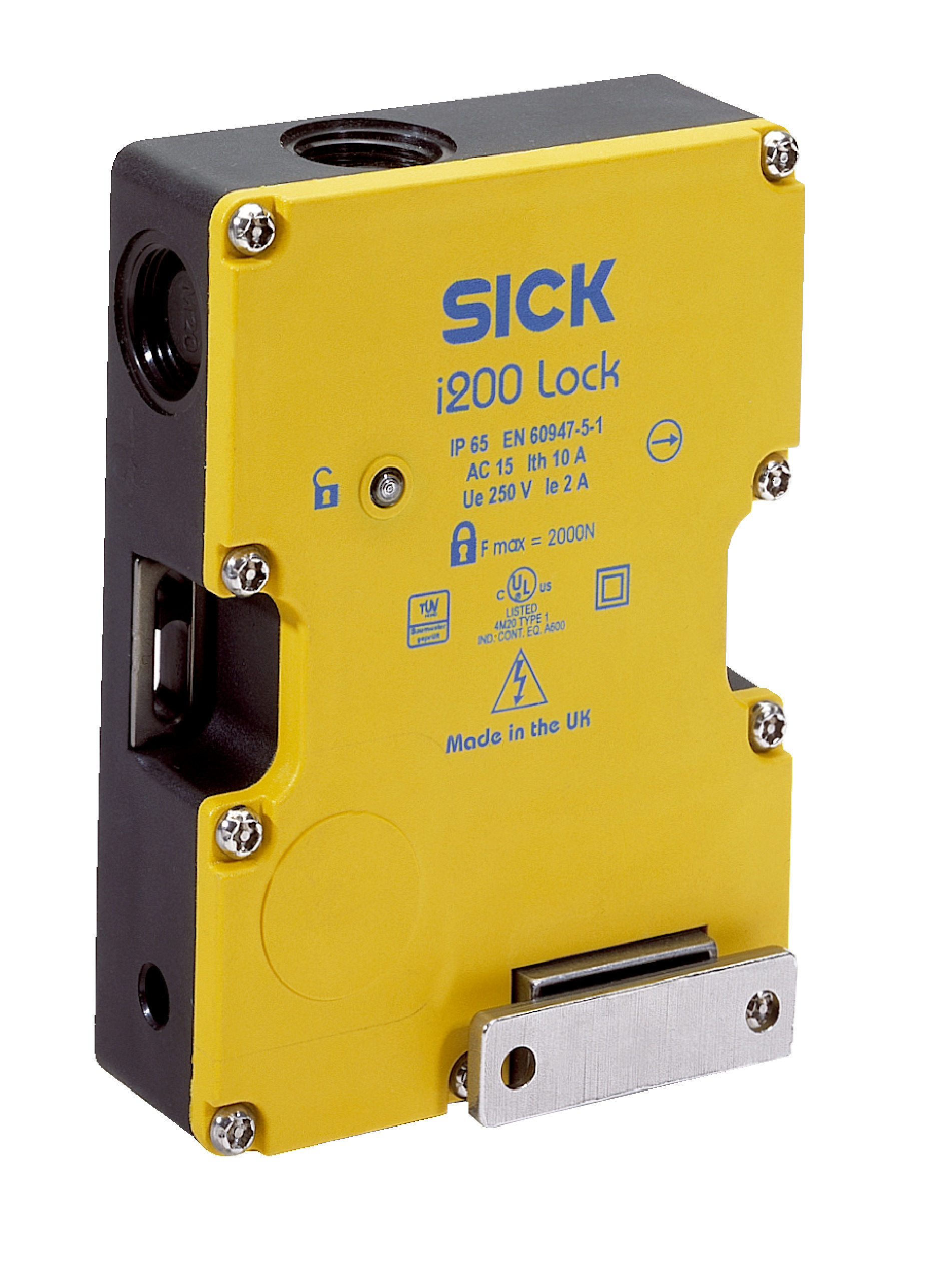

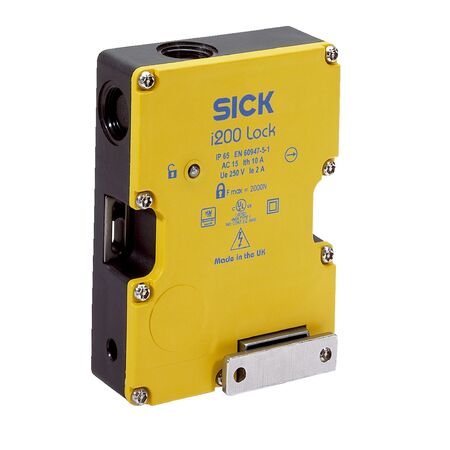

i200-M0323 Lock | Electro-Mechanical Safety Lock | 2600 N Locking Force | IP65 Rated | by SICK
The i200-M0323 Lock is an electro-mechanical safety lock designed for industrial applications, featuring a powerful locking force of up to 2,600 N and multiple monitoring contacts for enhanced safety. With an IP65 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for access control and safety interlocking in manufacturing settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Electro-mechanical
- Locking principle: Power to release
- Positive action N/C solenoid monitoring contacts: 1
- N/O solenoid monitoring contacts: 1
- Positive action N/C door monitoring contacts: 2
- N/O door monitoring contacts: 1
- Locking force Fmax: 2,600 N (EN ISO 14119)
- Locking force FZh: 2,000 N (EN ISO 14119)
- Retaining force: ≤ 30 N
- Actuation frequency: ≤ 3,600 per hour
- Actuation directions: 3
- Approach speed: ≤ 10 m/min
- B10d parameter: 2 x 10^6 switching cycles (small load)
- Type: Type 2 (EN ISO 14119)
- Actuator coding level: Low coding level (EN ISO 14119)
- Safe state in event of fault: No internal fault detection; fault detection by connected safety logic unit
- Connection type: Cable gland, 3 x M20
- Display elements: LEDs with status display
- Switching principle: Slow action switching element
- Usage category: AC-15/DC-13 (IEC 60947-5-1)
- Rated operating current: 3 A (240 V AC), 3 A (24 V DC)
- Rated insulation voltage Ui: 500 V
- Rated impulse withstand voltage Uimp: 2,500 V
- Type of output: Electro-mechanical contacts
- Power consumption: ≤ 7 W
- Short-circuit protection: 3 A gG
- Switching voltage: ≥ 5 V DC
- Switching current: 5 mA (5 V DC)
- Solenoid operating voltage: 20.4 V DC to 26.4 V DC
- Switch-on time of magnet: 100%
- Housing material: Glass-fiber reinforced polyester
- Mechanical life: 1 x 10^6 switching cycles
- Enclosure rating: IP65
- Ambient operating temperature: –20 °C to +60 °C
- Storage temperature: –20 °C to +60 °C
- Dimensions (H x L x W): 120mm x 40mm x 60mm
- Weight: 0.55 kg
Key Features
- Electro-mechanical sensor principle with power to release locking
- Locking force up to 2,600 N compliant with EN ISO 14119
- Multiple monitoring contacts for solenoid and door status
- LED status display for operational feedback
- IP65 rated enclosure for harsh environments
- Low coding level actuator for safety applications
- Slow action switching element with rated operating current of 3 A at 240 V AC and 24 V DC
- Mechanical life of 1 million switching cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety interlock systems and electrical wiring standards to ensure compliance and safety.
Applications
- Industrial safety door locking
- Access control in machinery and automation
- Safety interlocking in manufacturing environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of ≤7 W supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK i200-M0323 Electro-Mechanical Safety Lock is available for immediate purchase, ideal for industrial safety door locking and access control applications.
