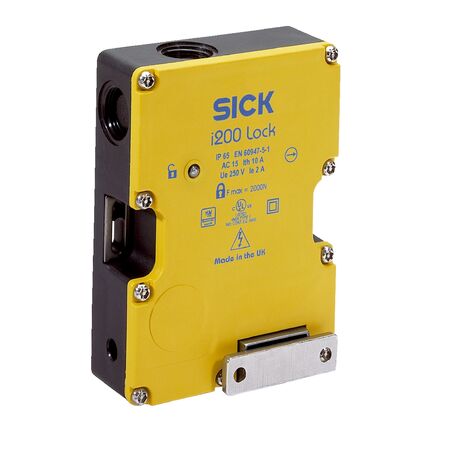

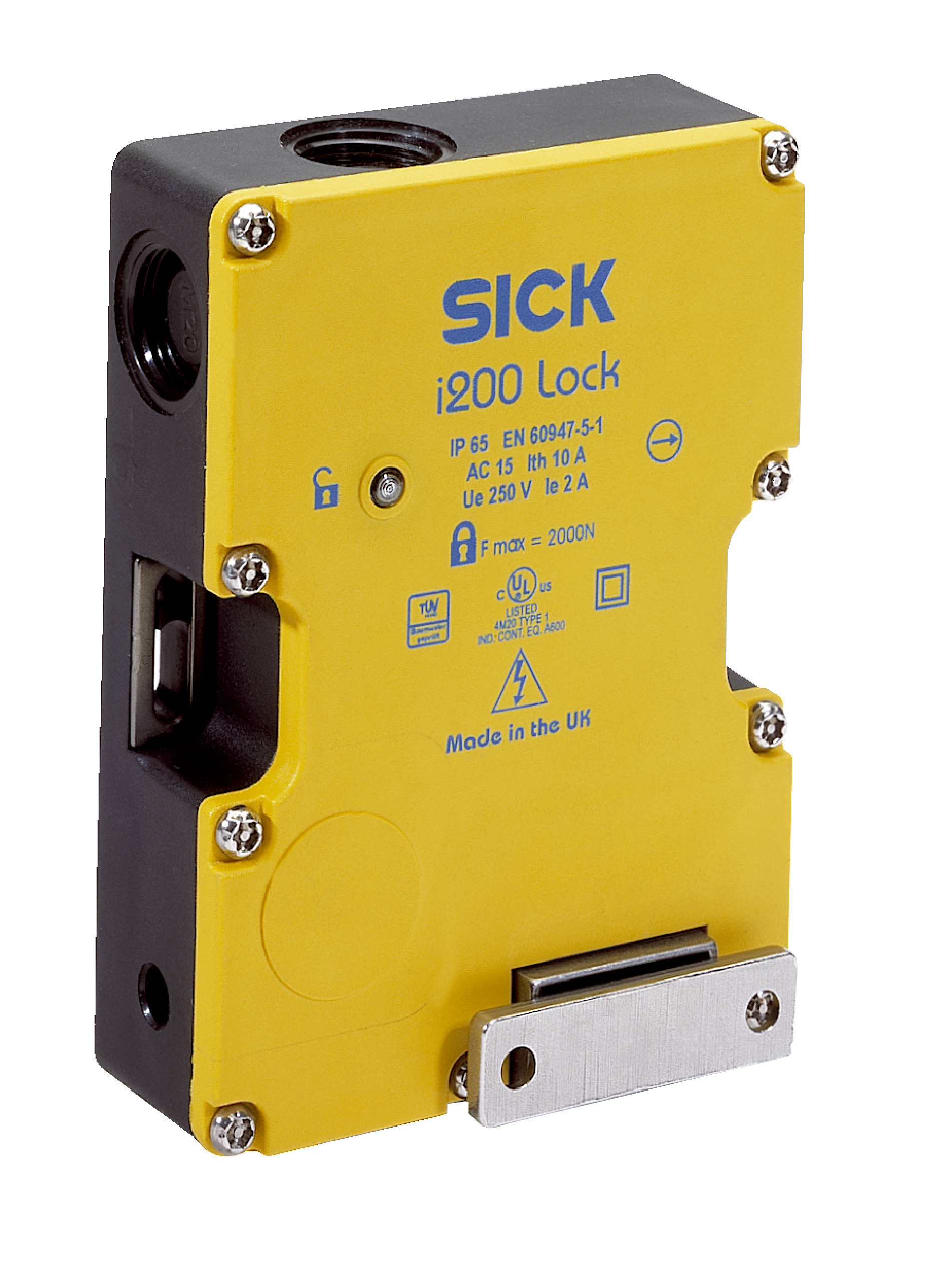

i200-M0413 Lock | Electro-Mechanical Safety Lock | 2600 N Locking Force | IP65 Rated | by SICK
The i200-M0413 Lock is an electro-mechanical safety lock designed for industrial applications, featuring a powerful locking force of up to 2,600 N and an IP65 rated enclosure for harsh environments. Ideal for safety interlocking in machinery and access control, this lock ensures reliable operation with positive action monitoring contacts and a long mechanical life of 1 million cycles.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Electro-mechanical
- Locking principle: Power to release
- Locking force Fmax: 2,600 N (EN ISO 14119)
- Locking force FZh: 2,000 N (EN ISO 14119)
- Retaining force: ≤ 30 N
- Actuation frequency: ≤ 3,600 per hour
- Actuation directions: 3
- Approach speed: ≤ 10 m/min
- Positive action N/C solenoid monitoring contacts: 2
- N/O solenoid monitoring contacts: 0
- Positive action N/C door monitoring contacts: 2
- N/O door monitoring contacts: 1
- Switching principle: Slow action switching element
- Usage category: AC-15/DC-13 (IEC 60947-5-1)
- Rated operating current: 3 A (240 V AC), 3 A (24 V DC)
- Rated insulation voltage Ui: 500 V
- Rated impulse withstand voltage Uimp: 2,500 V
- Power consumption: ≤ 7 W
- Short-circuit protection: 3 A gG
- Switching voltage: ≥ 5 V DC
- Switching current: 5 mA (5 V DC)
- Solenoid operating voltage: 20.4 V DC to 26.4 V DC
- Switch-on time of magnet: 100%
- Mechanical life: 1 million switching cycles
- Enclosure rating: IP65
- Ambient operating temperature: –20 °C to +60 °C
- Storage temperature: –20 °C to +60 °C
- Dimensions (H x L x W): 120mm x 80mm x 60mm
- Weight: 0.55 kg
Key Features
- Electro-mechanical sensor principle with power to release locking
- Locking force up to 2,600 N compliant with EN ISO 14119
- Positive action N/C solenoid and door monitoring contacts
- LED status display for operational feedback
- IP65 rated enclosure for harsh environments
- Low coding level actuator for safety applications
- Slow action switching element with rated operating current of 3 A at 240 V AC or 24 V DC
Professional Installation Requirements
- Installation must be performed by a qualified technician familiar with safety interlock systems and electrical wiring standards to ensure compliance and safety.
Applications
- Industrial safety interlocking for machinery and equipment
- Access control in hazardous areas
- Safety door locking in automated systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable glass-fiber reinforced polyester housing extends product life and reduces waste
- Low power consumption of ≤7 W reduces energy usage
- High mechanical life of 1 million switching cycles minimizes replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK i200-M0413 Electro-Mechanical Safety Lock is available for immediate purchase, ideal for industrial safety and access control applications.
