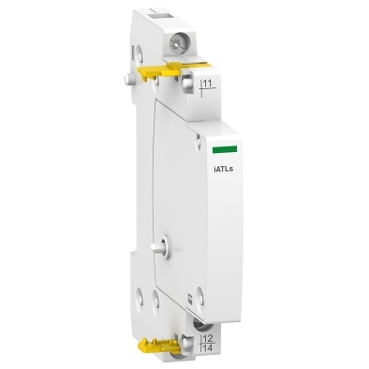

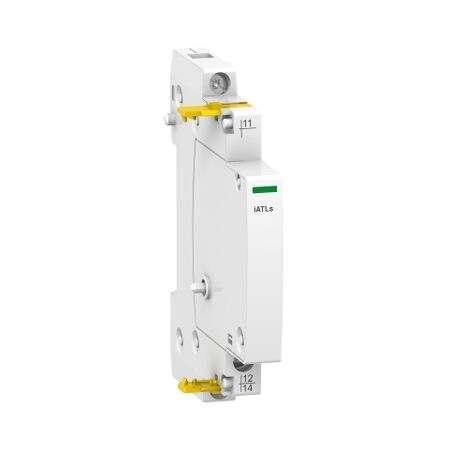

IATLS 24...240VAC-VDC Indication AUX | LED Status Display | DIN Rail Mountable | by Clipsal
The IATLS 24...240VAC-VDC Indication AUX is designed for seamless monitoring of Acti 9 circuit breakers, featuring a wide voltage range and a compact DIN rail mountable design. With an LED status display, it provides real-time feedback, making it ideal for electrical distribution boards and industrial automation panels. Perfect for licensed electricians, this module enhances efficiency and supports energy management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IATLS 24...240VAC-VDC Indication AUX | LED Status Display | DIN Rail Mountable | by Clipsal
Brand: Clipsal
SKU: SCHA9C15405
Alternatively Known As: Acti 9 Indication Auxiliary, Remote Indication Module, SCHA9C15405, Clipsal Indication AUX, Acti 9 IATLS
Technical Specifications
- Operating voltage: 24...240V AC/DC
- Mounting: DIN rail
- Indication: LED status display
- Compatibility: Acti 9 circuit breakers and accessories
- Operating temperature: -25°C to +60°C
- IP rating: IP20
- Dimensions (H x L x W): 85mm x 70mm x 18mm
- Weight: 0.1 kg
Key Features
- Wide voltage range: 24 to 240V AC/DC
- Remote indication for Acti 9 circuit breakers
- Compact DIN rail mountable design
- LED status indication for easy monitoring
- Compatible with Acti 9 system accessories
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- Electrical distribution boards
- Industrial automation panels
- Commercial and residential switchboards
- Remote status indication for circuit breakers
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient monitoring, reducing unnecessary maintenance trips
- Supports energy management by providing real-time status feedback
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal IATLS 24...240VAC-VDC Indication AUX SCHA9C15405 is available for immediate purchase. Ideal for electrical switchboards and automation panels requiring remote status indication.
