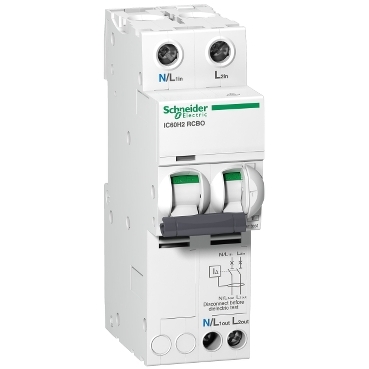

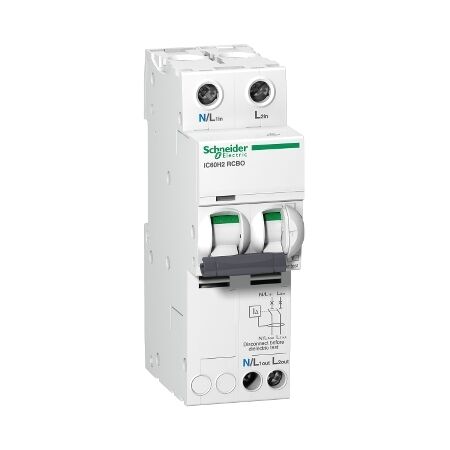

IC60 RCBO 2P 0.03A | 16A Rated Current | Type A Protection | DIN Rail Mount | @Pack of 1 | by Clipsal
The IC60 RCBO 2P 0.03A is a reliable residual current circuit breaker designed for effective protection against electric shock. With a rated current of 16A and a tripping sensitivity of 30mA, it ensures safety in residential, commercial, and light industrial applications. Its compact DIN rail mount design and visual trip indicator make installation and monitoring straightforward, providing peace of mind for users.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IC60 RCBO 2P 0.03A | 16A Rated Current | Type A Protection | DIN Rail Mount | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9D11216
Alternatively Known As: Clipsal RCBO, Residual Current Circuit Breaker with Overcurrent Protection, 2 Pole RCBO, 16A RCBO, SCHA9D11216
Technical Specifications
- Rated current: 16A
- Poles: 2 (active and neutral)
- Residual current sensitivity: 30mA (0.03A)
- Type: A (detects AC and pulsating DC faults)
- Rated voltage: 230/400V AC
- Breaking capacity: 6000A
- Mounting: DIN rail
- Trip indicator: Yes
- Dimensions (H x L x W): 85mm x 75mm x 36mm
- Weight: 0.25 kg
Key Features
- Combined residual current device (RCD) and miniature circuit breaker (MCB) in one unit
- 2 pole (2P) protection for both active and neutral conductors
- Rated current: 16A
- Tripping sensitivity: 30mA (0.03A) for personal protection against electric shock
- Type A: Detects AC and pulsating DC residual currents
- Voltage independent operation
- Compact DIN rail mount design
- Visual trip indicator
Professional Installation Requirements
- Must be installed by a licensed electrician in accordance with Australian standards and local regulations.
Applications
- Residential: Protection of final circuits in homes
- Commercial: Offices, retail, and hospitality electrical distribution boards
- Industrial: Small machinery and equipment requiring circuit and earth leakage protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 61009.1 – Residual current operated circuit-breakers with integral overcurrent protection
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and electric shock
- Long operational life reduces replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal IC60 RCBO 2P 0.03A VD A C16A (SCHA9D11216) is available for immediate purchase. Ideal for residential, commercial, and light industrial circuit protection.
