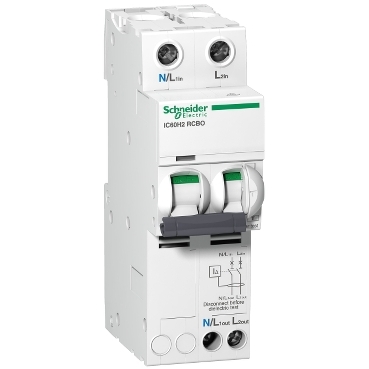

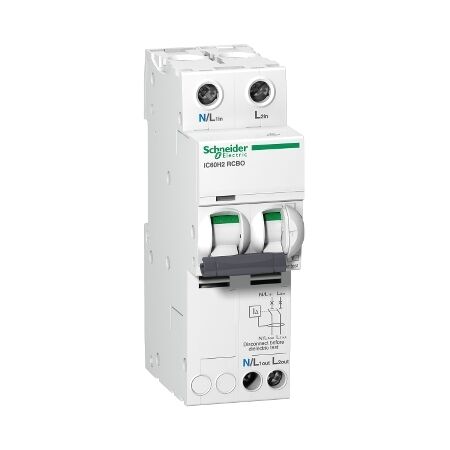

IC60 RCBO 2P 0.03A | 20A Rated Current | Type A Protection | DIN Rail Mount | @Pack of 1 | by Clipsal
The IC60 RCBO 2P 0.03A is a reliable residual current circuit breaker designed for both residential and commercial applications. With a rated current of 20A and Type A protection for AC and pulsating DC faults, it ensures safety against earth leakage and overloads. Its compact DIN rail mount design and visual trip indication make it an essential component for electrical distribution boards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IC60 RCBO 2P 0.03A | 20A Rated Current | Type A Protection | DIN Rail Mount | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9D11220
Alternatively Known As: IC60 RCBO, Clipsal RCBO 20A, Residual Current Circuit Breaker with Overcurrent Protection, SCHA9D11220, 2 Pole RCBO, 20A RCBO, Clipsal A9D11220
Technical Specifications
- Rated current: 20A
- Poles: 2P
- Residual current sensitivity: 30mA (0.03A)
- Type: A (detects AC and pulsating DC faults)
- Rated voltage: 230/400V AC
- Breaking capacity: 6000A
- Mounting: DIN rail
- Trip indication: Yes
- Standards: IEC/EN 61009-1
- Dimensions (H x L x W): 85mm x 75mm x 36mm
- Weight: 0.25 kg
Key Features
- Combined residual current device (RCD) and miniature circuit breaker (MCB) in one unit
- 2 pole (2P) protection
- Rated current: 20A
- Residual current sensitivity: 30mA (0.03A)
- Type A protection for AC and pulsating DC faults
- Voltage independent operation
- Compact DIN rail mount design
- Visual trip indication
Professional Installation Requirements
- Must be installed by a licensed electrician in accordance with Australian electrical standards.
Applications
- Residential and commercial electrical distribution boards
- Protection of final circuits against earth leakage, overload, and short-circuit
- Suitable for lighting and power circuits
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 61009.1 – Residual current operated circuit-breakers with integral overcurrent protection
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and electrical hazards
- Long operational life reduces replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal IC60 RCBO 2P 0.03A VD A C20A (SCHA9D11220) is available for immediate purchase. Ideal for residential and commercial circuit protection applications.
