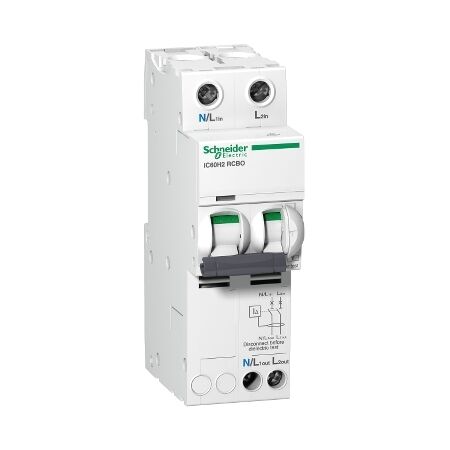

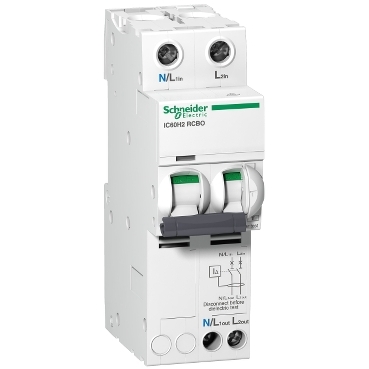

IC60 RCBO 2P 0.03A | 25A Rated Current | 30mA Tripping Sensitivity | DIN Rail Mount | @Pack of 1 | by Clipsal
The IC60 RCBO 2P 0.03A is a reliable residual current circuit breaker designed for effective electrical protection. With a rated current of 25A and a tripping sensitivity of 30mA, it ensures personal safety against electric shock. Ideal for residential, commercial, and light industrial applications, this compact DIN rail mount device combines RCD and MCB functionalities for enhanced circuit protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IC60 RCBO 2P 0.03A | 25A Rated Current | 30mA Tripping Sensitivity | DIN Rail Mount | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9D11225
Alternatively Known As: Clipsal RCBO, Residual Current Circuit Breaker with Overcurrent, 2 Pole RCBO, SCHA9D11225, 25A RCBO, Clipsal IC60 RCBO
Technical Specifications
- Rated current: 25A
- Poles: 2 (phase + neutral)
- Tripping sensitivity: 30mA (Type A)
- Voltage: 230/400V AC
- Breaking capacity: 6000A
- Mounting: DIN rail
- Standards: IEC/EN 61009-1
- Operating temperature: -25°C to +60°C
- Dimensions (H x L x W): 85mm x 75mm x 36mm
- Weight: 0.25 kg
Key Features
- Combined residual current device (RCD) and miniature circuit breaker (MCB) in one unit
- 2 pole (2P) configuration for phase and neutral protection
- Rated current: 25A
- Tripping sensitivity: 30mA (0.03A) for personal protection against electric shock
- Type A: Detects AC and pulsating DC earth leakage currents
- Voltage rating: 230/400V AC
- High breaking capacity for reliable circuit protection
- Compact DIN rail mount design
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Residential: Protection of final sub-circuits in homes
- Commercial: Offices, retail, and hospitality electrical distribution boards
- Industrial: Light industrial switchboards requiring earth leakage and overload protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 61009.1 – Residual current operated circuit-breakers with integral overcurrent protection
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and electric shock
- Long service life reduces replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal IC60 RCBO 2P 0.03A VD A C25A (SCHA9D11225) is available for immediate purchase. Ideal for residential, commercial, and light industrial electrical protection applications.
