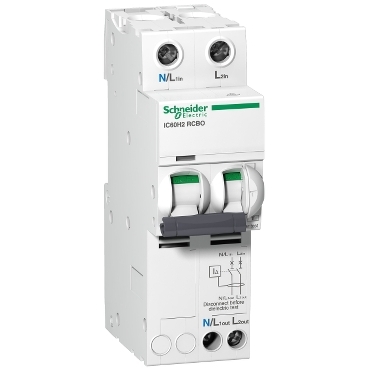

IC60 RCBO 2P 0.03A | 32A Rated Current | Type A Earth Leakage Protection | DIN Rail Mountable | @Pack of 1 | by Clipsal
The IC60 RCBO 2P 0.03A is a reliable residual current breaker designed for effective protection against earth leakage. With a rated current of 32A and a sensitivity of 30mA, it ensures safety in residential, commercial, and light industrial applications. Its compact DIN rail mountable design and visual trip indication make it ideal for easy installation and fault identification.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IC60 RCBO 2P 0.03A | 32A Rated Current | Type A Earth Leakage Protection | DIN Rail Mountable | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9D11232
Alternatively Known As: RCBO 32A 2 Pole, Clipsal RCBO, Residual Current Breaker with Overcurrent, SCHA9D11232, 32A RCBO, 2P RCBO 30mA
Technical Specifications
- Rated current: 32A
- Number of poles: 2 (phase + neutral)
- Residual current sensitivity: 30mA (0.03A)
- Type A: Detects AC and pulsating DC earth leakage
- Rated voltage: 230/400V AC
- Breaking capacity: 6000A
- Mounting: DIN rail
- Trip indication: Yes
- Standards: IEC/EN 61009-1
- Dimensions (H x L x W): 85mm x 75mm x 36mm
- Weight: 0.25 kg
Key Features
- Combined residual current device (RCD) and miniature circuit breaker (MCB) in one unit
- 2 pole (2P) design for phase and neutral protection
- Rated current: 32A
- Tripping sensitivity: 30mA (0.03A) for personal protection
- Type A: Detects AC and pulsating DC earth leakage currents
- Voltage independent operation
- Compact DIN rail mountable design
- Visual trip indication for easy fault identification
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules and local regulations.
Applications
- Residential: Protection of final sub-circuits in homes
- Commercial: Offices, retail, and hospitality electrical distribution boards
- Industrial: Light industrial switchboards requiring combined overload and earth leakage protection
Standards & Compliance
- Complies with AS/NZS 61009.1 for Residual current operated circuit-breakers with integral overcurrent protection (RCBOs)
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and electric shock
- Long service life reduces replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal IC60 RCBO 2P 0.03A VD A C32A (SCHA9D11232) is available for immediate purchase. Ideal for residential, commercial, and light industrial switchboard protection.
