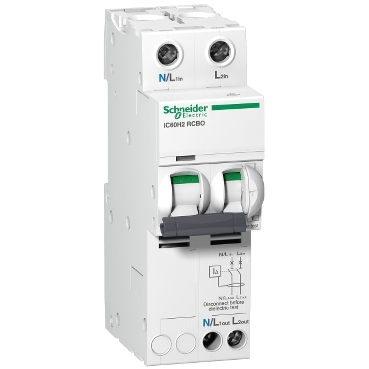

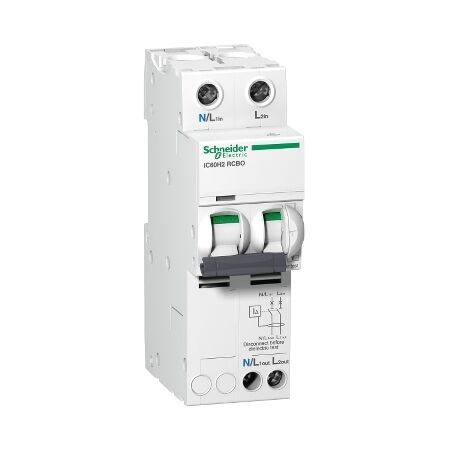

IC60 RCBO 2P 30mA Type A | 10A Rated Current | Compact DIN Rail Mount | by Clipsal
The IC60 RCBO 2P 30mA Type A is designed for effective electrical protection, featuring a 10A rated current and a compact DIN rail mount design. Ideal for residential, commercial, and light industrial applications, it combines residual current device and miniature circuit breaker functionalities, ensuring safety against earth leakage and overloads.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IC60 RCBO 2P 30mA Type A | 10A Rated Current | Compact DIN Rail Mount | by Clipsal
Brand: Clipsal
SKU: SCHA9D11210
Alternatively Known As: IC60 RCBO, Clipsal RCBO 2 Pole, Residual Current Breaker with Overcurrent, SCHA9D11210, 10A RCBO, Clipsal 30mA RCBO
Technical Specifications
- Rated current: 10A
- Poles: 2 (double pole)
- Rated residual operating current: 30mA (0.03A)
- Type: A (detects AC and pulsating DC faults)
- Voltage: 230/400V AC
- Breaking capacity: 6kA
- Mounting: DIN rail
- Trip indicator: Yes
- Standards: IEC/EN 61009-1
- Dimensions (H x L x W): 85mm x 75mm x 36mm
- Weight: 0.25 kg
Key Features
- Combined residual current device (RCD) and miniature circuit breaker (MCB) in one unit
- 2 pole (2P) protection for both active and neutral conductors
- Rated current: 10A
- Rated residual operating current: 30mA (0.03A) for personal protection
- Type A sensitivity: Detects AC and pulsating DC earth leakage currents
- Voltage: 230/400V AC
- Breaking capacity: 6000A (6kA)
- Compact DIN rail mount design
- Visual trip indicator for easy fault identification
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Residential: Protection of final sub-circuits in homes
- Commercial: Offices, retail, and hospitality electrical distribution boards
- Industrial: Light industrial switchboards requiring earth leakage and overload protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 61009.1 – Residual current operated circuit-breakers with integral overcurrent protection
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and electric shock
- Compact design minimizes material use and waste
- Long operational life reduces replacement frequency
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal IC60 RCBO 2P 10A 30mA Type A (SCHA9D11210) is available for immediate purchase. Ideal for residential, commercial, and light industrial switchboard protection.
