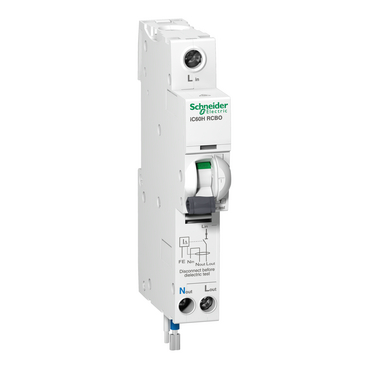

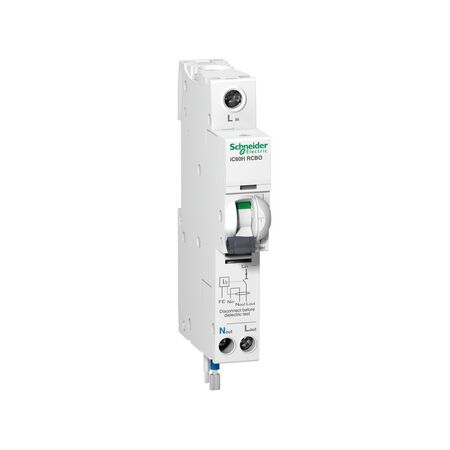

IC60H RCBO 1P+N 10A 10mA | C Curve Tripping | DIN Rail Mount | by Clipsal
The IC60H RCBO 1P+N 10A 10mA is a combined circuit breaker and residual current device, designed for effective electrical protection in residential and commercial applications. With a C curve tripping characteristic and 10mA earth leakage sensitivity, it ensures safety against overloads and short circuits. Ideal for licensed electricians, this compact DIN rail mount device enhances safety and minimizes electrical faults.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IC60H RCBO 1P+N 10A 10mA | C Curve Tripping | DIN Rail Mount | by Clipsal
Brand: Clipsal
SKU: SCHA9D10810
Alternatively Known As: Clipsal RCBO, 10A RCBO, Earth Leakage Circuit Breaker, Residual Current Breaker with Overcurrent, SCHA9D10810, iC60H RCBO
Technical Specifications
- Type: RCBO (Residual Current Circuit Breaker with Overcurrent protection)
- Poles: 1P+N (Single phase + Neutral)
- Rated Current: 10A
- Earth Leakage Sensitivity: 10mA
- Tripping Curve: C
- Rated Voltage: 240V AC
- Breaking Capacity: 6kA
- Mounting: DIN rail
- Frequency: 50/60Hz
- Terminal Capacity: 1-16mm²
- Dimensions (H x L x W): 85mm x 75mm x 18mm
- Weight: 0.15 kg
Key Features
- Combined circuit breaker and residual current device (RCBO)
- 1 pole + neutral (1P+N) configuration
- C curve tripping characteristic for general purpose protection
- Rated current: 10A
- Earth leakage sensitivity: 10mA for enhanced protection
- Rated voltage: 240V AC
- Compact DIN rail mount design
- Provides both overload, short circuit, and earth leakage protection
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Residential electrical distribution boards
- Commercial and industrial switchboards
- Protection of lighting and power circuits
- Environments requiring high sensitivity earth leakage protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 61009 – Residual current operated circuit-breakers with integral overcurrent protection
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and electric shock
- Minimizes electrical faults, contributing to safer and more energy-efficient installations
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal IC60H RCBO 1P+N 10A 10mA (SCHA9D10810) is available for immediate purchase. Ideal for residential, commercial, and industrial electrical protection applications.
