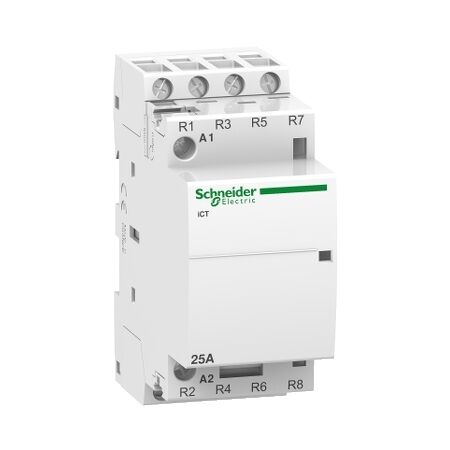

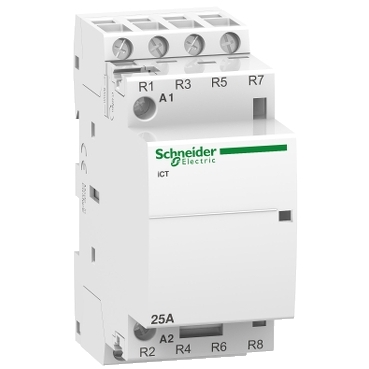

ICT 25A 4NC 24VAC Contactor | DIN Rail Mountable | Long Electrical Life | by Clipsal
The ICT 25A 4NC 24VAC Contactor is designed for reliable control of electrical loads in commercial and industrial applications. With a robust 25A rated current and 4 normally closed contacts, it ensures versatile operation for lighting, HVAC, and motor control circuits. Its compact DIN rail mountable design and long electrical life make it an ideal choice for efficient automation solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ICT 25A 4NC 24VAC Contactor | DIN Rail Mountable | Long Electrical Life | by Clipsal
Brand: Clipsal
SKU: SCHA9C20137
Alternatively Known As: Clipsal 25A Contactor, 4NC 24VAC Contactor, SCHA9C20137, Industrial Contactor, DIN Rail Contactor
Technical Specifications
- Rated Current: 25A
- Contact Configuration: 4 Normally Closed (NC)
- Coil Voltage: 24VAC 50Hz
- Mounting: DIN rail
- Electrical Life: 1,000,000 operations
- Mechanical Life: 10,000,000 operations
- Operating Temperature: -5°C to +60°C
- Insulation Voltage: 690V
- Dimensions (H x L x W): 80mm x 60mm x 45mm
- Weight: 0.35 kg
Key Features
- 25A rated current for reliable switching of medium loads
- 4 Normally Closed (NC) contacts for versatile control applications
- 24VAC 50Hz coil voltage for compatibility with standard control circuits
- Compact DIN rail mountable design
- Long electrical and mechanical life
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules and local regulations.
Applications
- Lighting control in commercial and industrial buildings
- HVAC systems
- Motor control circuits
- Switching of electrical loads in automation panels
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient control of electrical loads, reducing unnecessary energy consumption
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal ICT 25A 4NC 24VAC 50Hz Contactor (SCHA9C20137) is available for immediate purchase. Ideal for commercial and industrial electrical control applications.
