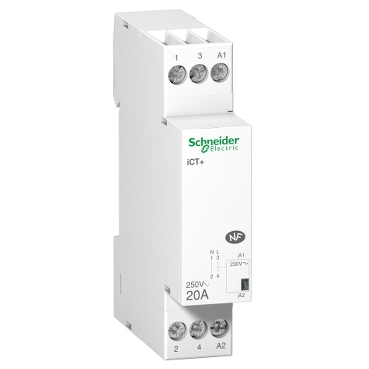

ICT PLUS 20A 1P UC 230VAC Contactor | DIN Rail Mountable | Low Power Consumption | Silent Operation | @Pack of 1 | by Clipsal
The ICT PLUS 20A 1P UC 230VAC Contactor is designed for reliable lighting and HVAC control in both residential and commercial settings. With a 20A current rating and a compact DIN rail mountable design, it ensures straightforward circuit integration and energy efficiency. Ideal for automation panels, this contactor operates silently, making it perfect for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ICT PLUS 20A 1P UC 230VAC Contactor | DIN Rail Mountable | Low Power Consumption | Silent Operation | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9C15030
Alternatively Known As: Clipsal contactor, 20A contactor, 1 pole contactor, DIN rail contactor, SCHA9C15030, 230V AC contactor, lighting contactor, Clipsal ICT PLUS contactor
Technical Specifications
- Rated operational current: 20A
- Number of poles: 1P (single pole)
- Coil voltage: 230VAC universal coil
- Mounting: DIN rail
- Frequency: 50/60Hz
- Electrical endurance: 100,000 cycles
- Mechanical endurance: 1,000,000 cycles
- Operating temperature: -20°C to +50°C
- IP20 protection rating
- Dimensions (H x L x W): 85mm x 60mm x 18mm
- Weight: 0.25 kg
Key Features
- 20A current rating for reliable switching of electrical loads
- Single pole (1P) design for straightforward circuit integration
- 230VAC universal coil for compatibility with standard supply voltages
- Compact DIN rail mountable for easy installation in distribution boards
- Low power consumption coil for energy efficiency
- Silent operation suitable for residential and commercial environments
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules and local regulations.
Applications
- Lighting control in commercial and residential buildings
- Switching of heating, ventilation, and air conditioning (HVAC) systems
- Automation panels
- Industrial equipment control
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption coil reduces energy usage
- Long operational life minimizes replacement waste
- Supports automation for efficient energy management
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal ICT PLUS 20A 1P UC 230VAC Contactor (SCHA9C15030) is available for immediate purchase. Ideal for lighting, HVAC, and automation control in residential and commercial installations.
