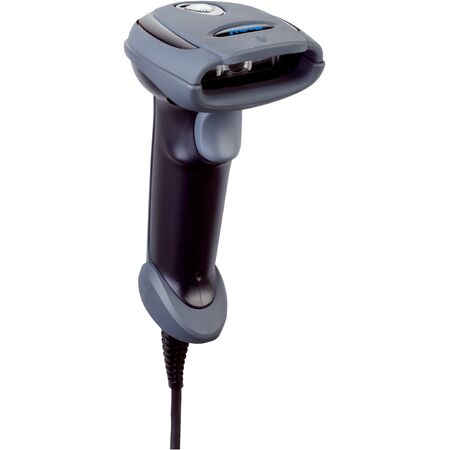

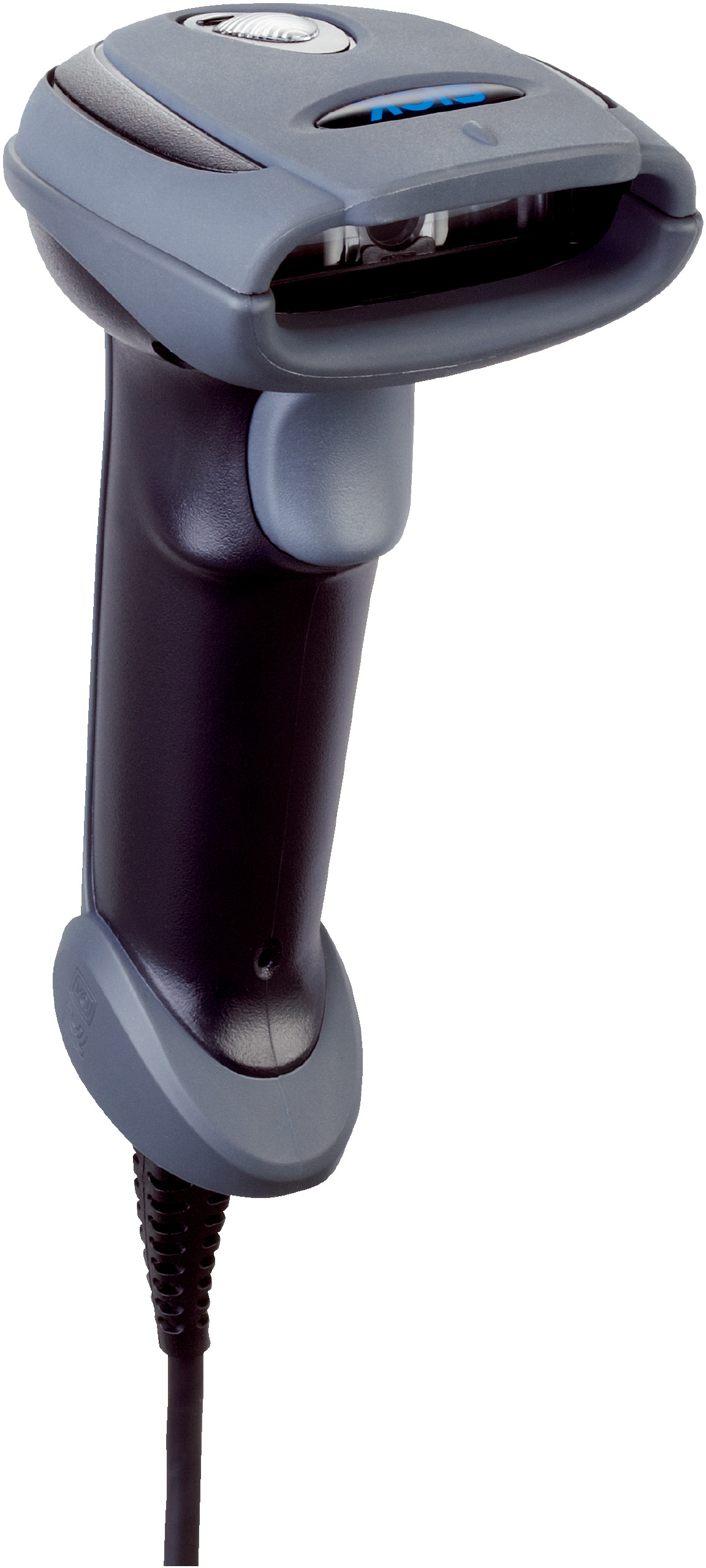

IDM140-411S RS-232 Kit | Visible Red LED | 20 mm to 850 mm Reading Distance | IP52 Rated | by SICK
The IDM140-411S RS-232 Kit is designed for efficient barcode scanning in industrial environments, featuring a visible red LED light source and a reading distance of 20 mm to 850 mm. With a scanning frequency of up to 500 Hz and support for various 1D and stacked barcode types, this kit is perfect for logistics and manufacturing applications, ensuring reliable performance and integration with multiple industrial systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: Visible red LED, 630 nm
- Reading distance: 20 mm to 850 mm
- Scanning frequency: ≤ 500 Hz
- Code resolution: ≥ 0.076 mm
- Supply voltage: 5 V DC ± 10%
- Current consumption: 180 mA operation, 80 mA standby
- Enclosure rating: IP52
- Weight: 157 g without cable
- Readable code structures: 1D codes and stacked codes
- Supported barcodes: Standard and Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, PDF417, MicroPDF417, Codablock F, Composite, and various postal codes
- Interfaces: RS-232 TTL, Ethernet (TCP/IP), PROFINET, EtherCAT, PROFIBUS DP (via external modules)
- Indicators: 2 LEDs for operational status and good read, acoustic beeper (switchable)
- Shock resistance: 25 drops from 1.8 m on concrete
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Relative humidity: up to 95%, non-condensing
- Ambient light immunity: 100,000 lx
- Dimensions (H x L x W): 157mm x 98mm x 71mm
- Weight: 0.157 kg
Key Features
- Visible red LED light source at 630 nm
- Reading distance from 20 mm to 850 mm
- Scanning frequency up to 500 Hz
- High code resolution of at least 0.076 mm
- Supports a wide range of 1D and stacked barcode types
- IP52 rated enclosure for dust and water protection
- Shock resistant to 25 drops from 1.8 m height
- Multiple interface options including RS-232 TTL, Ethernet, PROFINET, EtherCAT, PROFIBUS DP
- Optical and acoustic indicators for operational status and good reads
- Configuration via IDM Setup Tool software
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper integration with industrial systems and compliance with electrical standards.
Applications
- Standard barcode scanning applications in industrial environments
- Reading 1D and stacked barcodes for logistics and manufacturing
- Integration with Ethernet, PROFINET, EtherCAT, PROFIBUS DP fieldbus systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption with 5 V DC supply voltage
- Complies with China-RoHS environmental standards
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now
The SICK IDM140-411S RS-232 Kit is available for immediate purchase, ideal for industrial barcode scanning and automation applications.
