Trade Discount 20%

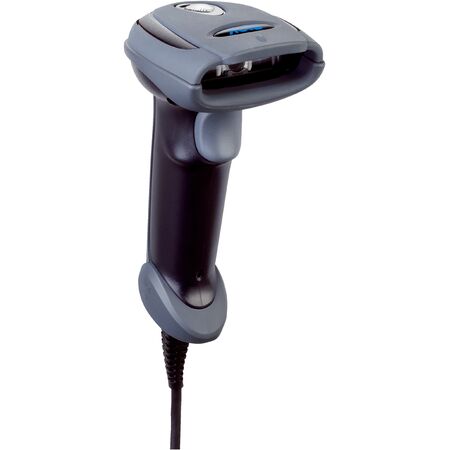

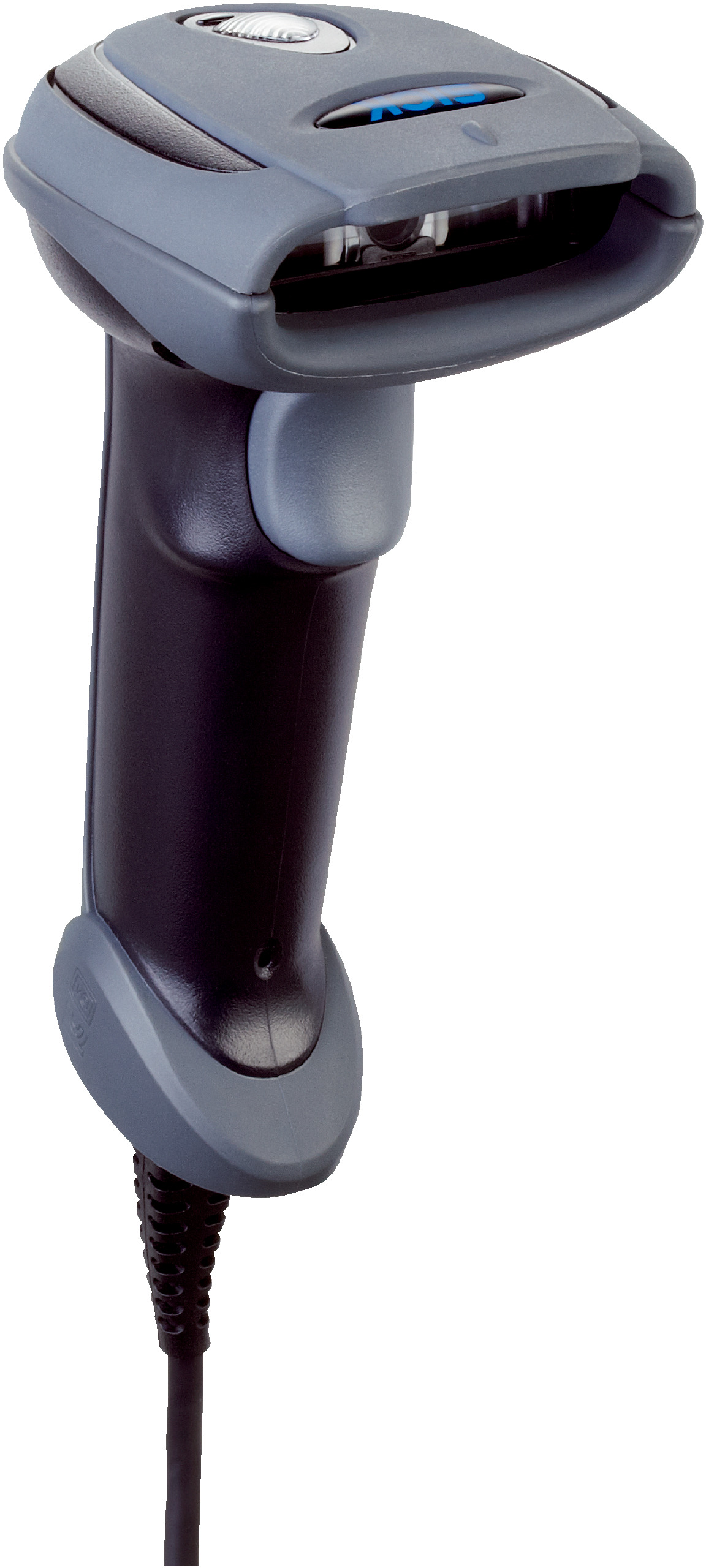

IDM140-411S USB Kit | Standard Range Scanning | IP52 Rated | USB Interface | by SICK
The IDM140-411S USB Kit is designed for standard barcode scanning applications in industrial and commercial environments. With a scanning distance of 20 mm to 850 mm and support for a wide range of 1D and stacked barcode types, this scanner ensures reliable performance. Its IP52 rated enclosure provides dust and water protection, making it a durable choice for various settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 5 V DC, ±10%
- Current consumption: 180 mA during operation, 80 mA standby
- Enclosure rating: IP52
- Weight: 157 g without cable
- Readable code structures: 1D codes and stacked codes
- Supported barcode types include Code 128, GS1-128, UPC-A, EAN13, Codabar, Code 39, and many others
- Optical indicators: 2 LEDs for operational status and good read
- Acoustic indicator: Beeper, switchable
- Shock resistance: 25 drops from 1.8 m height on concrete
- Operating temperature range: -10 °C to +50 °C
- Storage temperature range: -40 °C to +70 °C
- Permissible relative humidity: up to 95%, non-condensing
- Ambient light immunity: 100,000 lx
- Dimensions (H x L x W): 157mm x 98mm x 71mm
- Weight: 0.157 kg
Key Features
- Standard Range scanning capability
- Cable connection variant design
- Visible red LED light source at 630 nm
- Reading distance from 20 mm to 850 mm
- Scanning frequency up to 500 Hz
- High code resolution of at least 0.076 mm
- Supports a wide range of 1D and stacked barcode types
- USB interface with keyboard wedge and COM-Port emulation
- Optical and acoustic indicators for operational status and good reads
- Shock resistant to 25 drops from 1.8 m height on concrete
- Wide ambient operating temperature range from -10 °C to +50 °C
- IP52 rated enclosure for dust and water protection
Professional Installation Requirements
- Installation and setup should be performed by qualified personnel familiar with USB device integration and barcode scanning systems.
Applications
- Standard barcode scanning applications in industrial and commercial environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with 5 V DC supply voltage
- Durable design reduces replacement frequency and electronic waste
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The SICK IDM140-411S USB Kit is available for immediate purchase, ideal for industrial and commercial barcode scanning applications.
