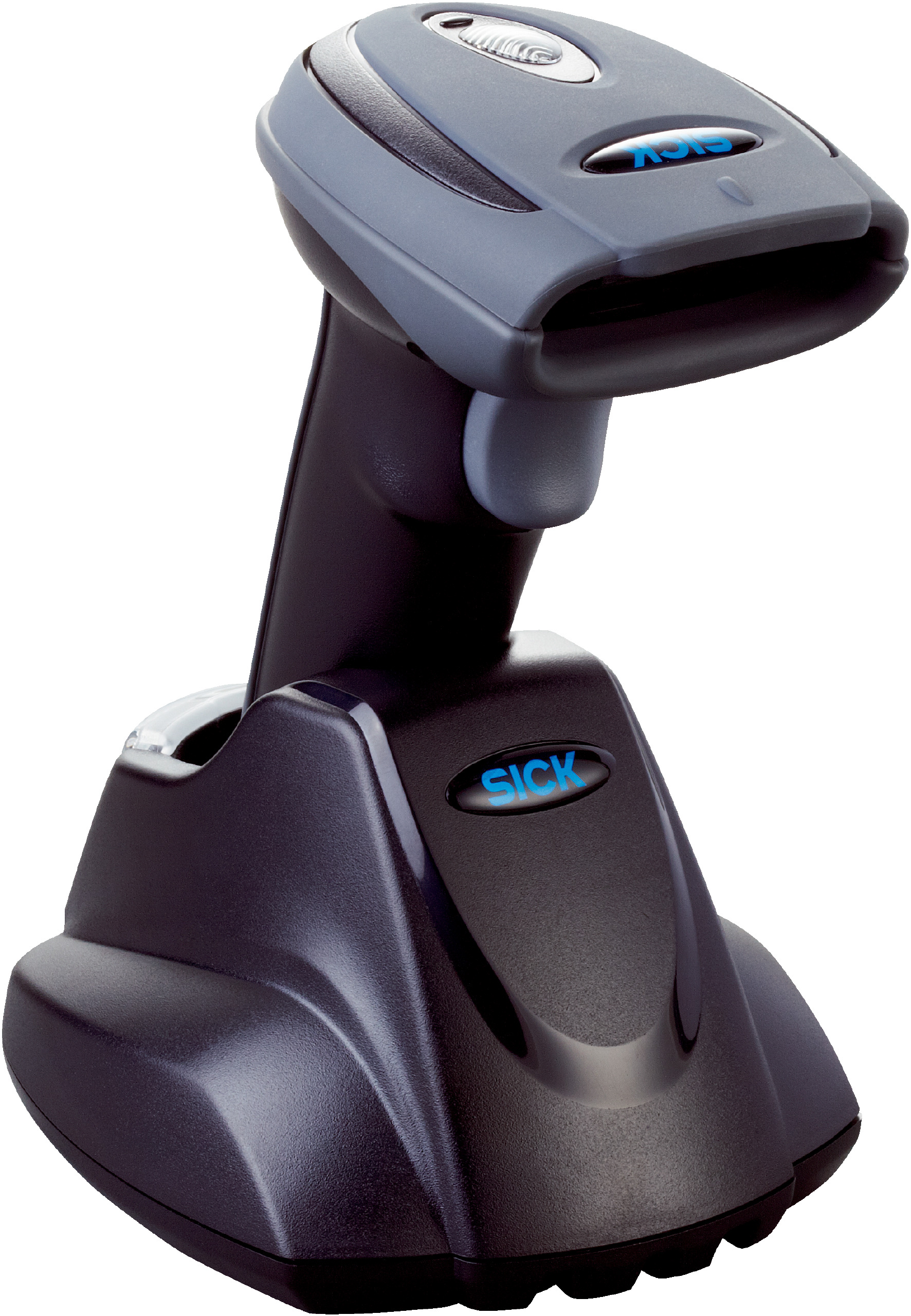

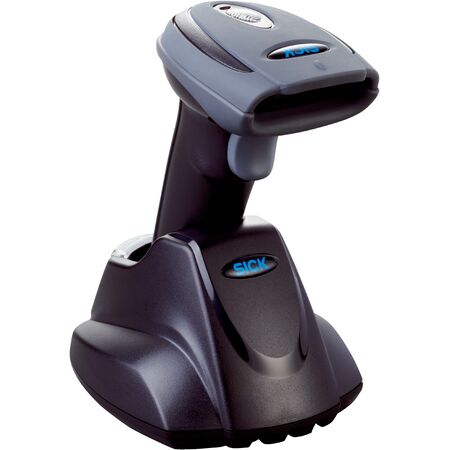

IDM141-411S RS-232 Kit | Wireless Barcode Scanner | 20mm to 850mm Reading Distance | IP52 Rated | by SICK
The IDM141-411S RS-232 Kit is a wireless barcode scanner designed for efficient data capture in industrial environments. With a reading distance of 20mm to 850mm and a scanning frequency of up to 500 Hz, it supports a wide range of 1D and stacked barcode types. Ideal for logistics and manufacturing applications, this scanner features an IP52 rated enclosure for dust and water resistance, ensuring reliable performance in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: LED, Visible, Red, 630 nm
- Reading distance: 20 mm to 850 mm
- Scanning frequency: ≤ 500 Hz
- Code resolution: ≥ 0.076 mm
- Supply voltage: 3.7 V DC to 5 V
- Current consumption: Operation 180 mA, Standby 80 mA
- Enclosure rating: IP52
- Weight: 230 g including rechargeable battery
- Dimensions (L x W x H): 97.8 mm x 70.5 mm x 156.2 mm
- Readable code structures: 1D codes, Stacked
- Supported barcode types: Code 39, Code 128, GS1-128, Codabar, UPC/EAN, MSI/Plessey, Australian Post, and many more
- Stacked code types: PDF417, MicroPDF417, Composite Code
- Battery power: Over 60,000 scans per full charge
- Code buffer: 80,000 codes (EAN)
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherCAT®, Serial RS-232 TTL, PROFIBUS DP, Bluetooth V4.0
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: 25 drops from 1.8 m on concrete
- Ambient light immunity: 100,000 lx
- Dimensions (H x L x W): 156.2mm x 97.8mm x 70.5mm
- Weight: 0.23 kg
Key Features
- Wireless variant with LED visible red light source at 630 nm
- Reading distance from 20 mm to 850 mm
- Scanning frequency up to 500 Hz
- Supports a wide range of 1D and stacked barcode types
- Battery supports over 60,000 scans per full charge
- Wireless operating range up to 100 m (free view)
- Batch function for expanding wireless radius
- Up to seven scanners can communicate with one base station
- IP52 rated enclosure for dust and water resistance
- Shock resistant to 25 drops from 1.8 m height on concrete
Professional Installation Requirements
- Professional installation recommended to ensure proper setup of wireless communication and integration with existing systems.
Applications
- Standard barcode scanning applications
- Wireless scanning in industrial environments
- Data capture for logistics and manufacturing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Wireless operation reduces the need for extensive cabling and associated material waste
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now
The SICK IDM141-411S RS-232 Kit is available for immediate purchase, ideal for industrial and logistics applications requiring reliable wireless barcode scanning.
