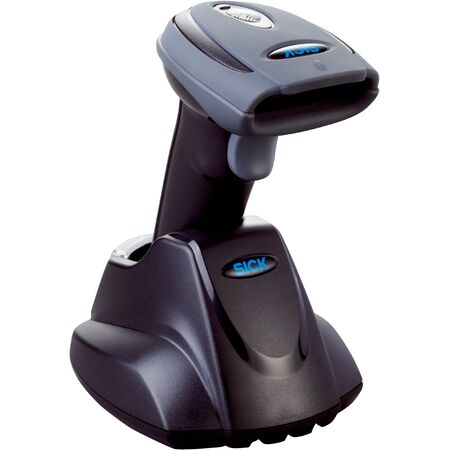

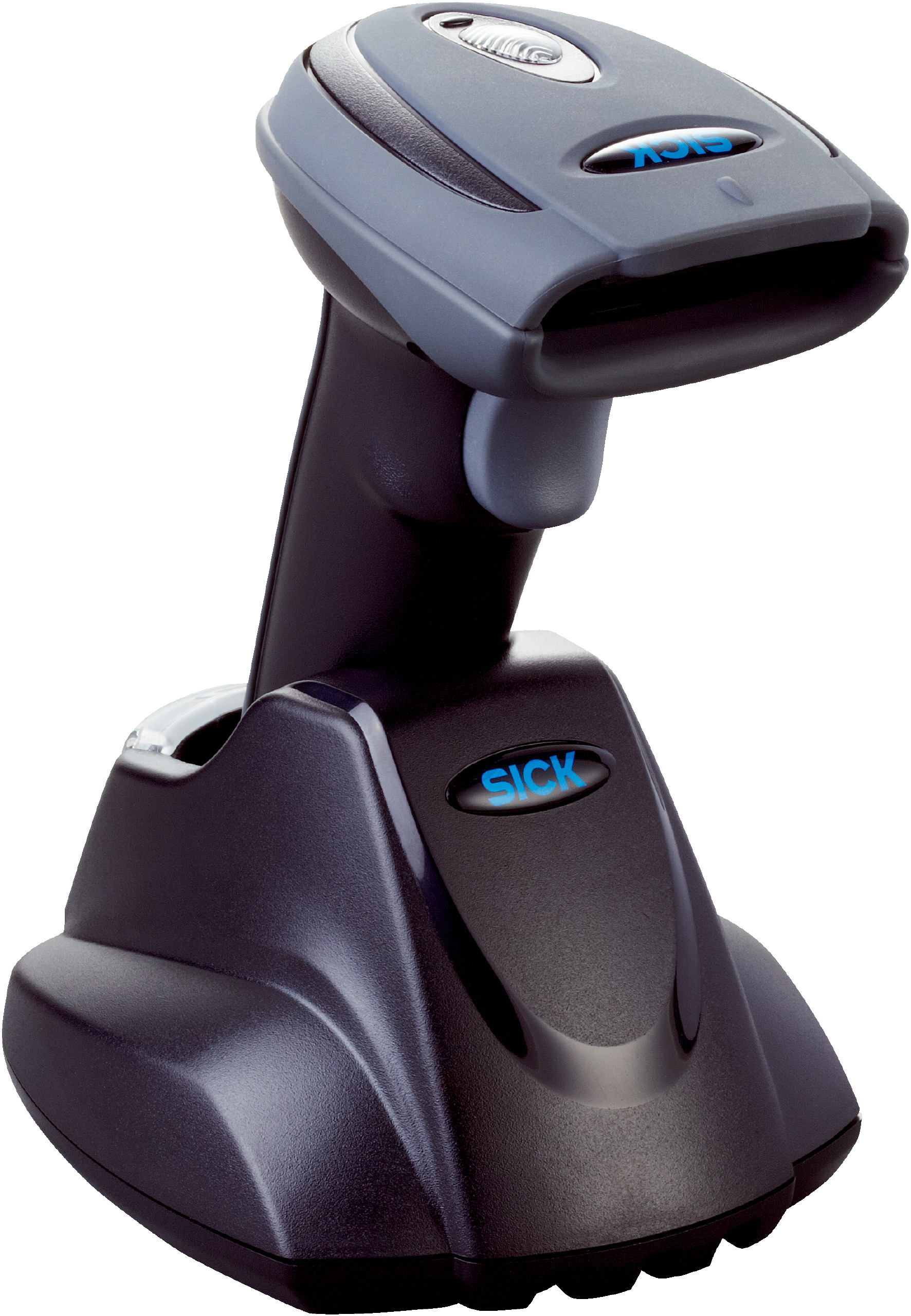

IDM141E-411S USB Kit | Wireless Barcode Scanner | UltraCap™ Batteryless Design | IP52 Rated | by SICK
The IDM141E-411S USB Kit is a wireless barcode scanner designed for mobile handheld scanning in industrial and commercial environments. Featuring a cable-free UltraCap™ supercapacitor for batteryless operation, it offers a reading distance of 20 mm to 850 mm and a high scanning frequency of up to 500 Hz. With IP52 rating for dust and water protection, this scanner is perfect for logistics, warehousing, and retail applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: LED, Visible, Red, 630 nm
- Reading distance: 20 mm to 850 mm
- Scanning frequency: ≤ 500 Hz
- Code resolution: ≥ 0.076 mm
- Supply voltage: 3.7 V DC to 5 V
- Current consumption: Operation 180 mA, Standby 80 mA
- Enclosure rating: IP52
- Weight: 230 g including rechargeable battery
- Readable code structures: 1D codes, Stacked
- Battery power: Over 60,000 scans with full battery
- Code buffer: 80,000 Codes (EAN)
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherCAT®, PROFIBUS DP, USB, Bluetooth V4.0
- Shock resistance: 25 drops from 1.8 m height on concrete
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Relative humidity: up to 95%, non-condensing
- Ambient light immunity: 100,000 lx
- Dimensions (H x L x W): 98mm x 156mm x 71mm
- Weight: 0.23 kg
Key Features
- Cable-free design with UltraCap™ supercapacitor for batteryless voltage supply
- Long service life reducing operating costs and electronic waste
- Wireless variant with up to 100 m operating range (free view)
- Supports multiple interfaces including Ethernet, PROFINET, EtherCAT®, PROFIBUS DP, USB, Bluetooth
- Reads 1D and stacked barcodes including Code 39, GS1 DataBar, PDF417, MicroPDF417
- High scanning frequency up to 500 Hz and reading distance from 20 mm to 850 mm
- Shock resistant to 25 drops from 1.8 m height on concrete
- IP52 rated housing for dust and water protection
- Optical and acoustic indicators for good read, battery charge, and radio status
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup and integration with existing systems.
Applications
- Standard application for mobile handheld scanning
- Wireless barcode scanning in industrial and commercial environments
- Use in logistics, warehousing, and retail for 1D and stacked code reading
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- UltraCap™ supercapacitor reduces electronic waste compared to battery-operated devices
- Long service life lowers operating costs and environmental impact
- Non-hazardous for shipping, minimizing environmental risks
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for specific warranty terms.
Available Now
The SICK IDM141E-411S USB Kit is available for immediate purchase, ideal for wireless barcode scanning applications in industrial and commercial environments.
