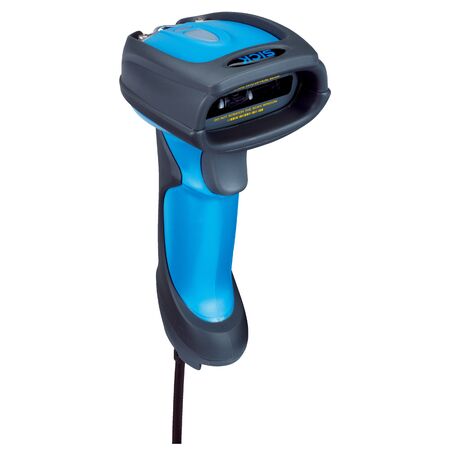

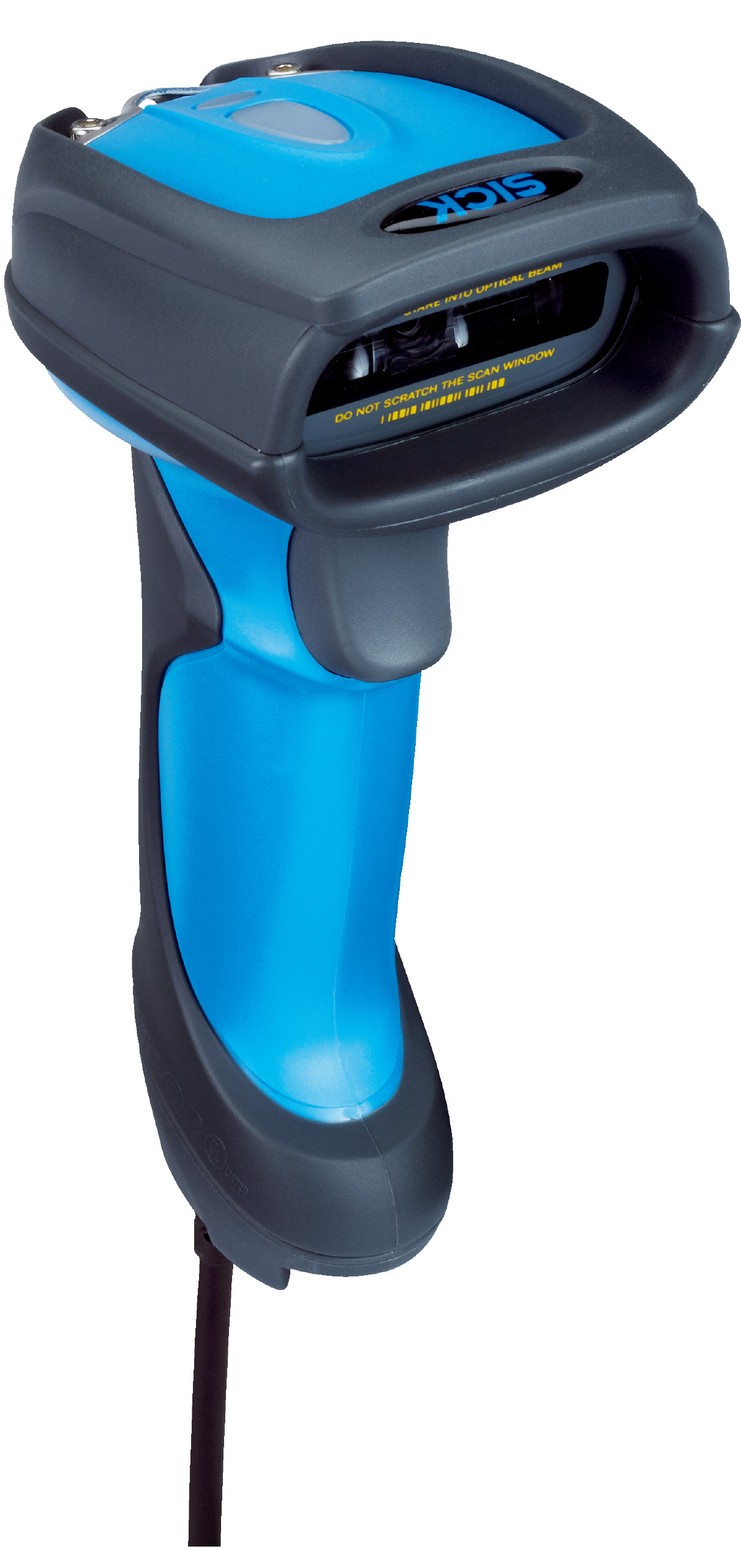

IDM160-411S RS-232 Kit | IP65 Rated | 20mm to 850mm Reading Distance | 500 Hz Scanning Frequency | by SICK
The IDM160-411S RS-232 Kit is designed for industrial barcode scanning, featuring an impressive reading distance of 20mm to 850mm and a scanning frequency of up to 500 Hz. With its IP65 rated enclosure, this scanner is built to withstand harsh environments, making it ideal for various industrial applications. Its visible red LED light source ensures accurate readings, while multiple interface options provide versatile connectivity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 5 V DC, ±10%
- Current consumption: 230 mA (operation vibration activated), 180 mA (operation vibration deactivated), 80 mA (standby)
- Light source: Visible red LED, 630 nm
- Reading distance: 20 mm to 850 mm
- Scanning frequency: ≤ 500 Hz
- Code resolution: ≥ 0.076 mm
- Readable code structures: 1D codes and stacked codes
- Supported bar code types: Code 39, Code 128, GS1-128, Codabar, Code 11, Code 93, GS1 DataBar, Interleaved 2 of 5, UPC/EAN, Telepen, MSI/Plessey, Australian Post, and more
- Stacked code types: PDF417, MicroPDF417, Composite Code
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherCAT, RS-232 TTL, PROFIBUS DP
- Indicators: 2 LEDs for operational status and good read, beeper (switchable), vibration feedback
- Shock resistance: 50 drops from 2 m height on concrete
- Operating temperature: -10°C to +50°C
- Storage temperature: -40°C to +70°C
- Relative humidity: up to 95%, non-condensing
- Ambient light immunity: 100,000 lx
- Dimensions (H x L x W): 176mm x 104mm x 76mm
- Weight: 0.208 kg
Key Features
- Standard Range version with cable connection variant
- Visible red LED light source at 630 nm
- Reading distance from 20 mm to 850 mm
- Scanning frequency up to 500 Hz
- High code resolution of at least 0.076 mm
- IP65 rated enclosure for dust and water protection
- Supports a wide range of 1D and stacked barcode types
- Multiple interface options including Ethernet, PROFINET, EtherCAT, RS-232 TTL, and PROFIBUS DP
- Optical and acoustic indicators with vibration feedback
- Shock resistant to 50 drops from 2 m height on concrete
- Operates in ambient temperatures from -10°C to +50°C
Professional Installation Requirements
- Professional installation recommended to ensure proper integration with industrial systems and compliance with electrical standards.
Applications
- Industrial application for barcode scanning and code reading
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP65 housing reduces need for frequent replacements
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK IDM160-411S RS-232 Kit is available for immediate purchase, ideal for industrial barcode scanning applications requiring robust and versatile code reading solutions.
