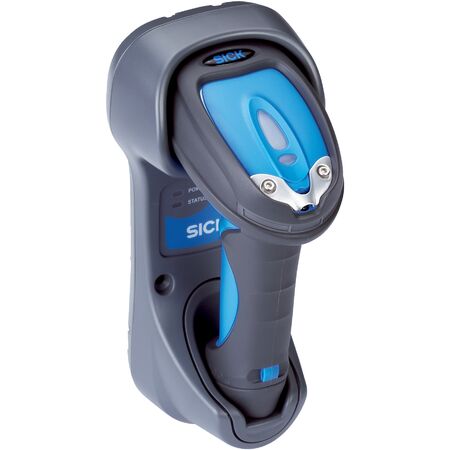

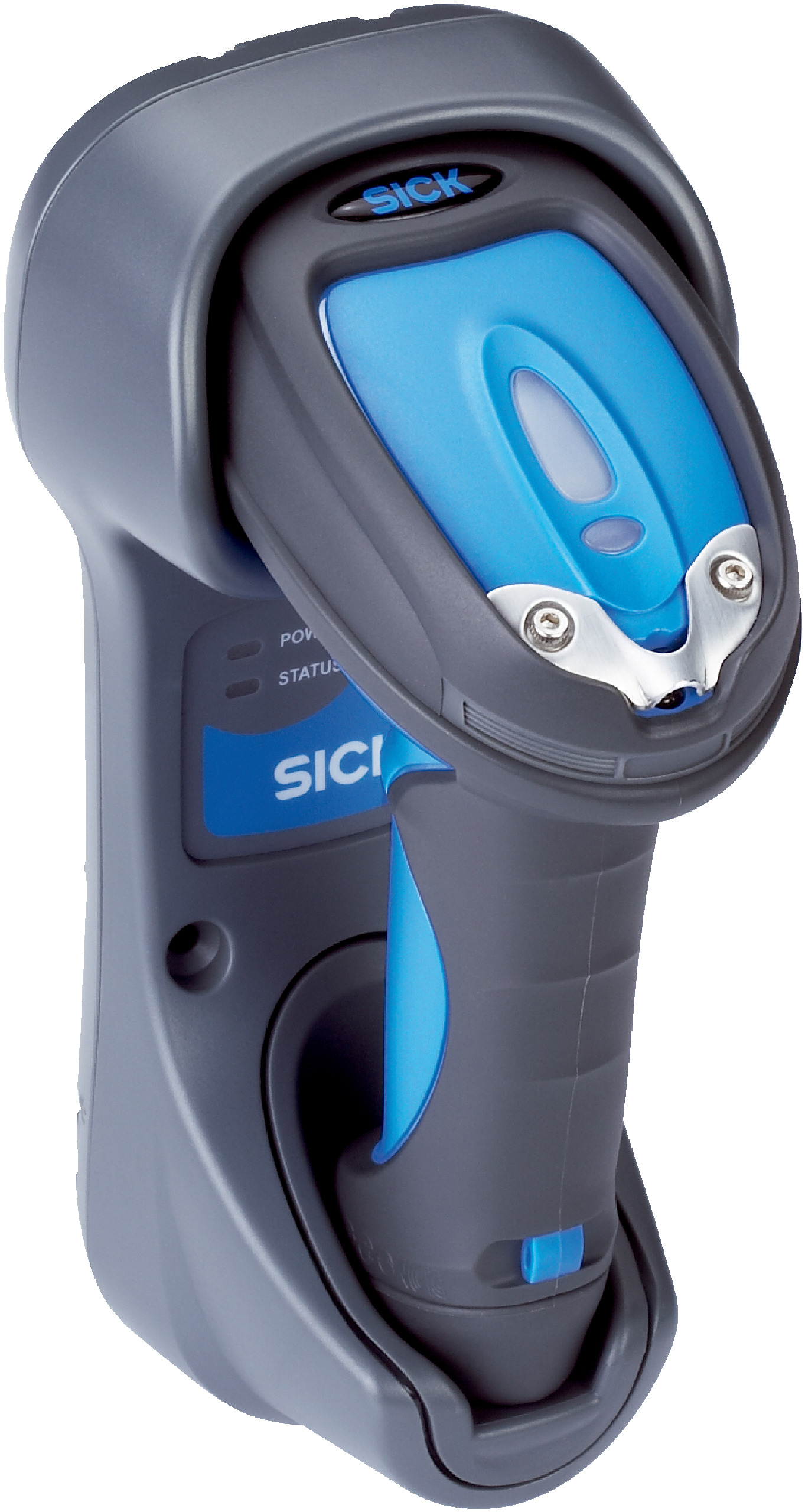

IDM161-411S RS-232 Kit | Wireless Barcode Scanner | Bluetooth V4.0 | IP65 Rated | by SICK
The IDM161-411S RS-232 Kit is a wireless barcode scanner designed for industrial applications, featuring Bluetooth V4.0 with a range of up to 100 m. With a high scanning frequency of 500 Hz and the ability to read 1D and stacked barcodes, it’s perfect for logistics and manufacturing environments. Its IP65 rated housing ensures durability against dust and water, making it a reliable choice for demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: Visible red LED, 630 nm
- Reading distance: 20 mm to 850 mm
- Scanning frequency: ≤ 500 Hz
- Code resolution: ≥ 0.076 mm
- Supply voltage: 3.7 V DC
- Current consumption: 180 mA operation, 80 mA standby
- Enclosure rating: IP65
- Weight: 220 g including rechargeable battery
- Readable code structures: 1D codes and stacked codes
- Battery power: Over 60,000 scans per full charge
- Code buffer: 80,000 codes (EAN)
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherCAT, PROFIBUS DP, RS-232 TTL, Bluetooth V4.0
- Shock resistance: 50 drops from 2 m height on concrete
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Relative humidity: up to 95%, non-condensing
- Ambient light immunity: 100,000 lx
- Dimensions (H x L x W): 176mm x 104mm x 76mm
- Weight: 0.22 kg
Key Features
- Wireless variant with Bluetooth V4.0 and up to 100 m operating range
- Reads 1D and stacked barcodes including Code 39, GS1-128, PDF417, and more
- High scanning frequency up to 500 Hz with code resolution ≥ 0.076 mm
- IP65 rated housing for dust and water resistance
- Battery supports over 60,000 scans per full charge
- Multiple interface options including Ethernet, PROFINET, EtherCAT, PROFIBUS DP, RS-232 TTL
Professional Installation Requirements
- Professional installation recommended for integration with industrial networks and power supply connections.
Applications
- Industrial applications requiring wireless barcode scanning
- Warehouse and logistics for barcode reading
- Manufacturing for code verification and tracking
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Wireless operation reduces cable waste and installation impact
- Long battery life minimizes frequent charging and energy consumption
- Durable IP65 housing extends product lifespan reducing replacement waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK IDM161-411S RS-232 Kit is available now for immediate purchase. Ideal for industrial and logistics environments requiring reliable wireless barcode scanning.
