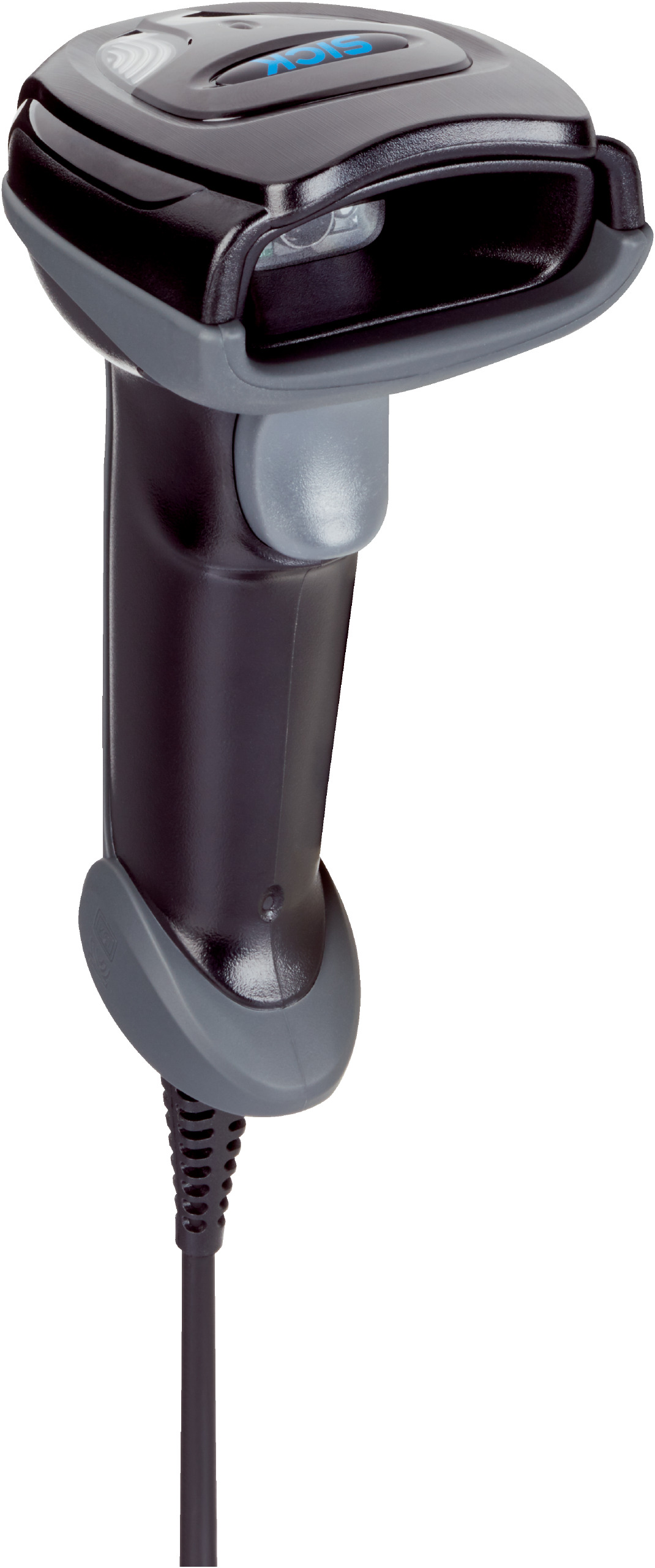

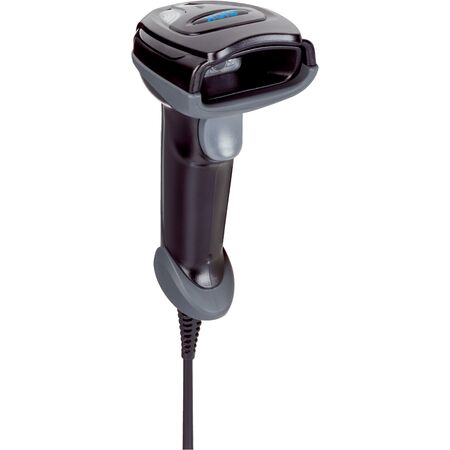

IDM240-411S RS-232 Kit | 1280 px x 800 px Resolution | IP52 Enclosure | Shock Resistant | by SICK
The IDM240-411S RS-232 Kit is designed for industrial barcode scanning, featuring a high sensor resolution of 1280 px x 800 px and a robust IP52 enclosure. With a reading distance of 30 mm to 400 mm, it supports a wide range of 1D and 2D barcode types, making it ideal for manufacturing and logistics applications. Its durable design ensures longevity and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1280 px x 800 px
- Light source: LED, visible red, 660 nm
- Alignment aid: LED, green, 660 nm
- Reading distance: 30 mm to 400 mm
- Code resolution: ≥ 0.07 mm and ≥ 0.13 mm
- Supply voltage: 5 V DC ± 10%
- Current consumption: 395 mA operation, 220 mA standby
- Enclosure rating: IP52
- Weight: 152 g without cable
- MTBF: 100,000 hours
- Readable code structures: 1D, 2D, Stacked codes
- Supported barcode types: Code 39, Code 128, GS1-128, Codabar, Data Matrix, QR code, PDF417, and more
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherCAT, PROFIBUS DP, Serial RS-232
- Indicators: 2 LEDs for status, beeper (switchable)
- Shock resistance: 25 drops from 1.8 m on concrete
- Operating temperature: -10°C to +50°C
- Storage temperature: -40°C to +70°C
- Relative humidity: 95% non-condensing
- Ambient light immunity: 100,000 lx
- Dimensions (H x L x W): 161.7mm x 95mm x 70.5mm
- Weight: 0.152 kg
Key Features
- High sensor resolution of 1280 px x 800 px
- Visible red LED light source at 660 nm with green LED alignment aid
- Reading distance from 30 mm to 400 mm
- Supports a wide range of 1D, 2D, and stacked barcode types
- Robust design with IP52 enclosure rating and shock resistance from 25 drops at 1.8 m
- Multiple interface options including Ethernet, PROFINET, EtherCAT, PROFIBUS DP, and RS-232
- Optical and acoustic indicators for operational status and good reads
- Configuration via IDM Setup Tool software
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration with industrial systems and compliance with electrical standards.
Applications
- Standard industrial barcode scanning applications
- Reading 1D, 2D, and stacked codes in manufacturing and logistics
- Integration with Ethernet, PROFINET, EtherCAT, PROFIBUS DP, and RS-232 interfaces
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption with 5 V DC supply and efficient operation
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now
The SICK IDM240-411S RS-232 Kit is available for immediate purchase, ideal for industrial barcode scanning applications requiring robust and versatile code reading capabilities.
