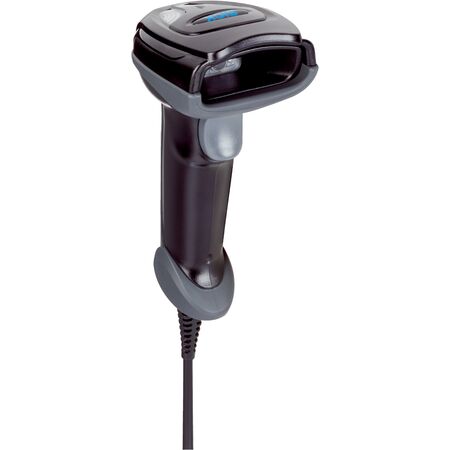

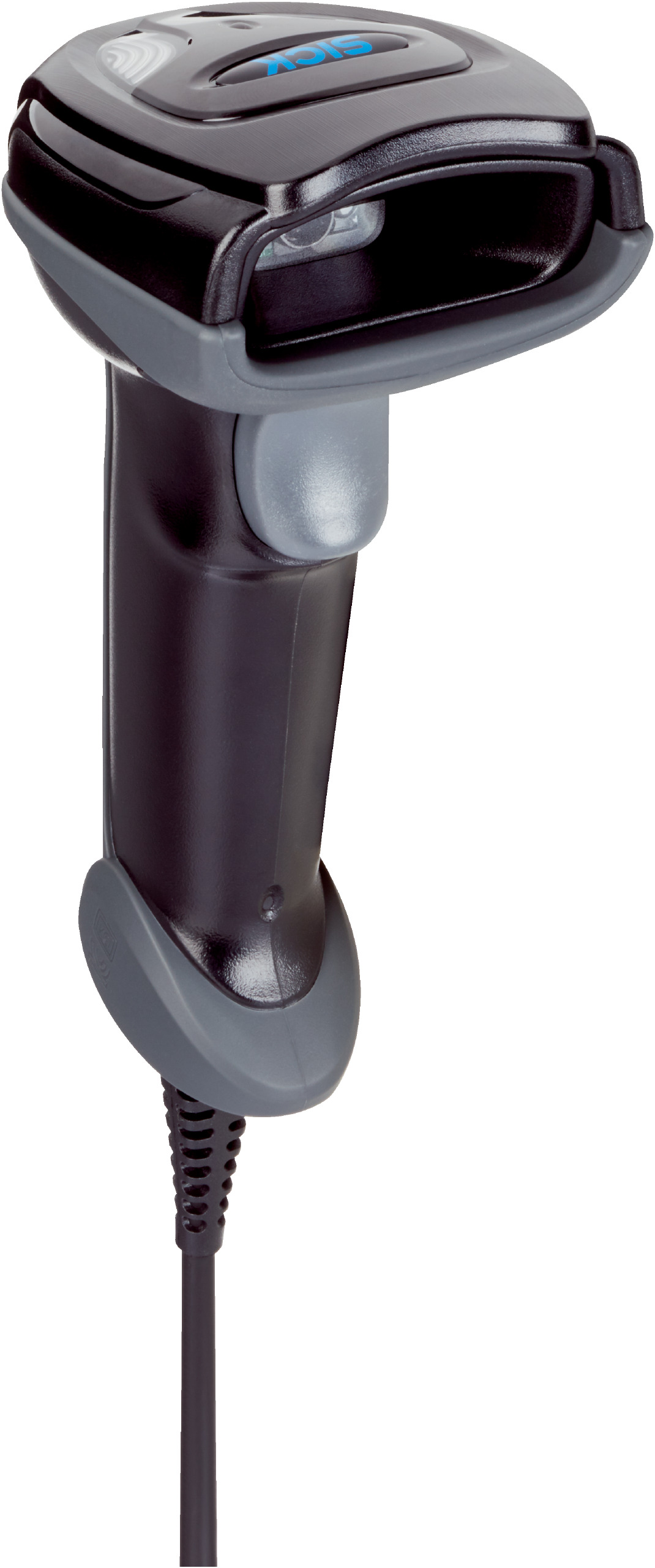

IDM240-411S USB Kit | 1280 px x 800 px Resolution | IP52 Rated | USB Interface | by SICK
The IDM240-411S USB Kit is designed for precise barcode scanning with a high sensor resolution of 1280 px x 800 px and a reading distance of 30 mm to 400 mm. Ideal for industrial and commercial applications, it supports a wide range of 1D, 2D, and stacked barcodes. With its robust IP52 enclosure and shock resistance, this scanner ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1280 px x 800 px
- Light source: LED, visible red, 660 nm
- Alignment aid: LED, green, 660 nm
- Reading distance: 30 mm to 400 mm
- Code resolution: ≥ 0.07 mm and ≥ 0.13 mm
- Supply voltage: 5 V DC, ±10%
- Current consumption: 395 mA operation, 220 mA standby
- Enclosure rating: IP52
- Weight: 152 g without cable
- MTBF: 100,000 hours
- Readable code structures: 1D, 2D, stacked codes
- Interfaces: USB with keyboard wedge and COM-Port emulation
- Optical indicators: 2 LEDs for operational status and good read
- Acoustic indicators: Beeper, switchable
- Shock resistance: 25 drops from 1.8 m on concrete
- Operating temperature: -10°C to +50°C
- Storage temperature: -40°C to +70°C
- Relative humidity: 95%, non-condensing
- Ambient light immunity: 100,000 lx
- Dimensions (H x L x W): 161.7mm x 95mm x 70.5mm
- Weight: 0.152 kg
Key Features
- High sensor resolution of 1280 px x 800 px for precise scanning
- LED visible red light source at 660 nm with green alignment aid
- Reading distance from 30 mm to 400 mm
- Supports a wide range of 1D, 2D, and stacked barcode types
- USB interface with keyboard wedge and COM-Port emulation
- Robust design with IP52 enclosure rating and shock resistance from 25 drops at 1.8 m
- Operational temperature range from -10°C to +50°C
- Configuration via IDM Setup Tool software
Professional Installation Requirements
- Professional installation is recommended to ensure proper USB interface integration and optimal scanner performance.
Applications
- Standard barcode scanning applications in industrial and commercial environments
- Reading 1D, 2D, and stacked barcodes for inventory and logistics
- Integration with USB interface systems for data capture
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IDM240-411S USB Kit is available for immediate purchase, ideal for industrial and commercial barcode scanning applications.
