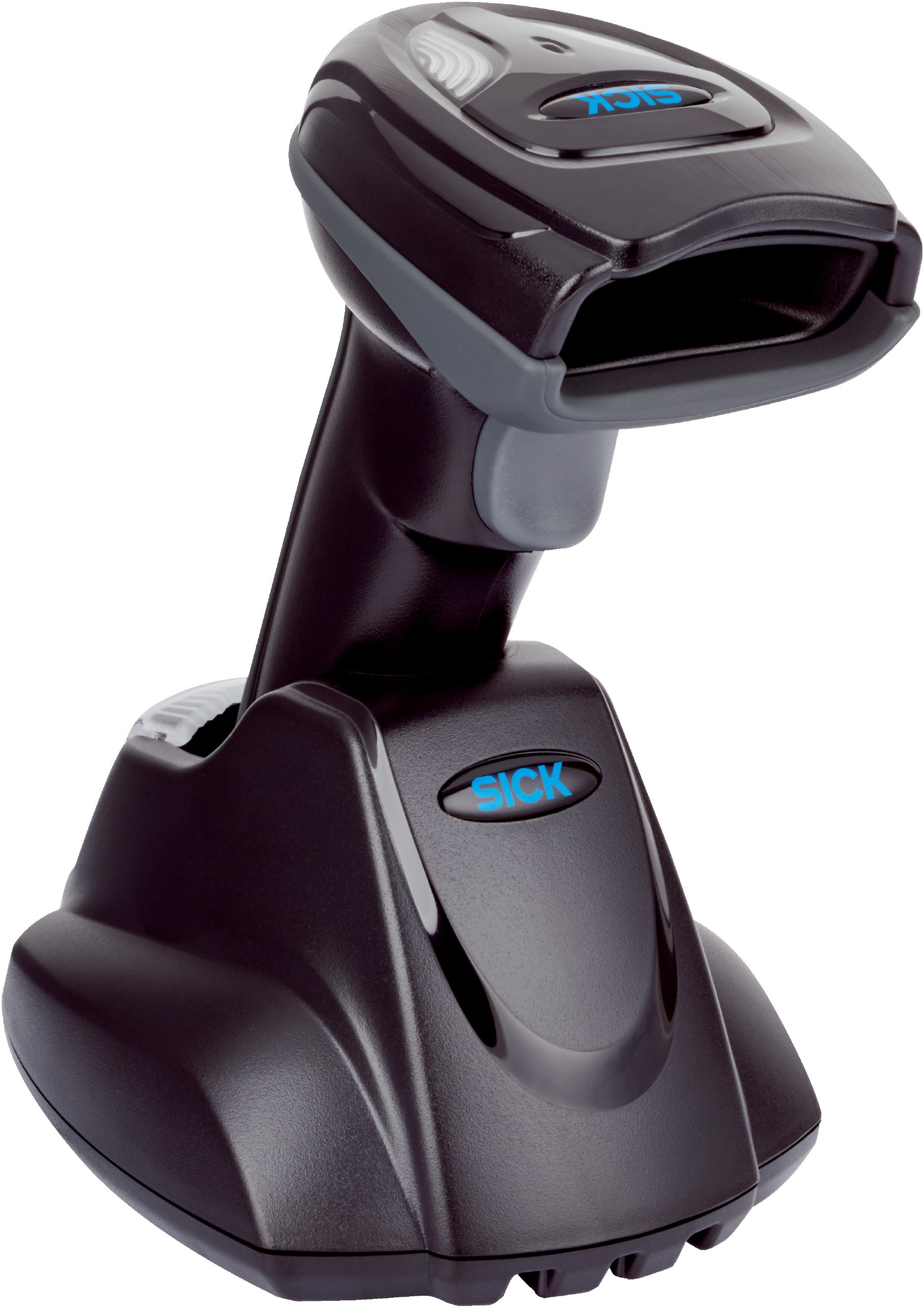

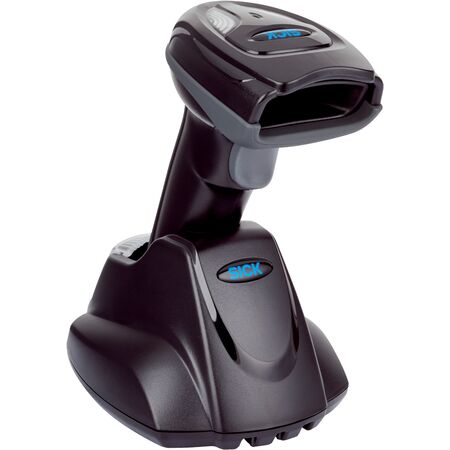

IDM241-411S RS-232 Kit | Wireless Barcode Scanner | 1280 px x 800 px Resolution | IP52 Rated | by SICK
The IDM241-411S RS-232 Kit is a wireless barcode scanner designed for industrial and logistics applications. With a high sensor resolution of 1280 px x 800 px and a reading distance of 30 mm to 400 mm, it ensures accurate scanning of 1D, 2D, and stacked barcodes. Its robust IP52 enclosure and Bluetooth V4.0 connectivity make it ideal for environments requiring reliable wireless communication and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1280 px x 800 px
- Light source: LED, visible red, 660 nm
- Alignment aid: LED, green, 660 nm
- Reading distance: 30 mm to 400 mm
- Scanning frequency: 60 Hz
- Code resolution: ≥ 0.07 mm and ≥ 0.13 mm
- Supply voltage: 5 V DC ± 5%
- Current consumption: 750 mA operation, 175 mA standby
- Enclosure rating: IP52
- Weight: 230 g without cable
- MTBF: 100,000 hours
- Readable codes: 1D, 2D, stacked codes including Code 39, QR, Data Matrix, PDF417
- Battery: Over 60,000 scans per full charge
- Code buffer: 5,000 codes batch mode, 100,000 codes out of range
- Interfaces: RS-232, Ethernet, PROFINET, EtherCAT, PROFIBUS DP, Bluetooth V4.0
- Shock resistance: 25 drops from 1.8 m on concrete
- Operating temperature: -10°C to +50°C
- Storage temperature: -40°C to +70°C
- Relative humidity: 95% non-condensing
- Ambient light immunity: 100,000 lx
- Dimensions (H x L x W): 160mm x 94mm x 71mm
- Weight: 0.23 kg
Key Features
- Wireless variant with Bluetooth TM V4.0 and up to 100 m operating range
- High sensor resolution of 1280 px x 800 px
- Reads 1D, 2D, and stacked barcodes including QR, Data Matrix, PDF417
- LED visible red light source (660 nm) with green alignment aid
- Scanning frequency of 60 Hz and reading distance from 30 mm to 400 mm
- Battery supports over 60,000 scans per full charge
- Code buffer stores up to 5,000 codes for batch mode and 100,000 for out of range scanning
- Robust design with IP52 enclosure rating and shock resistance from 1.8 m drops
- Multiple interface options including RS-232, Ethernet, PROFINET, EtherCAT, PROFIBUS DP
Professional Installation Requirements
- Professional installation recommended to ensure proper configuration and integration with existing systems, especially for fieldbus modules and network setup.
Applications
- Standard application for wireless barcode scanning
- Industrial and logistics barcode reading
- Batch scanning and wireless communication up to 100 m
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Wireless operation reduces cable waste and installation impact
- Energy-efficient LED light source minimizes power consumption
- Long battery life reduces frequent charging and energy use
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now
The SICK IDM241-411S RS-232 Kit is available for immediate purchase, ideal for industrial and logistics applications requiring wireless barcode scanning.
