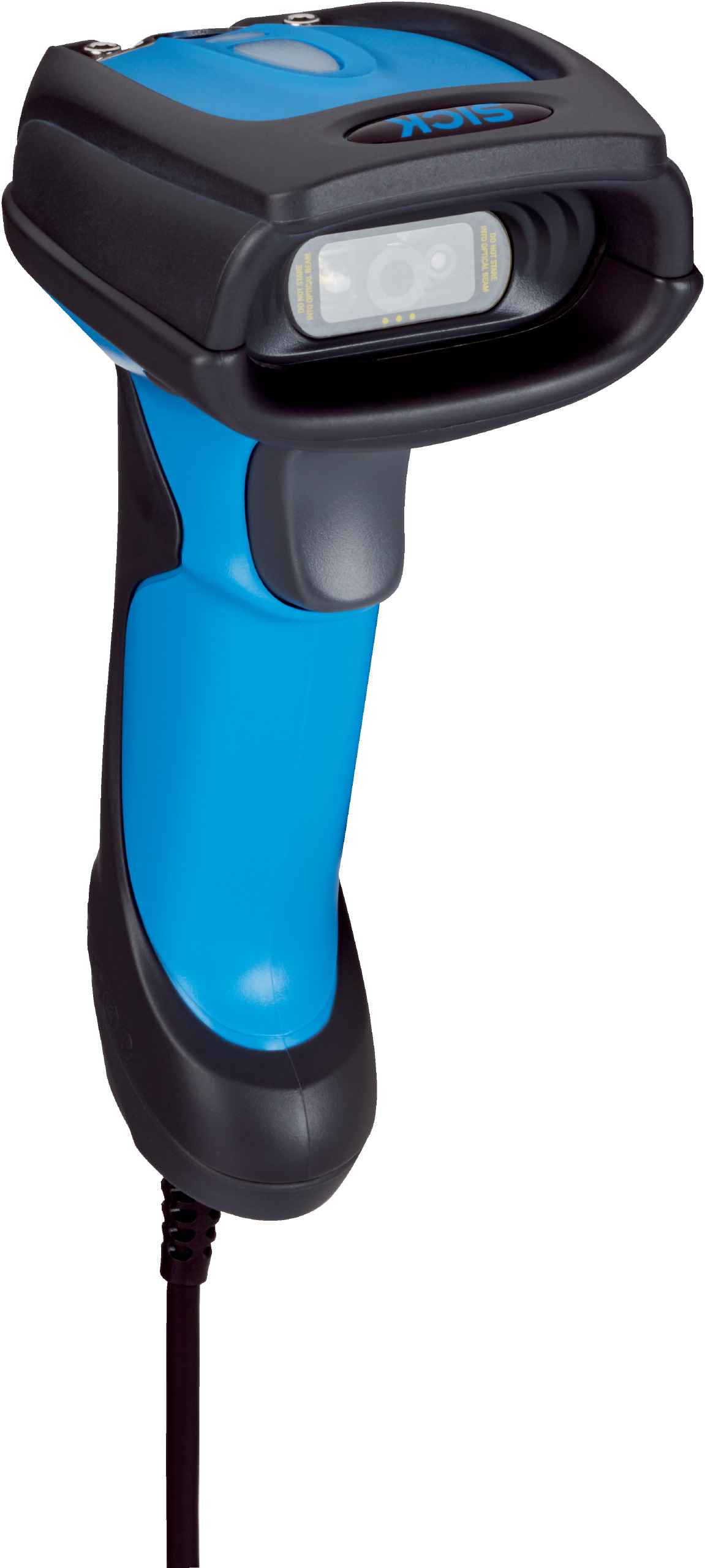

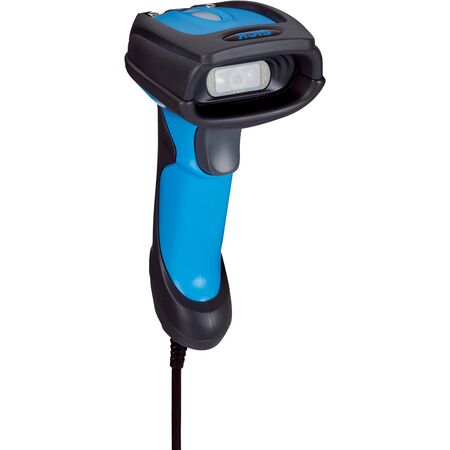

IDM260-411S CDF600 EtherCAT Set | 1280 px x 800 px Resolution | IP65 Rated | by SICK
The IDM260-411S CDF600 EtherCAT Set is designed for industrial barcode reading applications, featuring a high sensor resolution of 1280 px x 800 px and an IP65 rated enclosure for dust and water protection. Ideal for seamless integration into EtherCAT networks, this set ensures reliable and efficient scanning, making it perfect for automation in various industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1280 px x 800 px
- Light source: LED, Visible, Red, 660 nm
- Alignment aid: Laser, Red, 630 nm, Laser class 1 (EN/IEC 60825-1:2014)
- Reading distance: 30 mm to 400 mm
- Code resolution: ≥ 0.07 mm (1D), ≥ 0.13 mm (2D)
- Supply voltage: 5 V DC, ± 10%
- Current consumption: 395 mA (operation, vibration off), 420 mA (operation, vibration on), 220 mA (standby)
- Enclosure rating: IP65
- Weight: 208 g without cable
- Dimensions: 104 mm x 76.3 mm x 176 mm
- MTBF: 100,000 hours
- Readable code structures: 1D, 2D, Stacked
- Supported barcode types: Code 39, Code 128, GS1-128, Codabar, UPC/EAN, QR code, Data Matrix, PDF417, and more
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherCAT, Serial RS-232, PROFIBUS DP (via external modules)
- Indicators: 2 LEDs, beeper, vibration feedback
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Relative humidity: 95%, non-condensing
- Ambient light immunity: 100,000 lx
- Shock resistance: 50 drops from 2 m height on concrete
- Dimensions (H x L x W): 176mm x 104mm x 76mm
- Weight: 0.208 kg
Key Features
- Includes IDM260-411S cable-bound mobile handheld scanner and CDF600 EtherCAT module
- Seamless integration into existing EtherCAT networks
- Cable connection variant scanner design
- High sensor resolution of 1280 px x 800 px
- Visible red LED light source at 660 nm
- Red laser alignment aid at 630 nm, Laser class 1
- Reading distance from 30 mm to 400 mm
- Supports a wide range of 1D, 2D, and stacked barcode types
- IP65 rated enclosure for dust and water protection
- Shock resistant to 50 drops from 2 m height on concrete
- Operating temperature range from -20 °C to +50 °C
- Configuration via IDM Setup Tool
- Optical and acoustic indicators with vibration feedback
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration into EtherCAT networks and compliance with electrical standards.
Applications
- Industrial barcode reading applications requiring reliable and efficient scanning
- Integration into EtherCAT networks for industrial automation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP65 rated housing reduces need for frequent replacements
- Energy-efficient operation with low current consumption
- Supports industrial automation to optimize resource use and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IDM260-411S CDF600 EtherCAT Set is available for immediate purchase, ideal for industrial automation and barcode scanning applications requiring robust and reliable performance.
