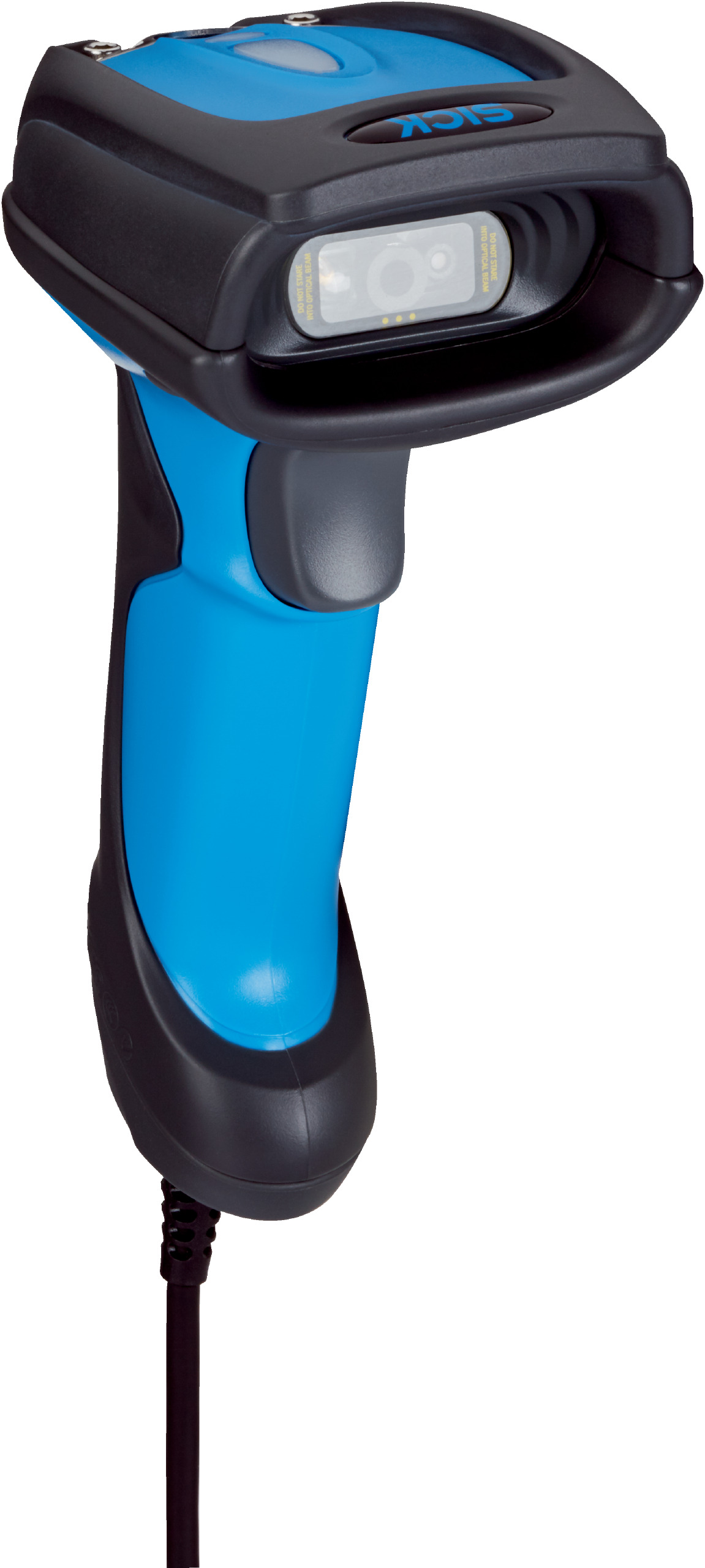

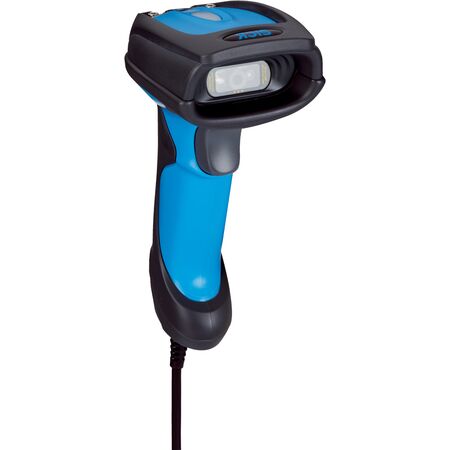

IDM260-411S RS-232 Kit | 1280 px x 800 px Resolution | IP65 Rated | Laser Alignment Aid | by SICK
The IDM260-411S RS-232 Kit is designed for industrial barcode scanning, featuring a high sensor resolution of 1280 px x 800 px and an IP65 rated enclosure for dust and water protection. With a reading distance of 30 mm to 400 mm and support for various barcode types, this scanner is perfect for environments that demand robust and reliable code reading solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1280 px x 800 px
- Light source: LED, Visible, Red, 660 nm
- Alignment aid: Laser, Red, 630 nm, Laser class 1 (EN/IEC 60825-1:2014)
- Reading distance: 30 mm to 400 mm
- Code resolution: ≥ 0.07 mm and ≥ 0.13 mm
- Supply voltage: 5 V DC, ± 10%
- Current consumption: 395 mA (operation vibration deactivated), 420 mA (operation vibration activated), 220 mA (standby)
- Enclosure rating: IP65
- Weight: 208 g without cable
- MTBF: 100,000 hours
- Readable code structures: 1D, 2D, Stacked codes
- Supported barcode types: Code 39, Code 128, GS1-128, Codabar, UPC/EAN, QR code, Data Matrix, PDF417, and more
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherCAT, Serial RS-232, PROFIBUS DP (via external modules)
- Indicators: 2 LEDs for operational status and good read, beeper (switchable)
- Shock resistance: 50 drops from 2 m height on concrete
- Operating temperature: -20°C to +50°C
- Storage temperature: -40°C to +70°C
- Relative humidity: 95%, non-condensing
- Ambient light immunity: 100,000 lx
- Dimensions (H x L x W): 104mm x 176mm x 76mm
- Weight: 0.208 kg
Key Features
- Cable connection variant scanner design
- High sensor resolution of 1280 px x 800 px
- Visible red LED light source at 660 nm
- Laser alignment aid at 630 nm, Laser class 1
- Reading distance from 30 mm to 400 mm
- Supports 1D, 2D, and stacked barcode types
- IP65 rated enclosure for dust and water protection
- Shock resistant to 50 drops from 2 m height on concrete
- Ambient operating temperature range from -20°C to +50°C
- Vibration enabled operation with acoustic and optical indicators
Professional Installation Requirements
- Professional installation recommended to ensure proper connection and configuration using IDM Setup Tool.
Applications
- Industrial applications requiring high-resolution barcode scanning
- Environments needing robust and reliable code reading solutions
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements
- Energy efficient 5 V DC power supply reduces power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK IDM260-411S RS-232 Kit is available for immediate purchase, ideal for industrial barcode scanning applications requiring high accuracy and durability.
