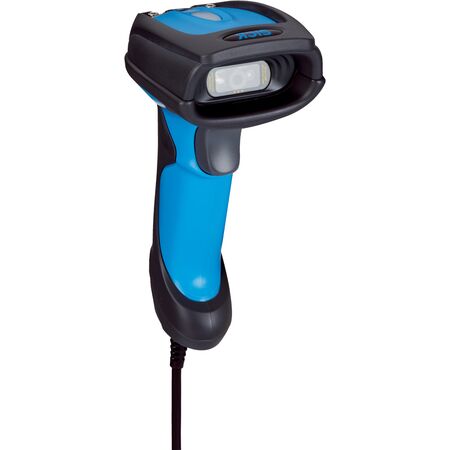

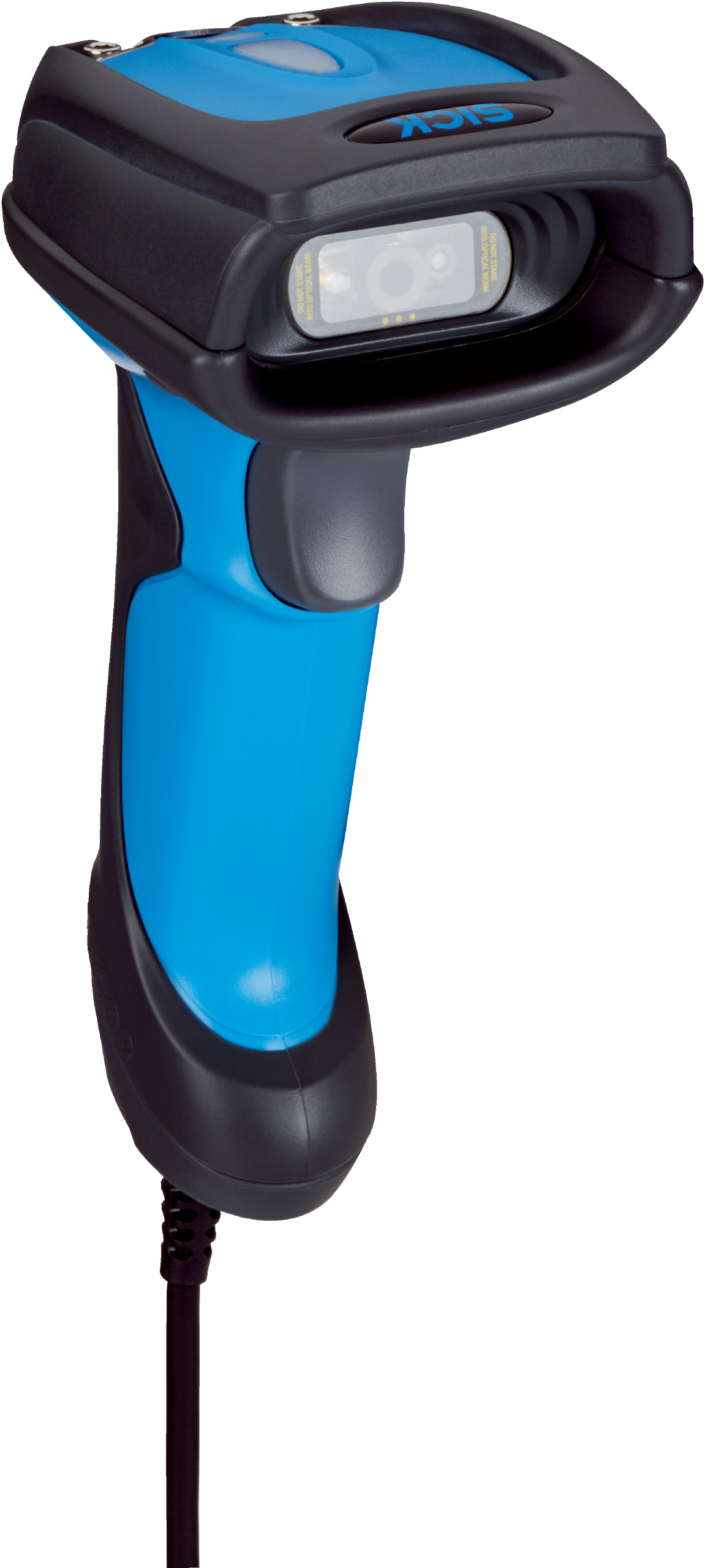

IDM260-411S RS-232 Powersupply Set | 1280 px x 800 px Resolution | IP65 Rated | by SICK
The IDM260-411S RS-232 Powersupply Set is designed for industrial applications requiring reliable barcode reading and stable power supply. With a high sensor resolution of 1280 px x 800 px and an IP65 rated enclosure, it ensures durability and performance in challenging environments. Ideal for cable-bound barcode scanning, this set supports various 1D and 2D barcode types, making it a versatile choice for your operational needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 5 V DC, ±10%
- Current consumption: 395 mA (operation without vibration), 420 mA (operation with vibration), 220 mA (standby)
- Sensor resolution: 1280 px x 800 px
- Light source: LED, visible red, 660 nm
- Alignment aid: Laser, red, 630 nm, Laser class 1 (EN/IEC 60825-1:2014)
- Reading distance: 30 mm to 400 mm
- Code resolution: ≥ 0.07 mm (1D), ≥ 0.13 mm (2D)
- Readable code structures: 1D, 2D, stacked codes
- Barcode types supported: Code 39, Code 128, GS1-128, Codabar, UPC/EAN, MSI/Plessey, Australian Post, and many more
- 2D code types: Data Matrix, MaxiCode, QR code, Aztec, MicroQR-Code, GS1 QR code, GS1 Data-Matrix
- Stacked code types: PDF417, MicroPDF417, Code 49, Code 16K, Composite, Codablock F
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherCAT®, Serial RS-232, PROFIBUS DP (optional via external modules)
- Optical indicators: 2 LEDs for operational status and good read
- Acoustic indicators: Beeper, switchable
- Vibration: Yes
- Enclosure rating: IP65
- Weight: 208 g without cable
- Dimensions: 104 mm x 76.3 mm x 176 mm
- MTBF: 100,000 hours
- Shock resistance: 50 drops from 2 m height on concrete
- Operating temperature: -20°C to +50°C
- Storage temperature: -40°C to +70°C
- Relative humidity: 95%, non-condensing
- Ambient light immunity: 100,000 lx
- Dimensions (H x L x W): 176mm x 104mm x 76mm
- Weight: 0.208 kg
Key Features
- Cable connection variant handheld scanner
- High sensor resolution of 1280 px x 800 px
- Visible red LED light source at 660 nm
- Red laser alignment aid at 630 nm, Laser class 1
- Reading distance from 30 mm to 400 mm
- Supports 1D, 2D, and stacked barcode types
- IP65 rated enclosure for dust and water resistance
- Shock resistant to 50 drops from 2 m height on concrete
- Ambient operating temperature range from -20°C to +50°C
- Vibration feature with acoustic and optical indicators
- Configuration via IDM Setup Tool
Professional Installation Requirements
- Professional installation recommended to ensure proper connection and configuration, especially for integration with industrial networks and power supply setup.
Applications
- Industrial applications requiring reliable cable-bound barcode reading and stable power supply
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Energy-efficient operation with low current consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK IDM260-411S RS-232 Powersupply Set is available for immediate purchase, ideal for industrial barcode scanning applications requiring reliable and stable power supply.
